DC input: 0 V to 10 V

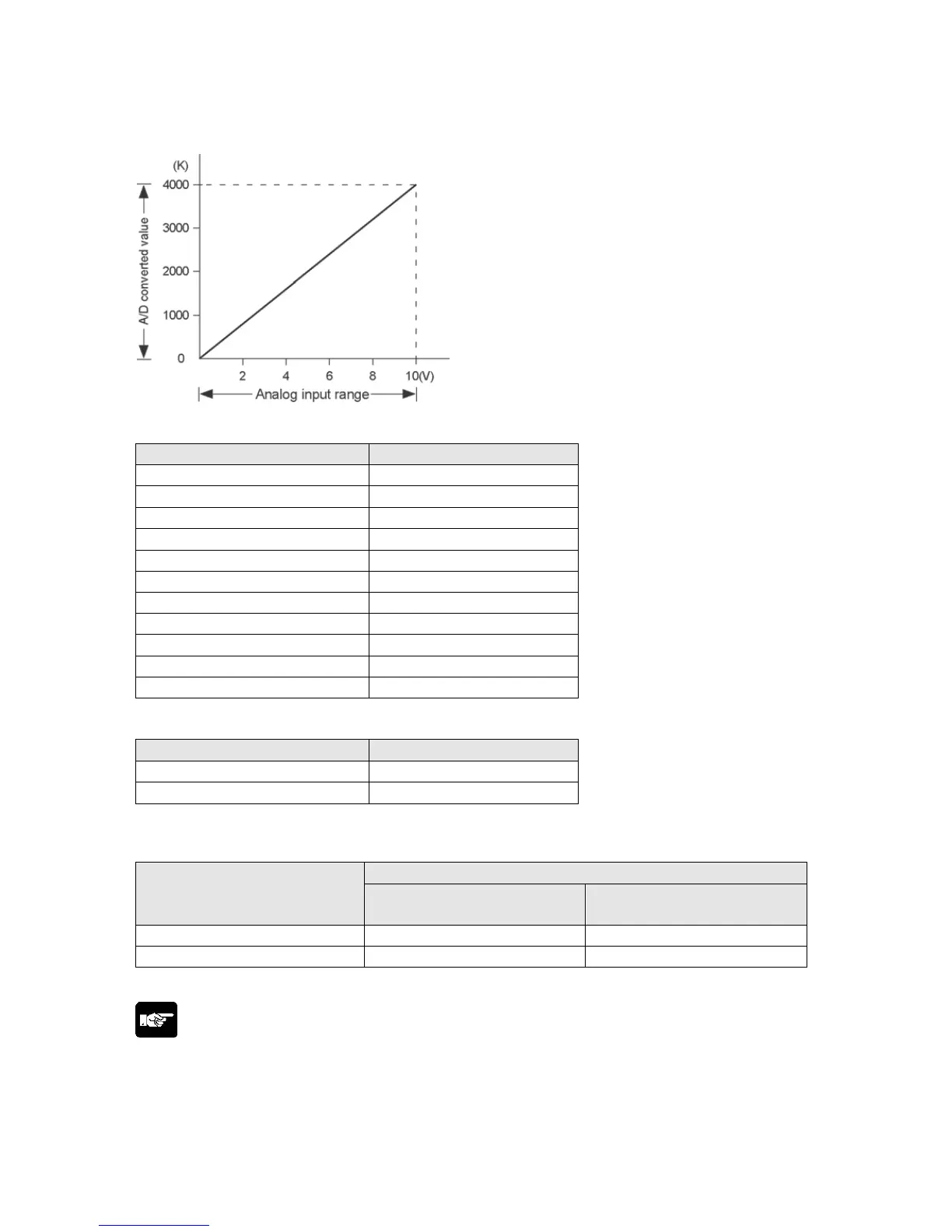

Conversion characteristics graph
Table of A/D converted values
Input voltage (V)
A/D converted value
0.0
0
1.0
400
2.0 800
3.0
1200
4.0 1600
5.0
2000
6.0
2400
7.0
2800
8.0
3200
9.0 3600
10.0
4000
When exceeding the rated range
Input voltage (V)
Converted value
0 V or less (Negative value)
0
10 V or more 4000
Each channel data is allocated as I/O data as shown below.
Analog input cassette
Input channel
Installed slot No.
Cassette mounting part 1
(Slot 0)
Cassette mounting part 2
(Slot 1)
CH0 WX10 WX20
CH1
WX11
WX21
Note:
• Use double-core twisted-pair shielded wires. It is recommended to ground them. However, depending
on the conditions of the external noise, it may be better not to ground the shielding.
• Do not have the analog input wiring close to AC wires, power wires, or load.
