1.1 Features and Functions of the Unit
Features
• Compact size general-purpose PLC that is suitable for the small-scale facility control.
• Can be directly connected to a personal computer using USB communication port.
• High dimensional security functions to deal with copying programs.
• Supports analog control.
• Following items are provided as options,
- Application cassettes, such as the positioning control function by the high-speed counter and
pulse output.
- Fulfilling communication cassettes.
- Realtime clock function.
Basic functions as compact size general-purpose PLC suitable for the small-scale facility control
Basic functions including the followings are equipped even though it is a general-purpose style such as
AC power supply, screw terminal block and relay output.
1. 32k-step program capacity
2. 0.32 µs command processing speed
3. Max. 382-points I/O control
Single-phase 8-channel and 2-phase 4 channel high-speed counter functions are equipped for
the control unit.
Fulfilling function enhancement
Various add-on cassettes are available as options (such as 10 types of application cassettes and
6 types of communication cassette).
• Application cassettes
DC 8-point input type, transistor 8-point NPN output type, transistor 6-point PNP output type, DC 4-point
input + transistor 3-point NPN output type, analog 2-ch output type, analog 2-ch input + analog 1-ch
output type, thermocouple 2-ch type, RTD 2-ch type, analog 2-ch input type, high-speed counter input +
pulse output type, master memory type with realtime clock (32k-step program can be copied and stored.)
• Communication cassettes
1-ch RS232C type, 2-ch RS232C type, 1-ch RS485/RS422 changeover type, 1-ch RS232C + 1-ch
RS485 type, Ethernet + 1-ch RS232C type, 2-ch RS485 type
FP0 expansion units can be connected as well as the exclusive expansion unit.
A maximum of 3 FP0 expansion units can be connected using the expansion FP0 adapter.

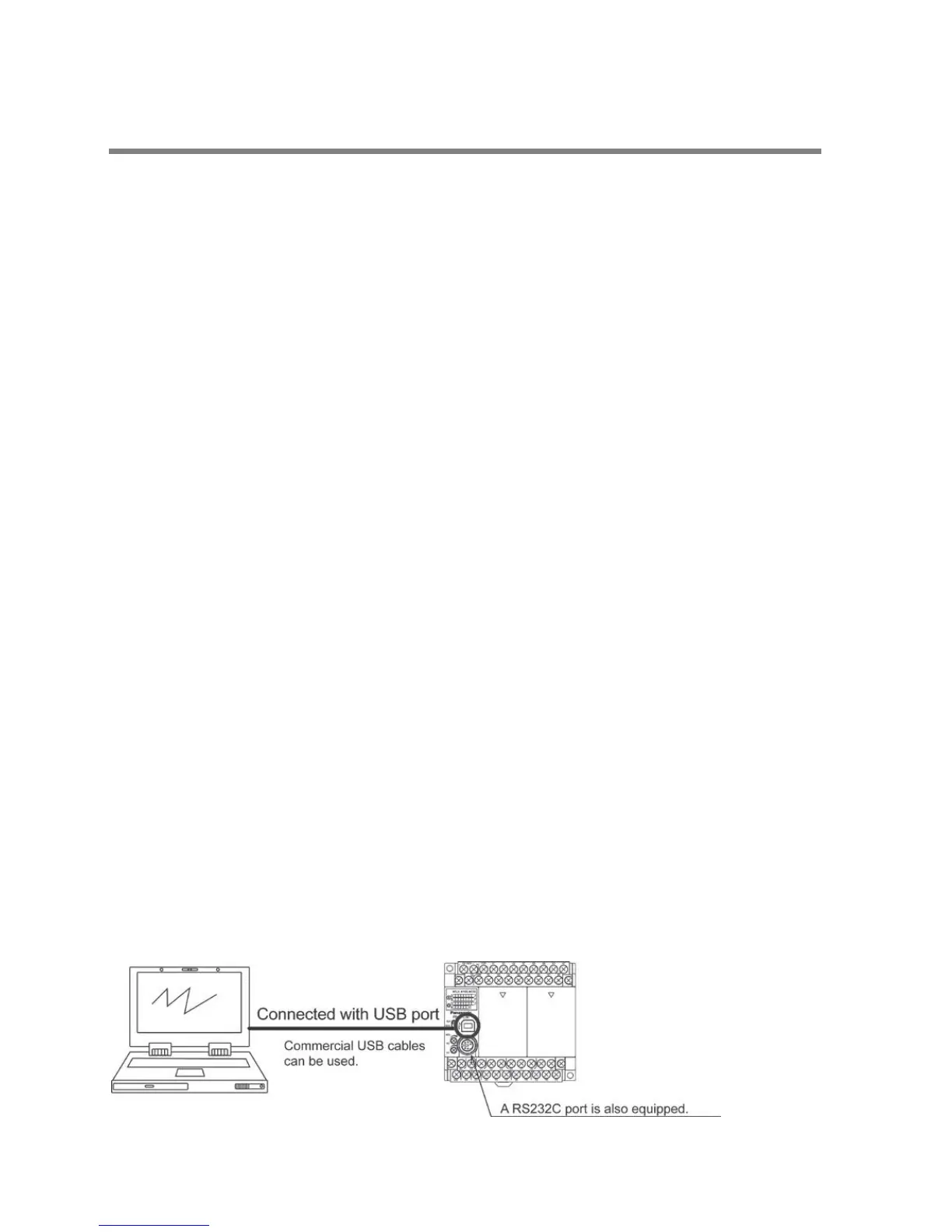

A personal computer can be directly connected with the USB communication port.
A personal computer can be directly connected with the USB cable (excluding C14).
The USB⇔RS232C conversion adapter/cable is not necessary.
(A tool port (RS232C) is also equipped.)
