5.3 Expansion Method of FP0 Expansion Unit
The FP0 expansion unit (expansion unit, intelligent unit) is expected by connecting to the right side of the
FP-X expansion FP0 adapter.
Unit expansion is done using the right-side connector for FP0 expansion and expansion hook on the side
of the unit.

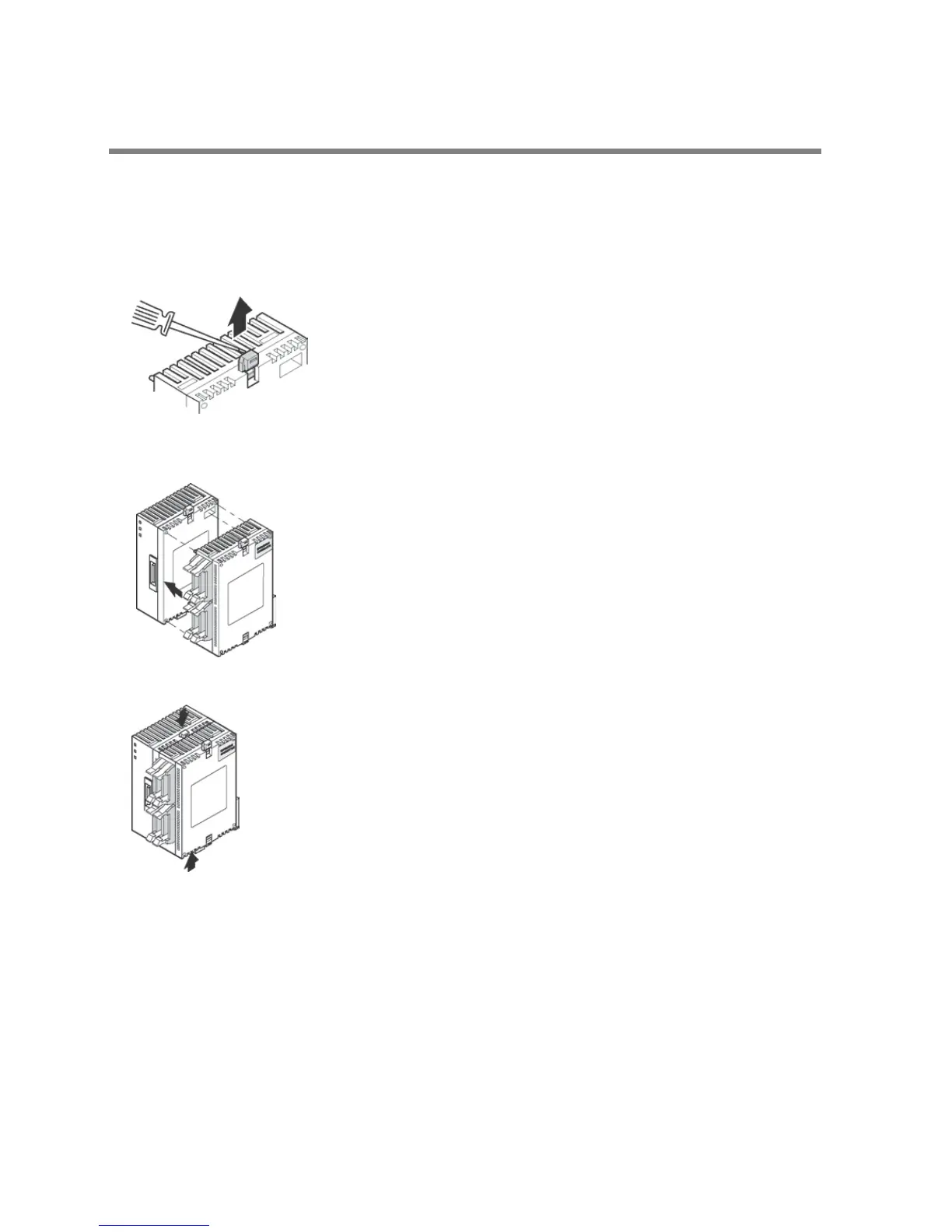

1. Raise the expansion hooks on the top and bottom sides of the unit with a screwdriver.
2. Align the pins and holes in the four corners of the control unit and expansion unit, and insert
the pins into the holes so that there is no gap between the units.
3. Press down the expansion hooks raised in step 1 to secure the unit.
