Panasonic AFPX-C30T User Manual

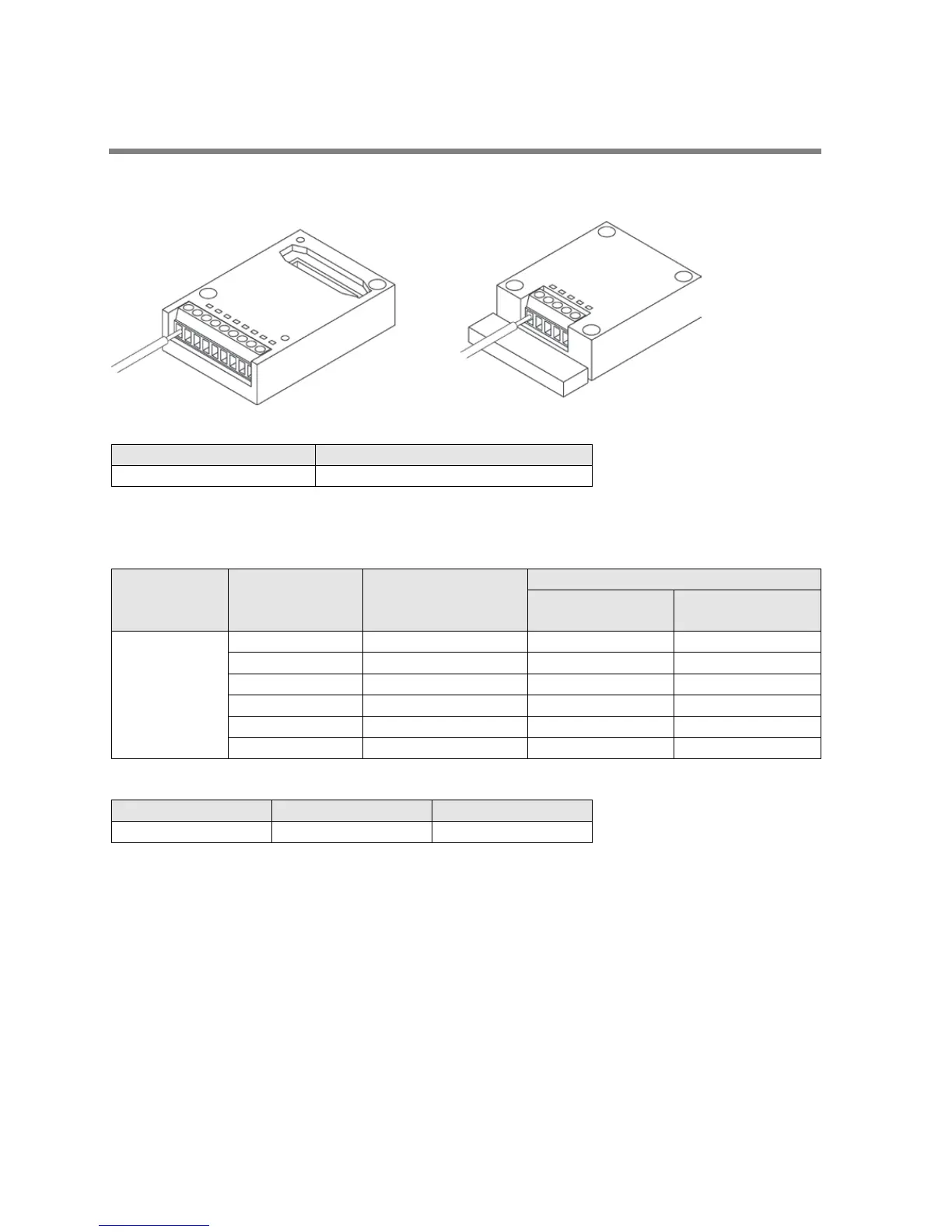

5.8 Wiring of Add-on Cassette Terminal Block
A screw-down connection type for terminal block is used for the add-on cassette. The suitable wires are
given below.
Suitable wires (twisted)
Size
Nominal cross-sectional area
AWG #28 to 16 0.08 to 1.00 mm
2
Pole terminal with a compatible insulation sleeve
If a pole terminal is being used, the following models manufactured by Phoenix Contact Co. should be
used.
Manufacturer
Cross-sectional
area (mm
2
)
Size
Part No.
With
insulating sleeve
Without
insulating sleeve
Phoenix
Contact Co.
0.25
AWG #24
AI 0, 25-6 BU
-
0.34
AWG #22
-
A 0, 34-6
0.50
AWG #20
-
A 0, 5-6
0.75
AWG #18
-
-
1.00 AWG #18 - -
0.5
×
2
AWG #20 (for 2 pHs)
-
-
Pressure welding tool for pole terminals
Manufacturer
Part No.
Product No.
Phoenix Contact Co. CRIMPFOX UD6 1204436
For tightening the terminal block
When tightening the terminals of the terminal block, use a screwdriver (Product No. 1205037) with a
blade size of 0.4 × 2.5 (Part No. SZS 0,4×2,5).
The tightening torque should be 0.22 to 0.25 N
･m.
