9.5 PWM Output Function (Pulse I/O Cassette)
9.5.1 Overview of PWM Output Function
PWM output function
With the F173 (PWMH) instruction, the pulse width modulation output of the specified duty ratio is
obtained.
System register setting
When using the PWM output function, set the channel corresponding to the system register 402 to
“PWM output”.
Note:
The pulse I/O cassette (AFPX-PLS) cannot be used with the FP-X Tr type.

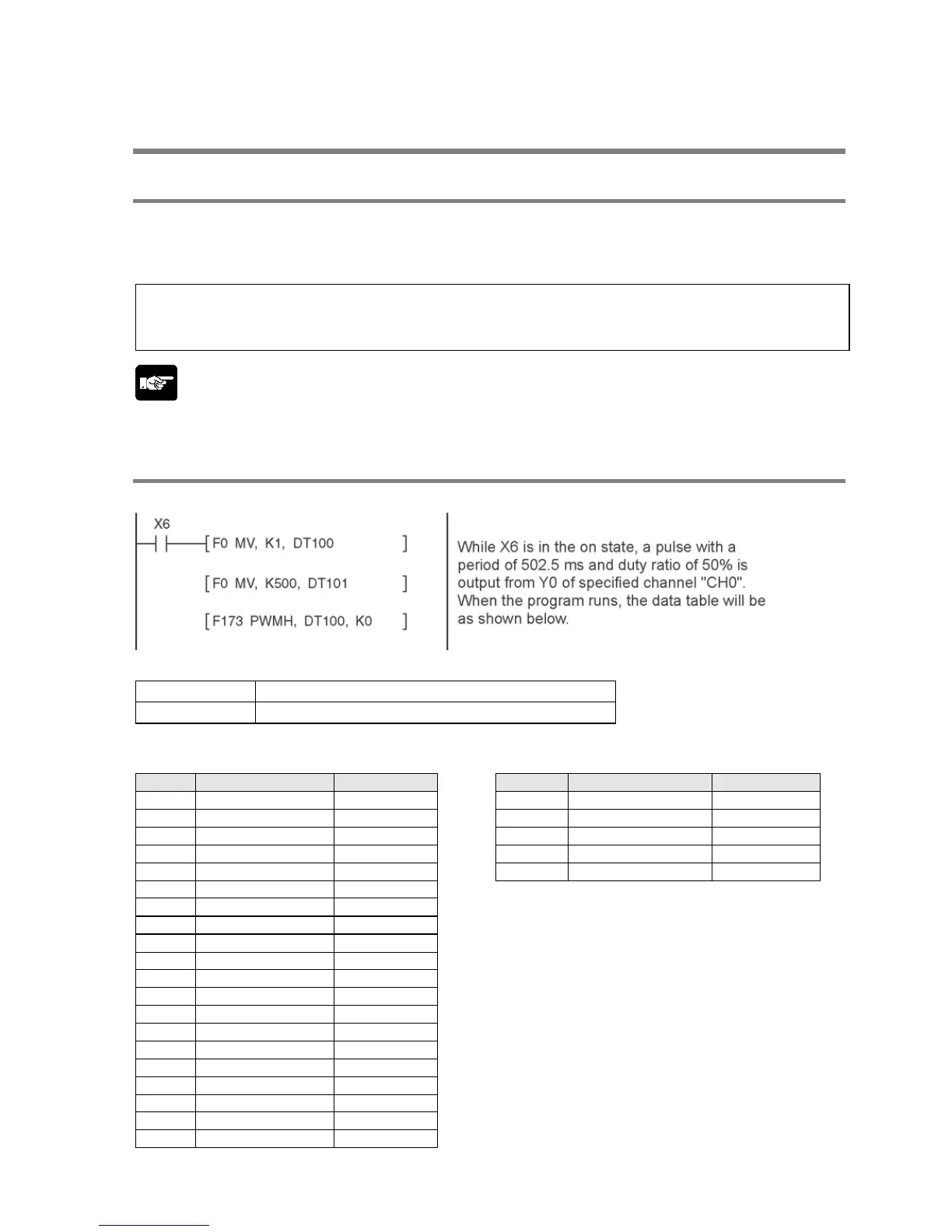

9.5.2 Instruction to be Used for PWM Output Function
PWM Output Instruction F173
Data table
DT100
Control code *1 : K1
DT101
Duty *2
: 50%
*1: Specify the control code by setting the K constant.
Resolution of 1000
Resolution of 100
K
Frequency (Hz)
Period (ms)
K
Frequency (Hz)
Period (ms)
K0
1.5
666.67
K20
15.6 k
0.06
K1
2.0
502.51
K21
20.8 k
0.05
K2
4.1
245.70
K22
25.0 k
0.04
K3
6.1
163.93
K23
31.3 k
0.03
K4
8.1
122.85
K24
41.7 k
0.02
K5
9.8
102.35
However, f or t he medium-
speed c hannel
CH2 and CH3 of the Tr type, it is not possible
to specify from K21 to k24.
K6
19.5
51.20
K7
48.8
20.48
K8
97.7
10.24
K9
201.6
4.96
K10
403.2
2.48
K11
500.0
2.00
K12
694.4
1.44
K13
1.0 k
0.96
K14
1.3 k
0.80
K15
1.6 k
0.64
K16
2.1 k
0.48
K17
3.1 k
0.32
K18
6.3 k
0.16
K19
12.5 k
0.08
