Panasonic AFPX-C30T - FP-X Analog Output Cassette

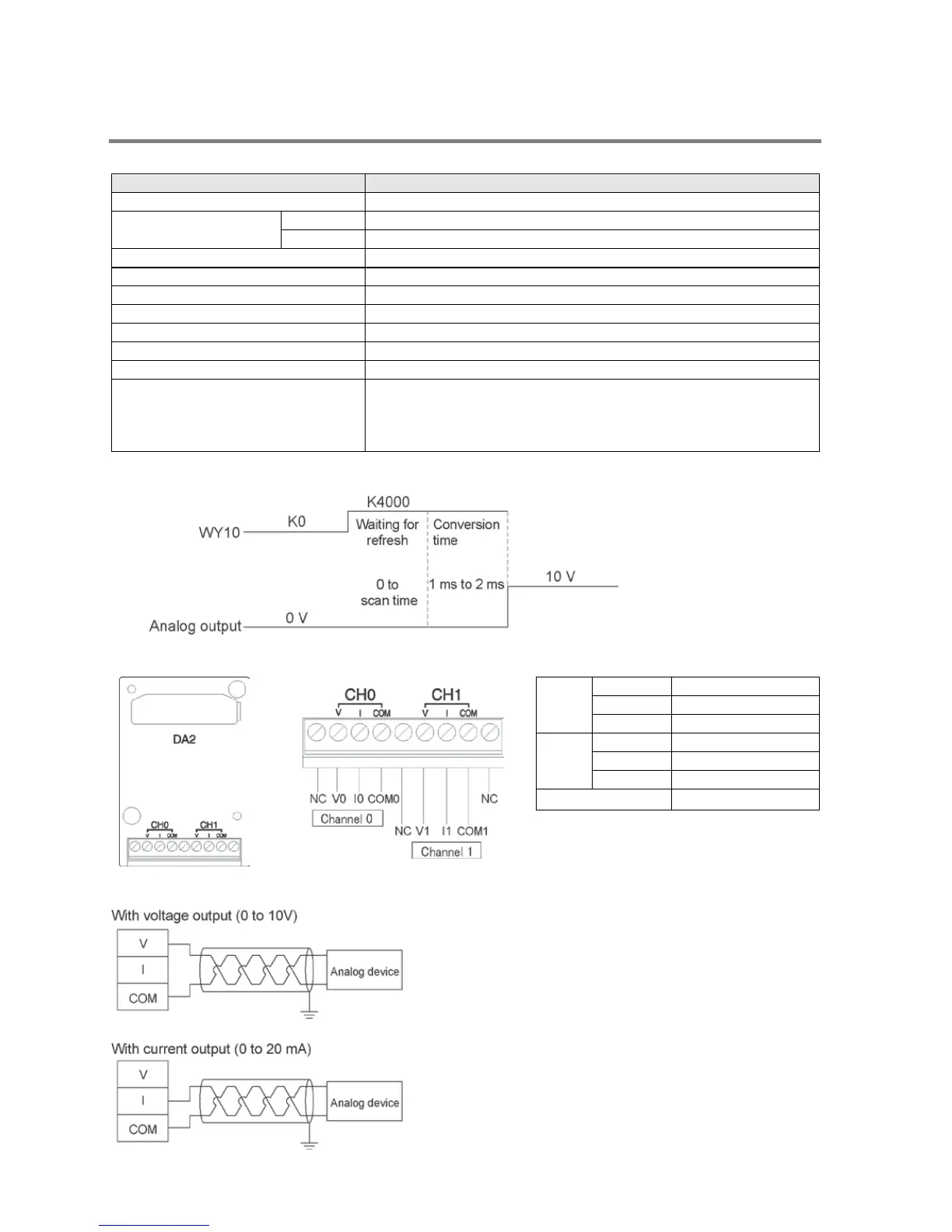

8.3.2 FP-X Analog Output Cassette
Product No.: AFPX-DA2
Item
Specifications
No. of output points
2 channels/cassette
Output range
Voltage
0 to 10 V
Current
0 to 20 mA
Digital value
K0 to K4000
Note1)
Resolution
1/4000 (12 bits)
Conversion speed
1 ms/1 channel
Total accuracy
±1% F.S. or less (0 to 55 °C)
Output impedance
0.5 kΩ (Voltage output)
Output max. current
10 mA (Voltage output)
Output allowable load resistance
600 Ω or less (Current output)
Insulation
Between analog output terminal and internal digital circuit part
Transformer insulation, Isolation IC insulation
Between each channel of analog output terminals
Transformer insulation , Isolation IC insulation
Note1) When the digital value exceeds the upper and lower limits, D/A conversion will not be performed.
Note2) Following time is required to reflect the output of the control unit in the analog output.
Terminal layout
CH0
V
Voltage output
I
Current output
COM0
Common
CH1
V
Voltage output
I
Current output
COM1
Common
NC
Not used
Connection method
