Panasonic AFPX-C30T - Page 247

0 mA to 20 mA output

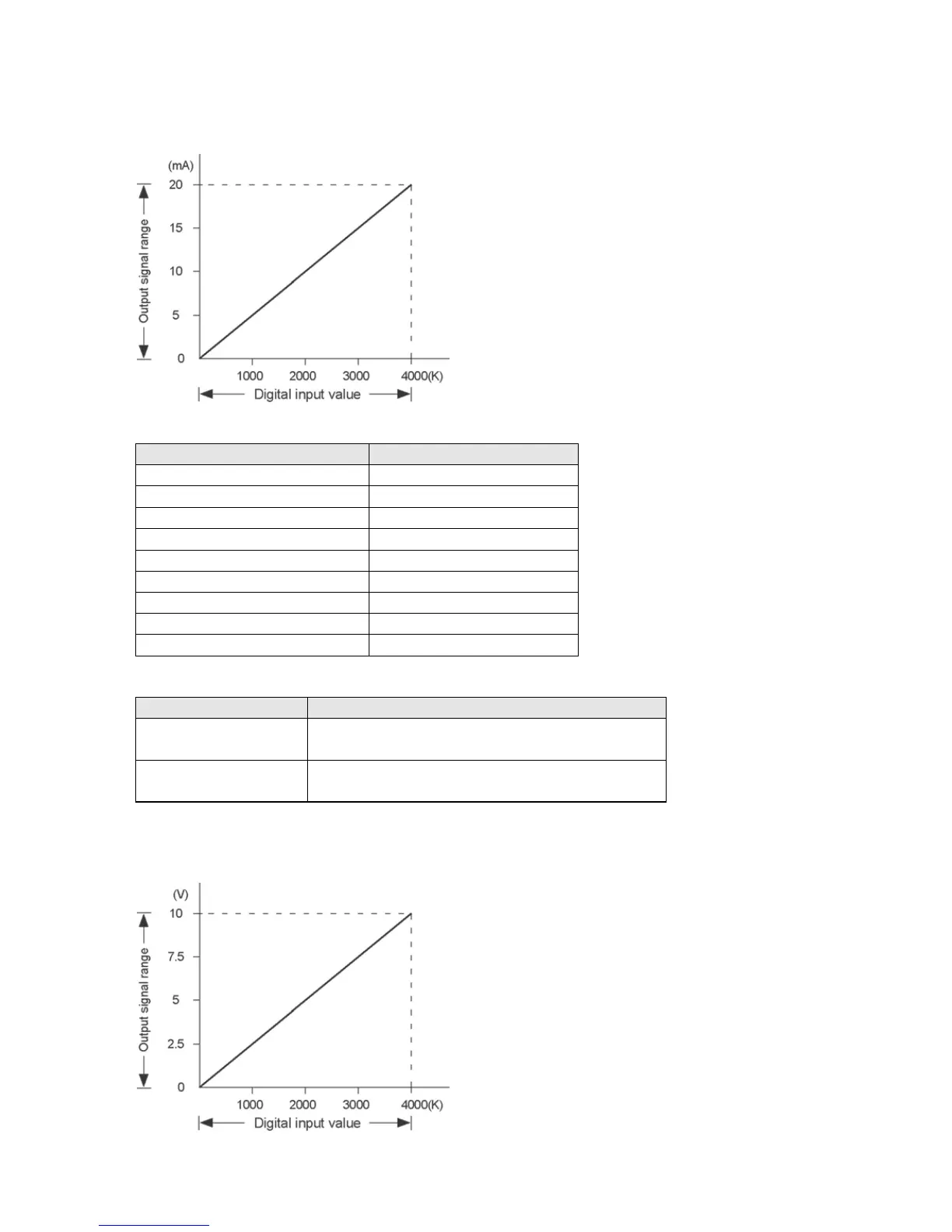

Conversion characteristics graph
Table of D/A converted values
Digital input value
Output current (mA)
0
0.0
500
2.5
1000 5.0
1500
7.5
2000 10.0
2500
12.5
3000
15.0
3500
17.5
4000
20.0
When exceeding the rated range
Digital input value
Analog output value
Negative value
Unchanged
(Value preceding the input of a negative value)
4001 or more
Unchanged
(Value preceding the input of 4001)
0 V to 10 V output
Conversion characteristics graph
