Panasonic AFPX-C30T - Page 248

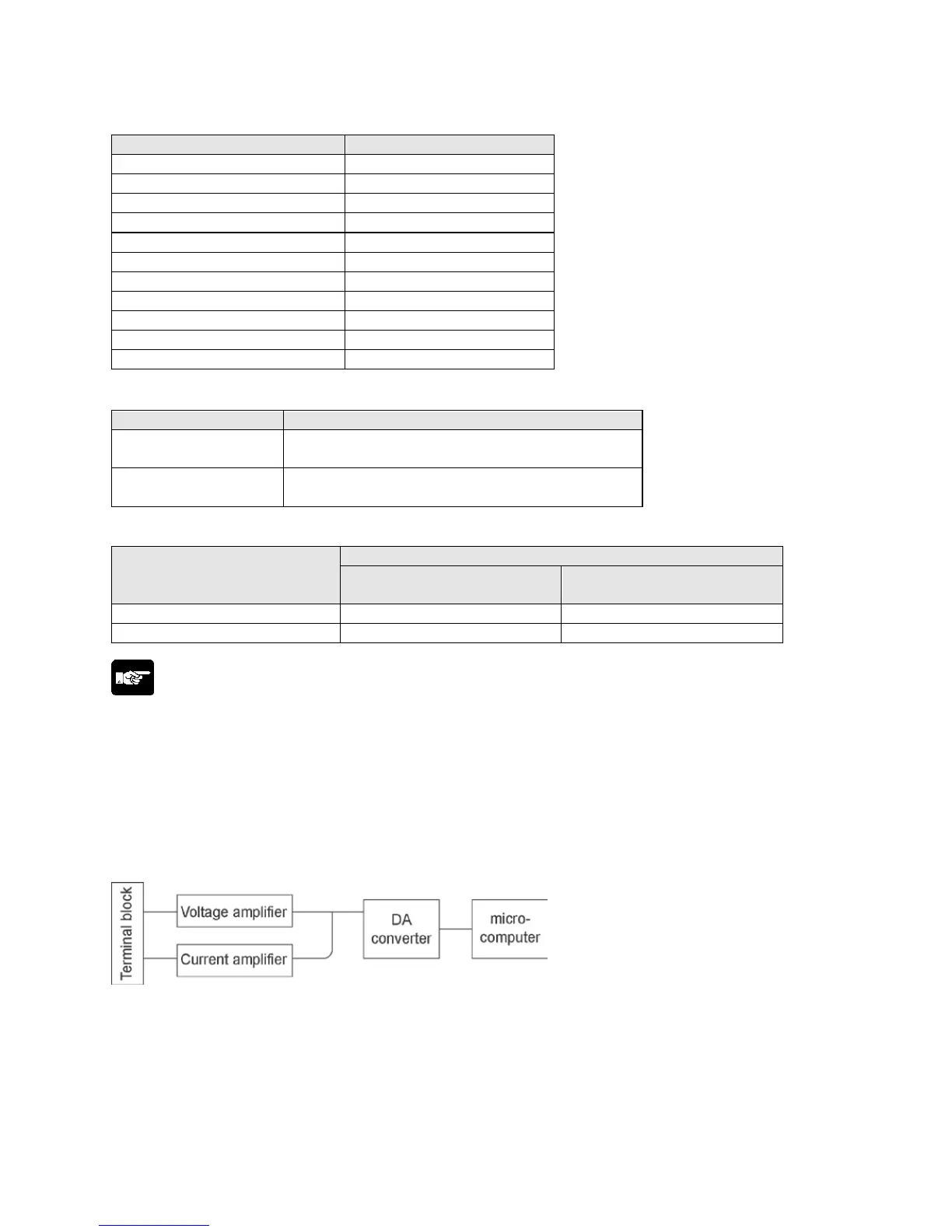

Table of D/A converted values
Digital input value
Output voltage (V)
0
0.0
400
1.0
800
2.0
1200
3.0
1600
4.0
2000
5.0
2400
6.0
2800
7.0
3200
8.0
3600
9.0
4000
10.0
When exceeding the rated range
Digital input value
Analog output value
Negative value
Unchanged
(Value preceding the input of a negative value)
4001 or more
Unchanged
(Value preceding the input of 4001)
Each channel data is allocated as I/O data as shown below.
Analog output cassette
Output channel
Installed slot No.
Cassette mounting part 1
(Slot 0)
Cassette mounting part 2
(Slot 1)
CH0
WY10
WY20
CH1
WY11
WY21
Note:
• Use double-core twisted-pair shielded wires. It is recommended to ground them. However, depending
on the conditions of the external noise, it may be better not to ground the shielding.
• Do not have the analog output wiring close to AC wires, power wires, or load.
DA part Internal block diagram
A voltage amplifier and a current amplifier is connected in parallel to one DA converter IC.
Do not connect an analog device to the voltage output terminal and current output terminal of the same
channel simultaneously.
