Panasonic AFPX-C30T - FP-X Analog IO Cassette

8.3.3 FP-X Analog I/O Cassette
Product No.: AFPX-A21
Item
Specifications
No. of input points
2 channels/cassette
Input range
Voltage
0 to 10 V, 0 to 5 V
Current
0 to 20 mA
Digital conversion value
K0 to K4000
Resolution
1/4000 (12 bits)
Conversion speed
1 ms/channel
Total accuracy
±1% F.S. or less (0 to 55 °C)
Input impedance
Voltage
1M Ω
Current
250 Ω
Absolute max. input
Voltage
-0.5, +15 V (Voltage input)
Current
+30 mA (Current input)
Insulation
Between analog output terminal and internal digital circuit part
Transformer insulation, Isolation IC insulation
Between each channel of analog output terminals
Transformer insulation , Isolation IC insulation
Note1) When the analog input values exceed the upper and lower limits, the digital values maintain the
upper and lower limit values. As the resolution is 12 bits, the higher 4 bits of the input contact are
always 0.

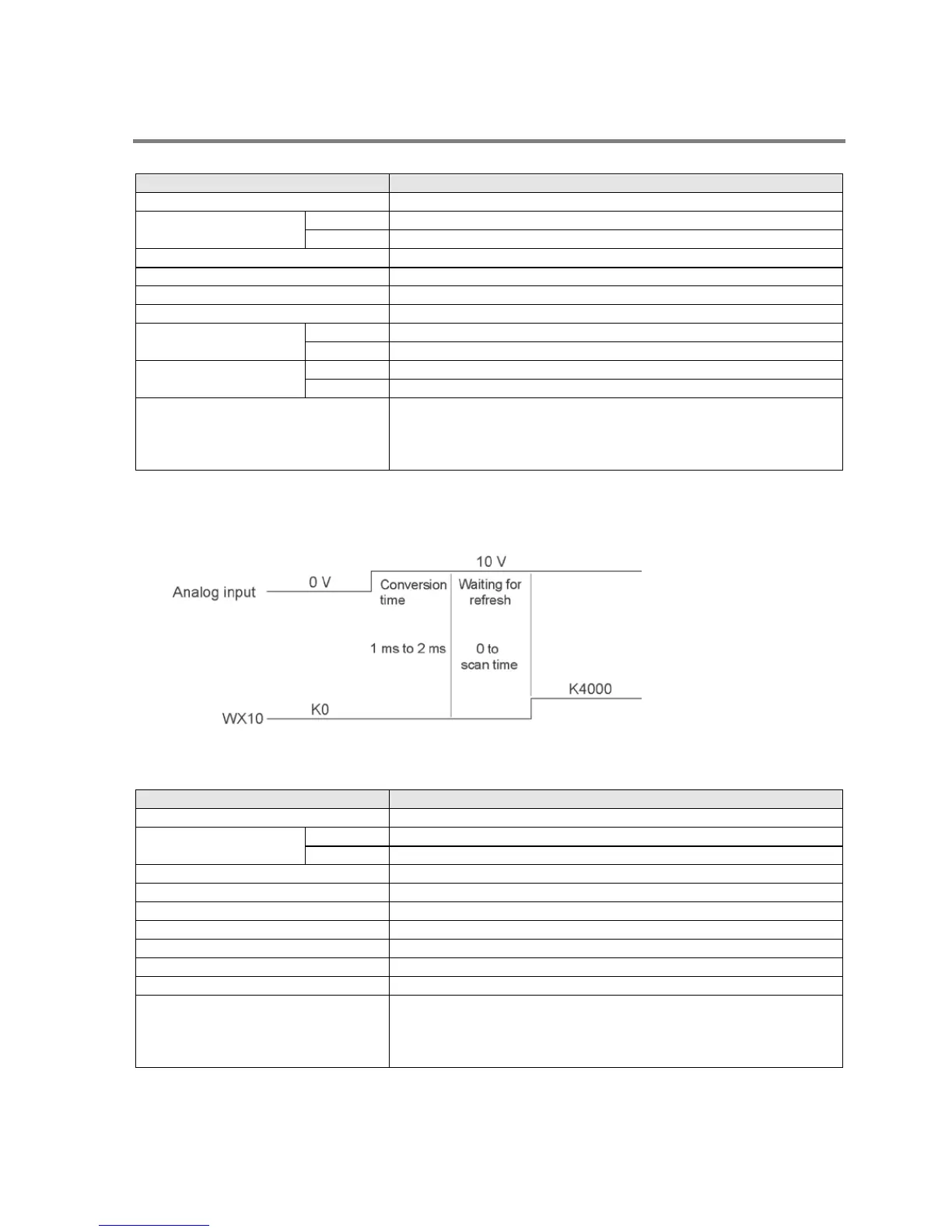

Note2) Following time is required to reflect the analog data in the input of the control unit.
Note3) Averaging cannot be processed with the cassette. If averaging is necessary, use a ladder
program to execute averaging process.
Item
Specifications
No. of output points
1 channels/cassette
Output range
Voltage
0 to 10 V
Current
0 to 20 mA
Digital value
K0 to K4000
Note)
Resolution
1/4000 (12 bits)
Conversion speed
1 ms/1 channel
Total accuracy
±1% F.S. or less (0 to 55 °C)
Output impedance
0.5 kΩ (Voltage output)
Output max. current
10 mA (Voltage output)
Output allowable load resistance
600 Ω or less (Current output)
Insulation
Between analog output terminal and internal digital circuit part
Transformer insulation, Isolation IC insulation
Between analog output terminal and analog input terminal
Transformer insulation , Isolation IC insulation
