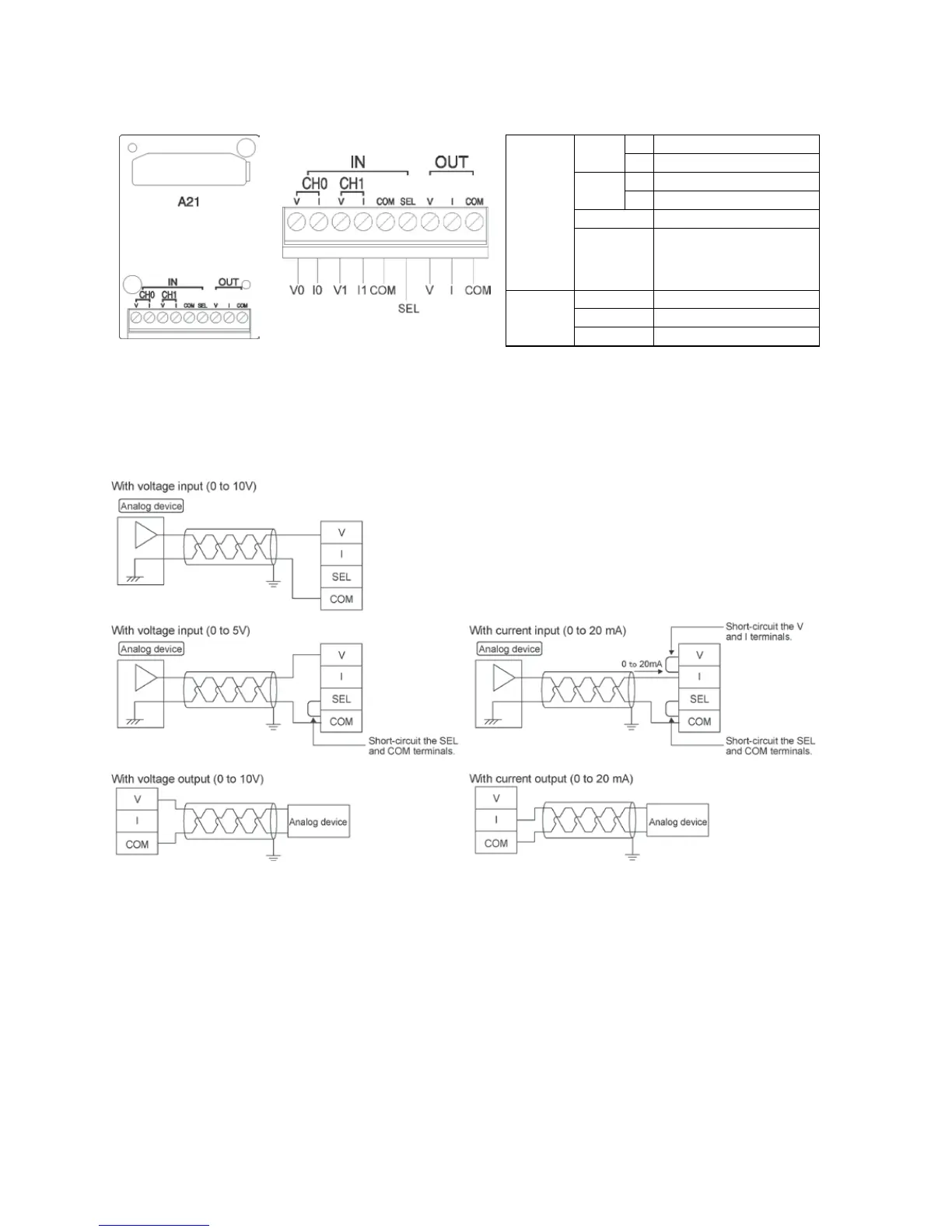

Terminal layout
Input
CH0
V
Voltage input
I
Current input
CH1
V
Voltage input
I
Current input
COM
Common (for input)
SEL
Note)
Input range selection
0 to 10 V or
0 to 5 V, 0 to 20 mA
Output
V
Voltage output
I
Current output
COM
Common (for output)
Note) The CH0 and CH1 will be the same range
according to switching of the SEL terminal.
However, the inputs of 0 to 5 V and 0 to 20
mA can be used at the same time depending
on the connection.
Connection method
