DC input: 0 mA to 20 mA

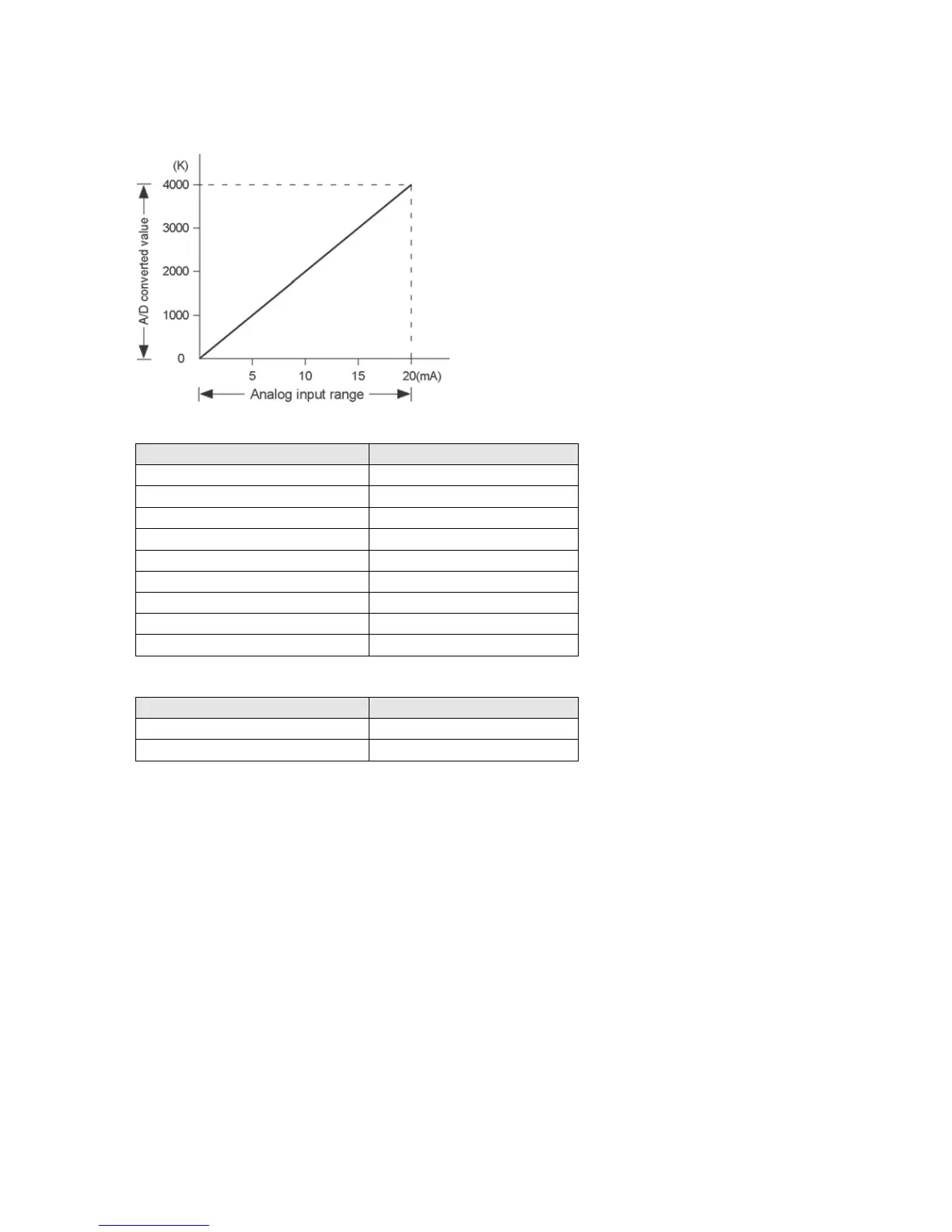

Conversion characteristics graph
Table of A/D converted values
Input current (mA)
A/D converted value
0.0
0
2.5
500
5.0 1000
7.5
1500
10.0 2000
12.5
2500
15.0
3000
17.5
3500
20.0
4000
When exceeding the rated range
Input voltage (V)
Converted value
0 mA or less (Negative value) 0
20 mA or more
4000
