DC input: 0 V to 10 V

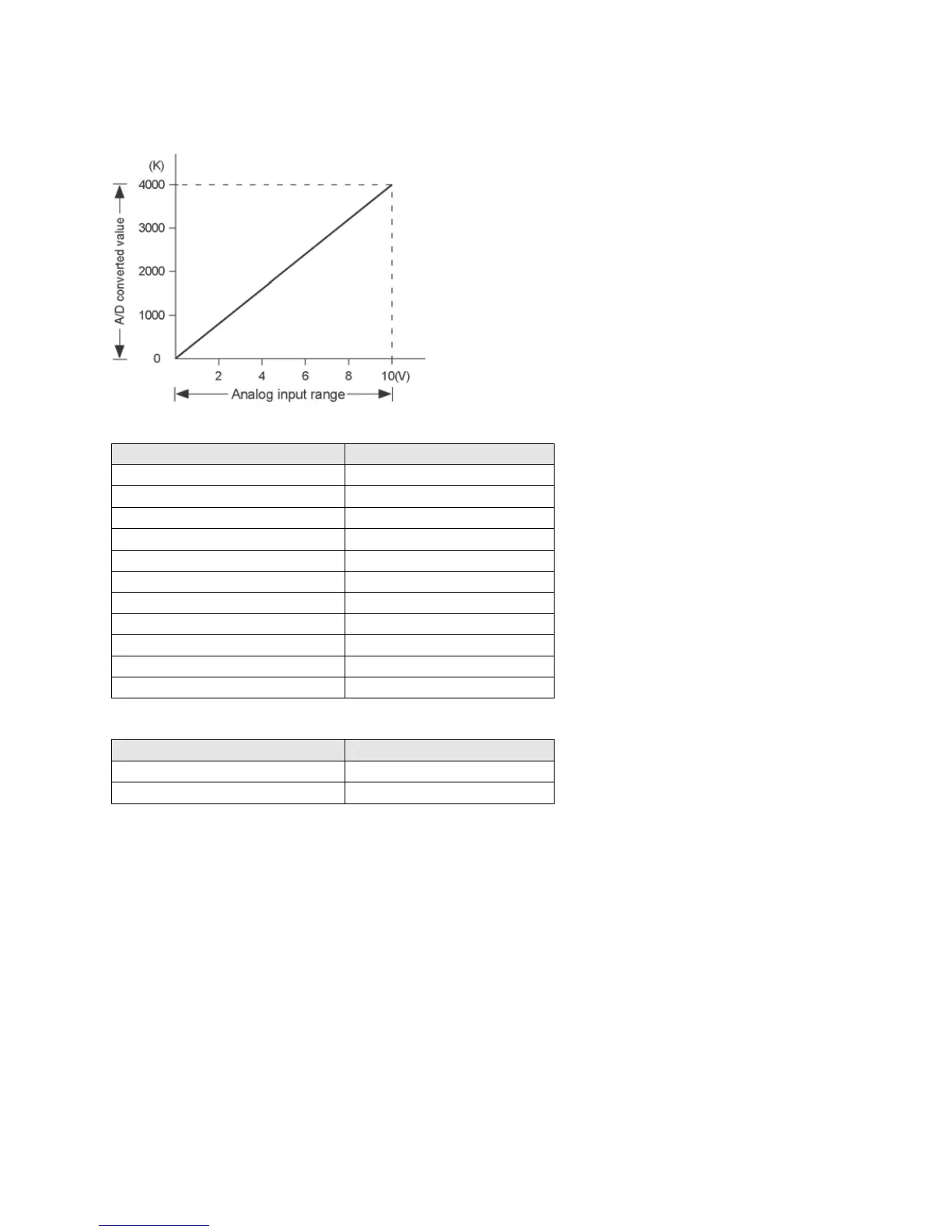

Conversion characteristics graph
Table of A/D converted values
Input voltage (V)
A/D converted value
0.0
0
1.0
400
2.0 800
3.0
1200
4.0 1600
5.0
2000
6.0
2400
7.0
2800
8.0
3200
9.0 3600
10.0
4000
When exceeding the rated range
Input voltage (V)
Converted value
0 V or less (Negative value)
0
10 V or more 4000
