Panasonic AFPX-C30T User Manual

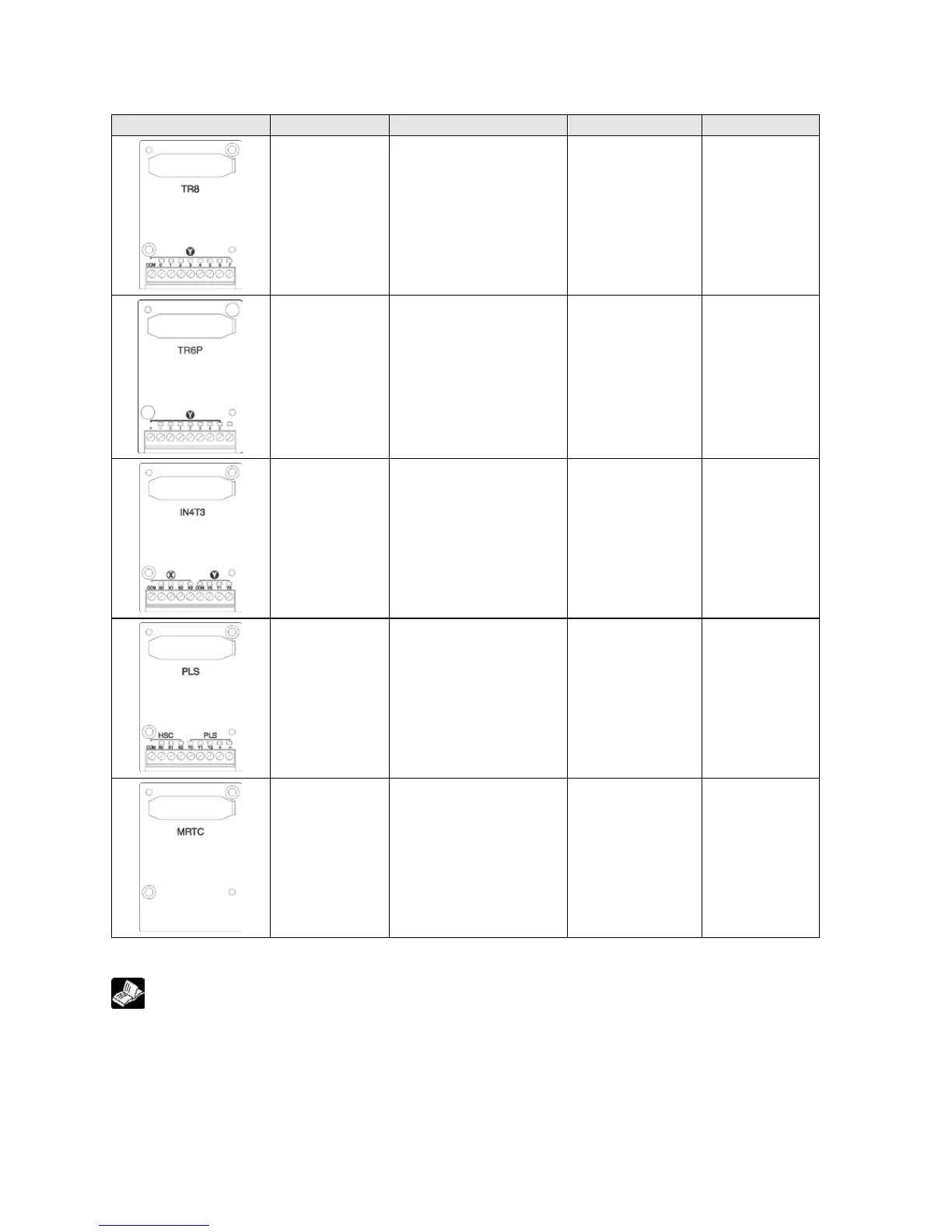

Name
Specifications
I/O No.
Product No.
FP-X output
cassette
8-point
transistor output (NPN)
From Y100
From Y200
AFPX-TR8
FP-X output
cassette
6-point
transistor output (PNP)
From Y100
From Y200
AFPX-TR6P
FP-X I/O
cassette
4-point DC input
3-point transistor output
(NPN)
From X100
From Y100
From X200
From Y200
AFPX-IN4T3
FP-X pulse I/O
cassette
Note2)
2-channel high-speed
counter + 1-channel
pulse output
From X100
From Y100
From X200
From Y200
AFPX-PLS
FP-X master
memory
cassette
Master memory +
Clock/Calendar
− AFPX-MRTC
Note1) The I/O numbers are the cassette mounting part 1 (from X100 and Y100) and cassette mounting
part 2 (from X200 and Y200).
Reference: <4.5 I/O Allocation of FP-X Add-on Cassette>
Note2) The pulse I/O cassette cannot be used with the Tr type.
