MEWTOCOL master function (Transistor type, relay type Ver 1.21 or later version)
• This function is to carry out the communication on the master side (side 0that issues commands) of the
computer link. It is executed with the PLC’s instruction F145(SEND) or F146(RECV). It is not necessary
to write the response process as a ladder, so the program is easier than the general-purpose
communication function.

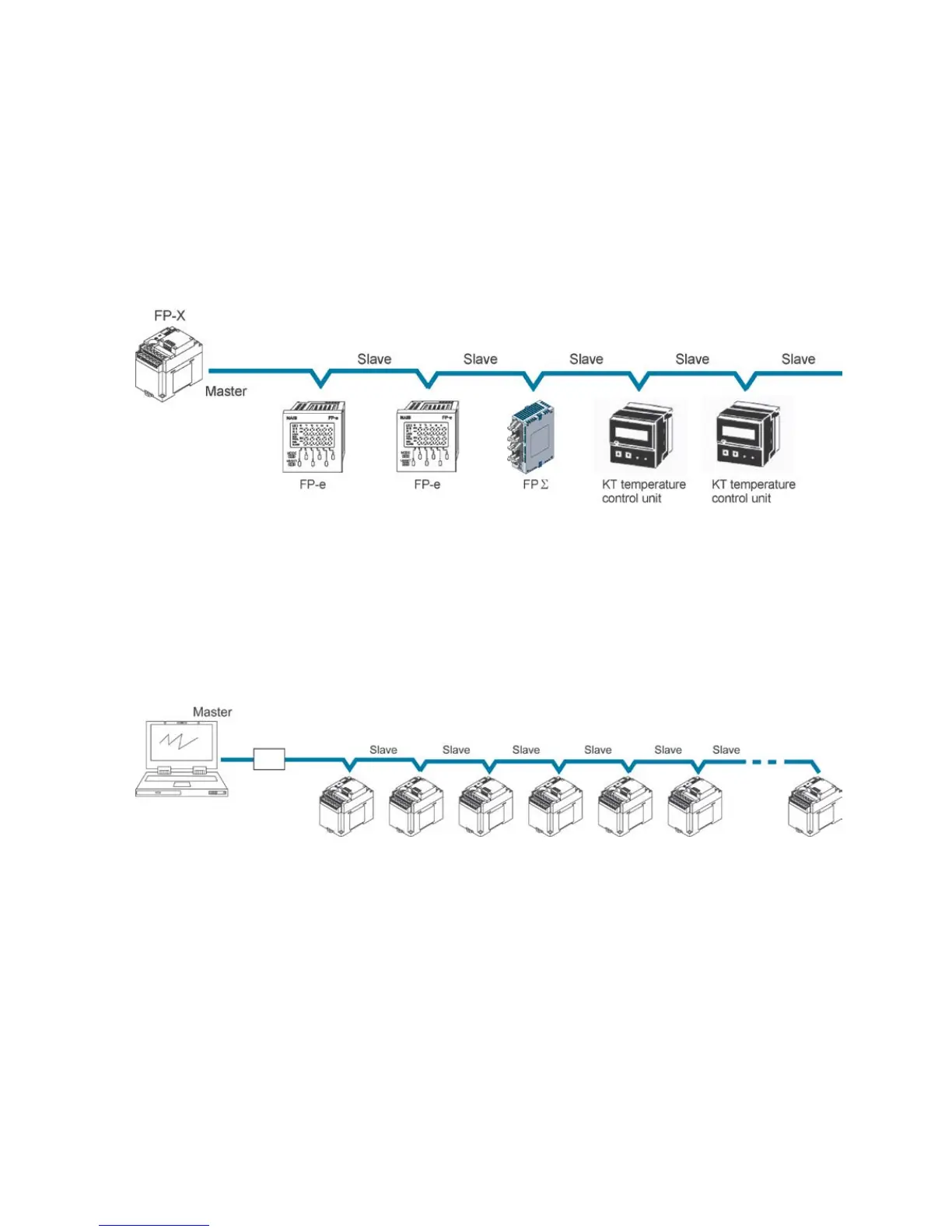

The 1:1 or 1:N communication is available between our devices equipped with the computer link function
and the MEWTOCOL-COM.
[Our devices (e.g.)] : PLC, IPD, temperature control unit, eco-power meter
MEWTOCOL slave function
• This function is to receive commands from the computer link, execute the process and send back the
results. Any special ladder program is not necessary to use this function. (Set the communication
conditions in the system registers.) It enables the 1:1 or 1:N communication with a master computer or
PLC.
• The program for the computer side must be written in BASIC or C language according to the
MEWTOCOL-COM. MEWTOCOL-COM contains the commands used to monitor and control PLC
operation.
