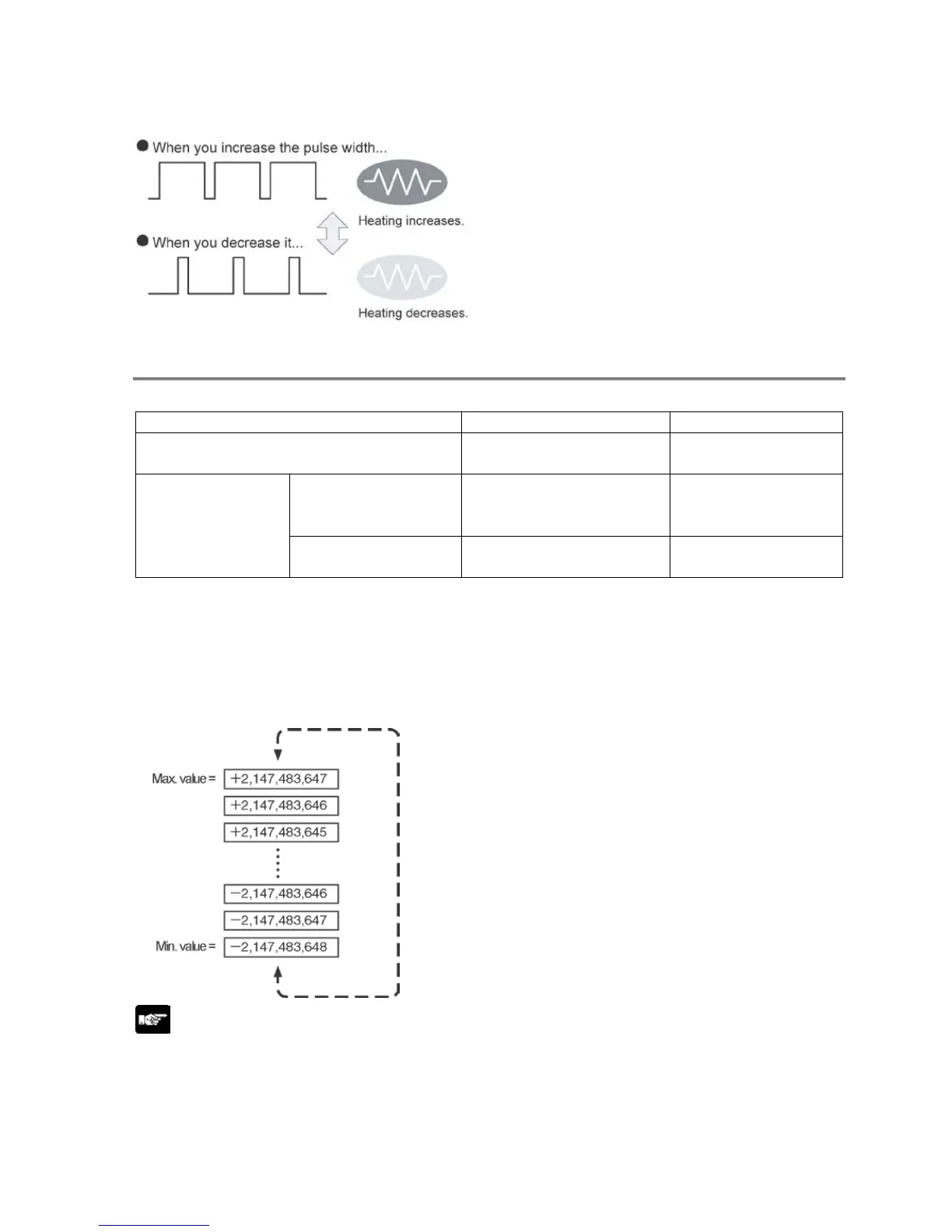

By using the exclusive instruction, the PWM output
function enables a pulse output of the desired duty
ratio.
10.1.3 Performance of Pulse I/O Function
Number of Channel
1 channel
Note) When one unit is added for C14, and 2 units are added for C30 and C60.
Counting range
• K-2, 147, 483, 648 to K+2, 147, 483, 647 (Coded 32-bit binary)
• The built-in high-speed counter is a ring counter. Consequently, if the counted value exceeds the
maximum value, it returns to the minimum value. Similarly, if the counted value drops below the
minimum value, it goes back to the maximum value and continues counting from there.
Note:
When the linear interpolation instruction F175 is used, the value for the amount of travel should be set so
that it is within the range indicated below.
-8,388,608 to +8,388,607 (Coded 24-bit binary)
