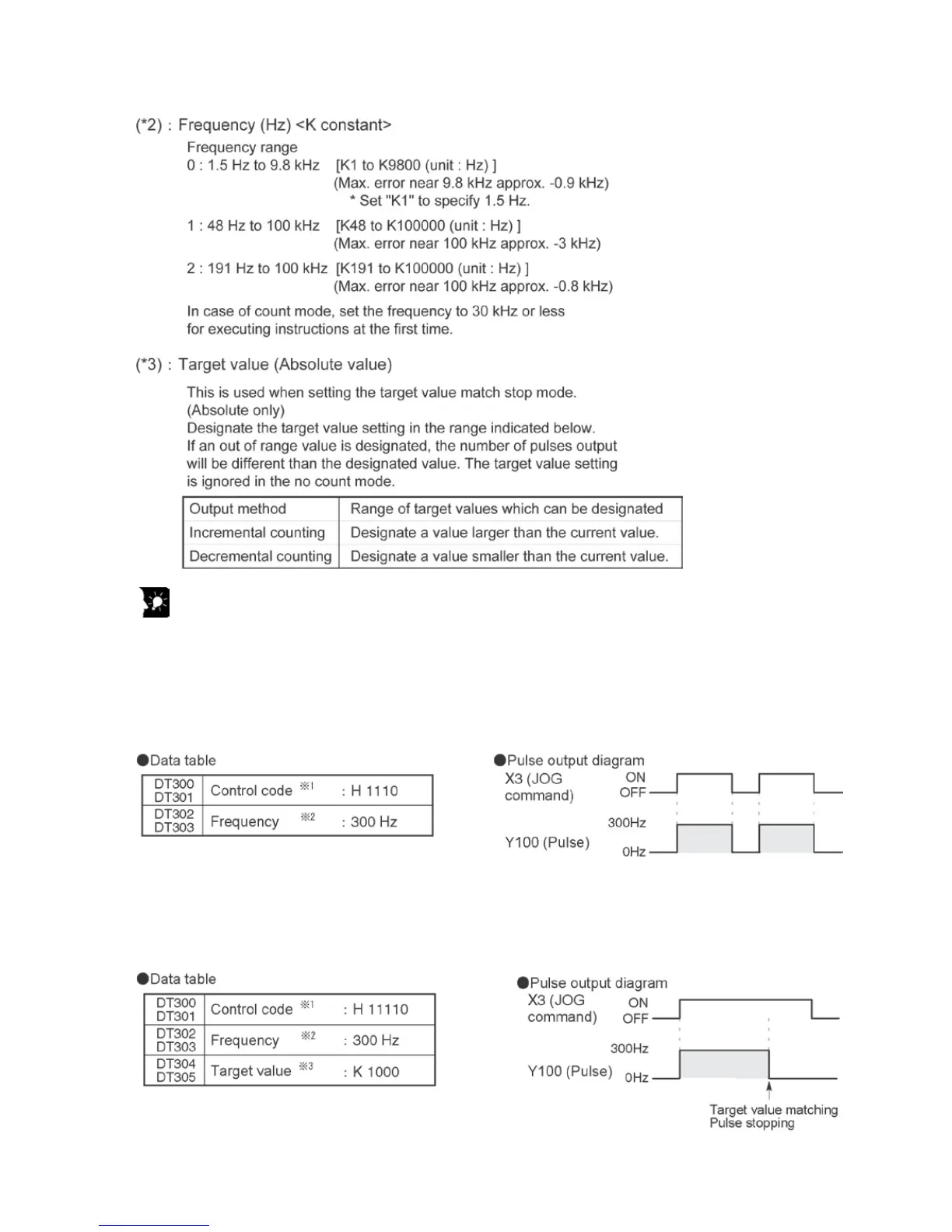

Key Point:
The FP-X supports two operation modes for JOG operation, one in which no target value is specified,
and one in which feed stops when the target value is reached.
Normal jogging operation feed (no target value specified)
Pulses are output in accordance with the conditions set in the data table, as long as execution condition
is on.
Output stops when target value is reached
A target value at which pulse output stops can be specified for jogging operation. As shown below, this
mode is selected in the control code, and the target value (an absolute value) is specified in the data
table.
