Panasonic AFPX-C30T - Page 362

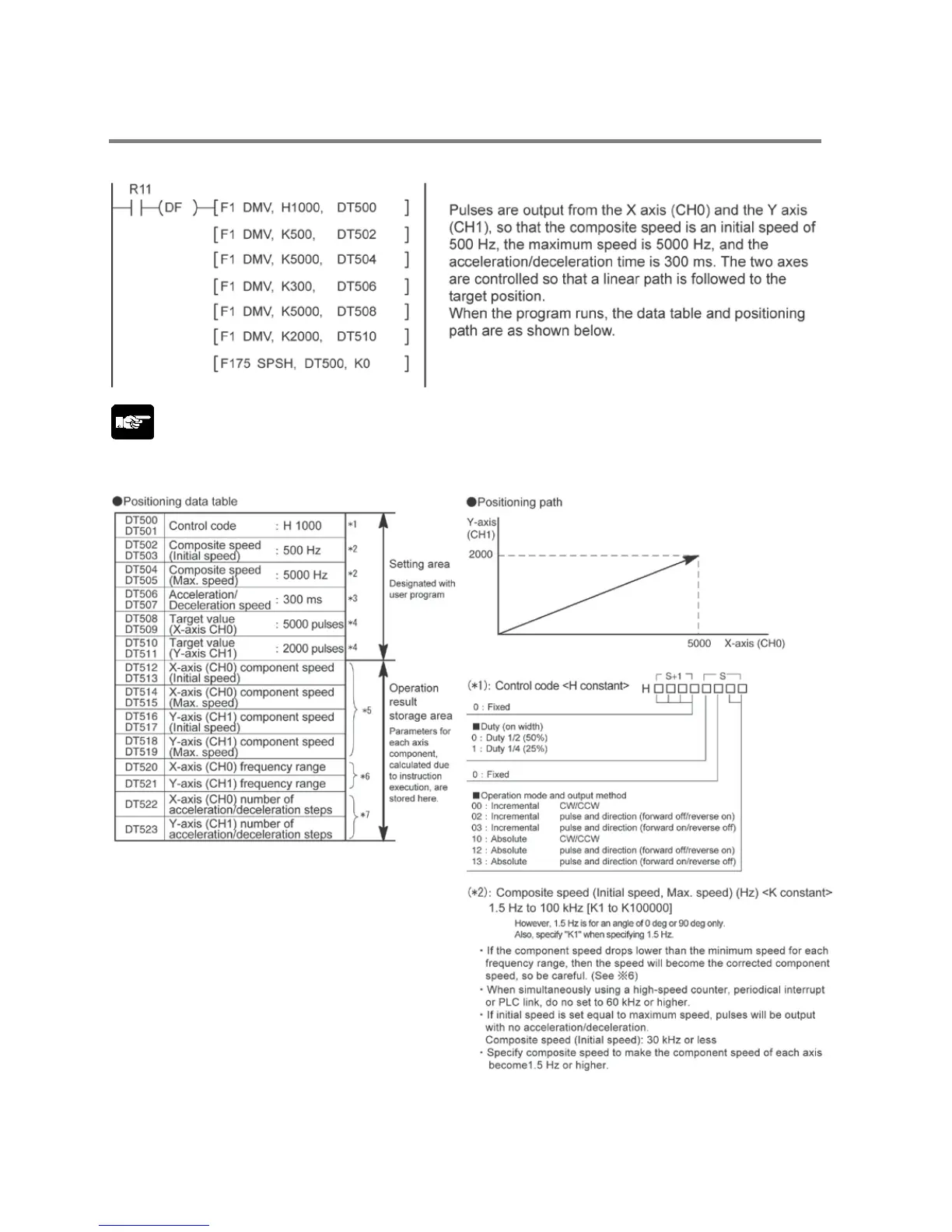

10.4.10 Pulse Output Instruction F175 – Linear Interpolation
• The linear interpolation controls positioning with two axes according to the specified data table.
Note:
The linear interpolation function can be used only when 2 units of the AFPX-PLS are being used.
