Panasonic AFPX-C30T - Page 364

Sample program of interpolation control

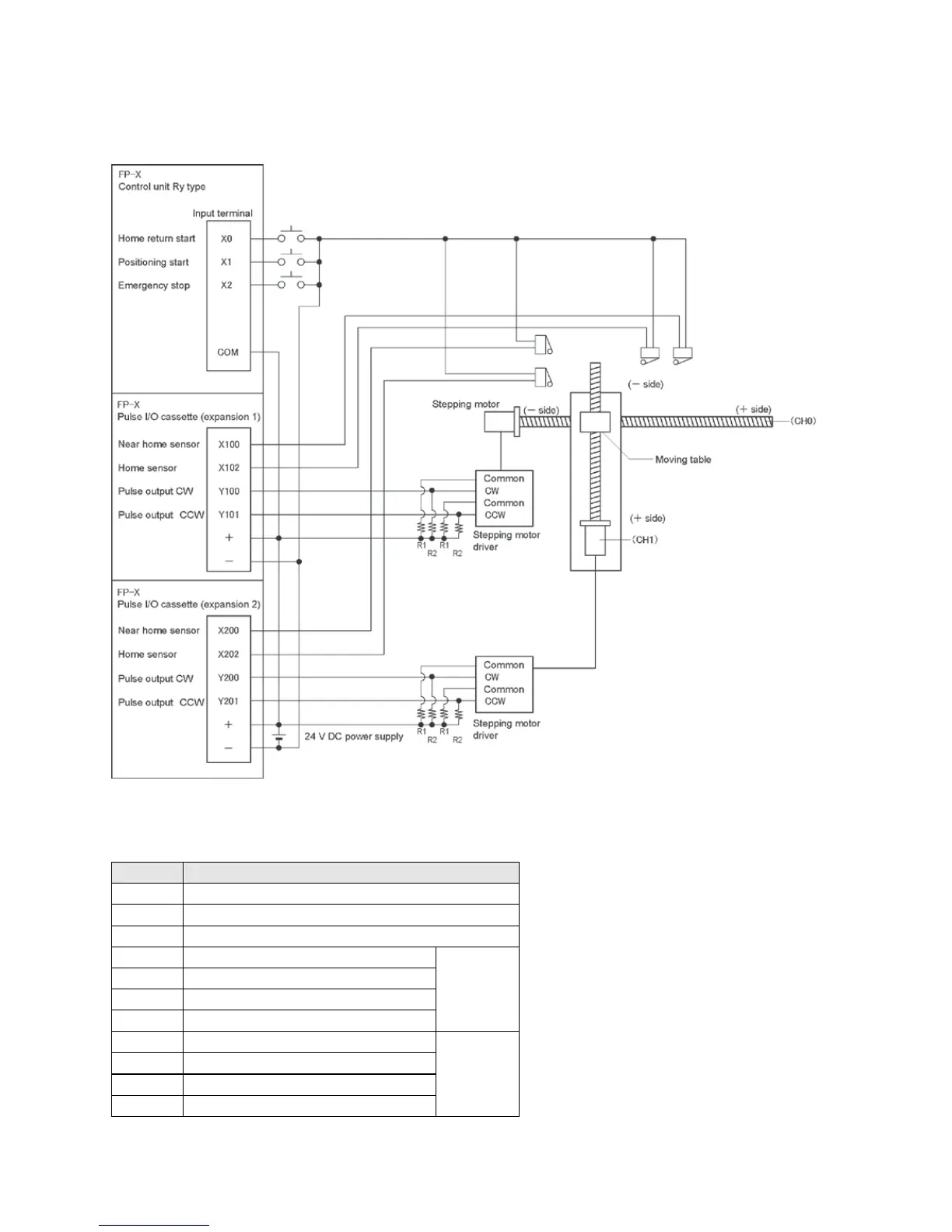

Wiring example
Note) When the stepping motor input is a 5 V optical coupler type, connect a 2 kΩ (1/2 W) resistor with
the R1 and a 2 kΩ (1/2 W) to 470 Ω (2 W) resistor with the R2.
Table of I/O allocation
I/O No.
Description
X0
Home return start signal
X1
Positioning start
X2
Emergency stop
X100
Near home sensor
CH0
X102
Home sensor
Y100
Pulse output CW
Y101
Pulse output CCW
X200
Near home sensor
CH1
X202
Home sensor
Y200
Pulse output CW
Y201
Pulse output CCW
