Panasonic AFPX-C30T - Page 60

Transistor type (NPN)
Item
Description
E16
E30
Insulation method Optical coupler
Output type
Open collector
Rated load voltage 5 to 24 V DC
Allowable load voltage range
4.75 to 26.4 V DC
Max. load current 0.5 A
Max. inrush current
1.5 A
Input points per common 8 points/Common
8 points/Common,
6 points/Common
Off state leakage current
1
µ
A or less
On state voltage drop 0.3 V DC or less
Response time
OFF
→
ON
1 ms or less
ON→OFF 1 ms or less
External power supply
(+ and – terminals)
Voltage
21.6 to 26.4 V DC
Current
Y0 to Y7 Y8 to YD
E16
45 mA or less

E30 45 mA or less 35 mA or less
Surge absorber
Zener diode
Operating mode indicator LED display

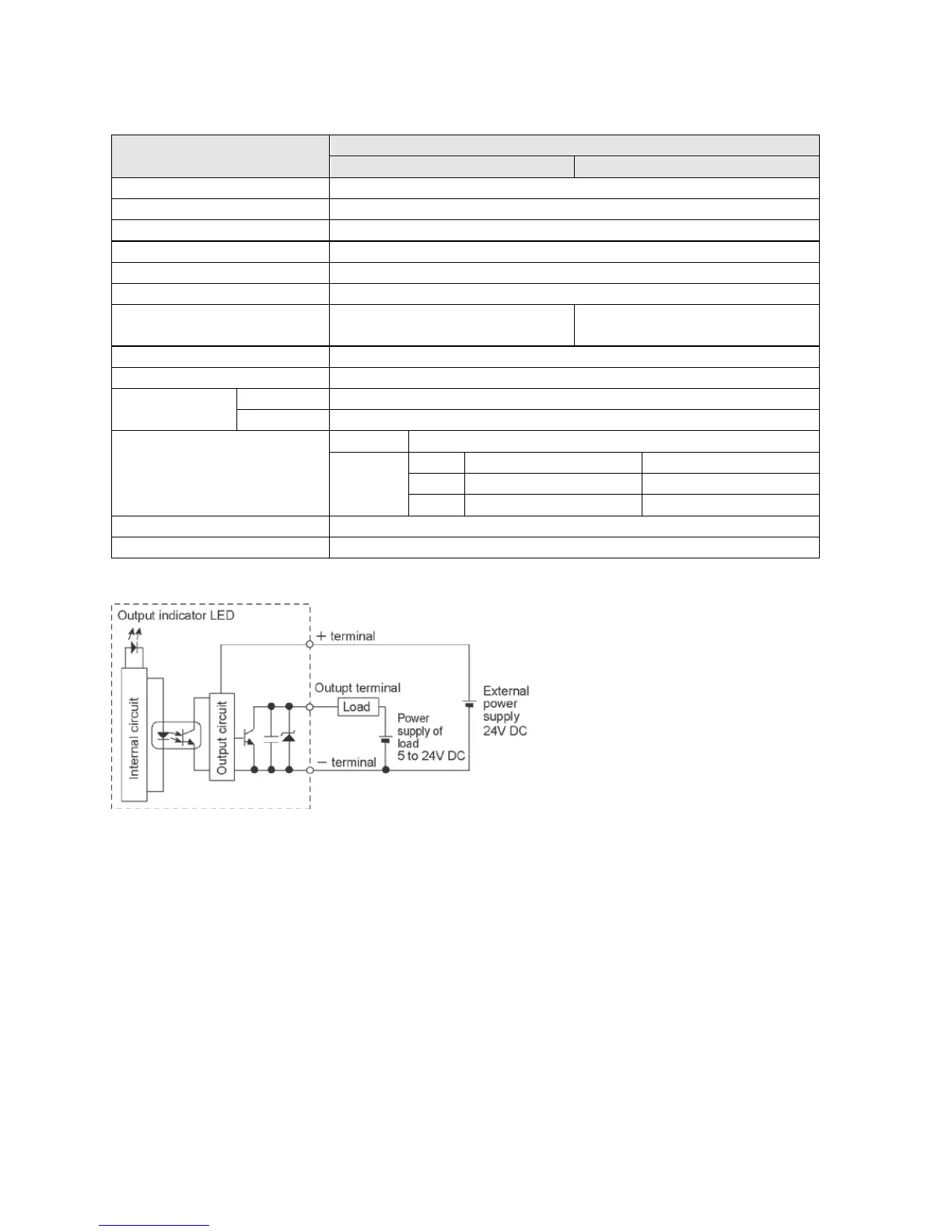

Circuit diagram
