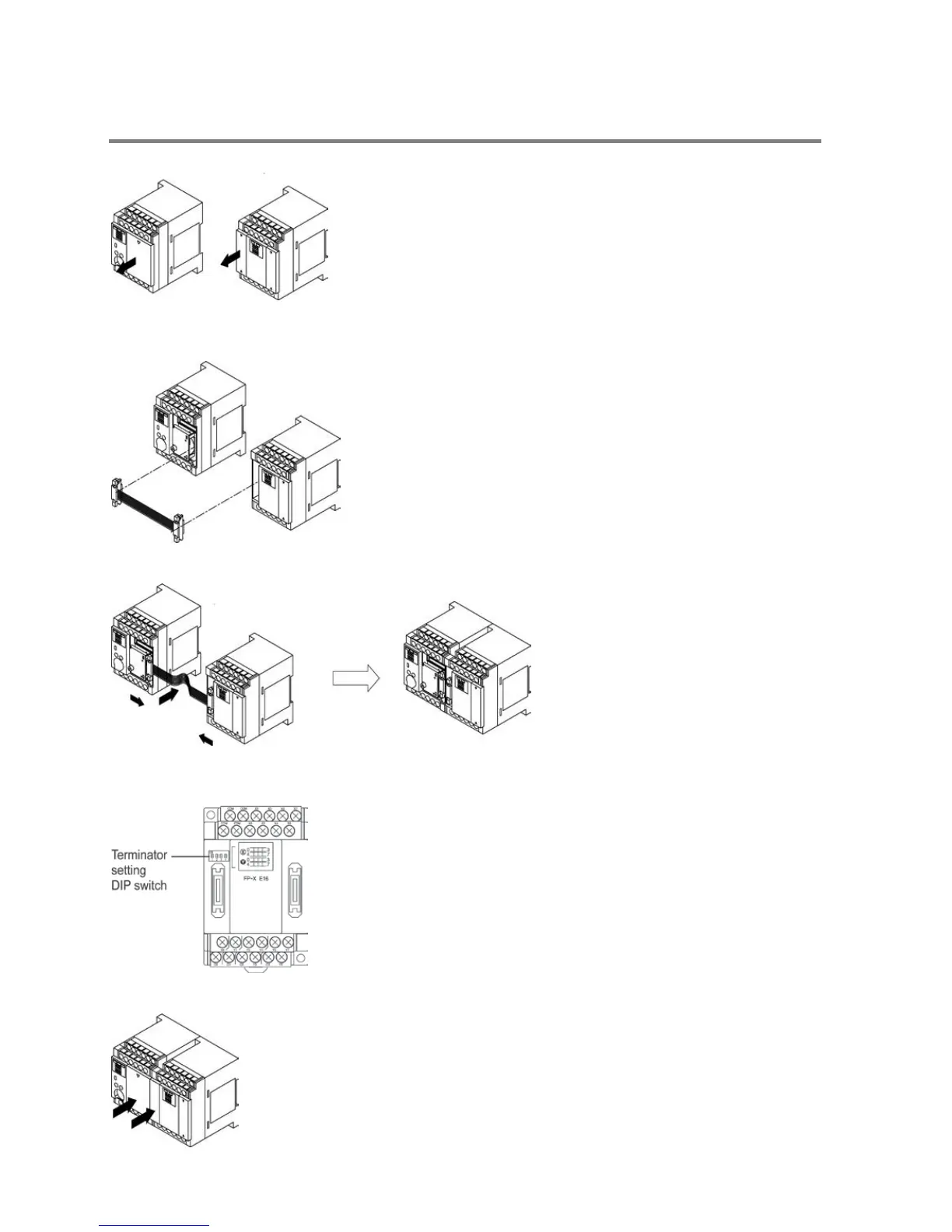

5.2.1 Expansion Method of FP-X Expansion Unit
1. Remove the expansion cover.
2. Fit the expansion connector cable into the expansion connector part of the control unit and the
one (left side) of the expansion I/O unit.
3. Push the expansion connector cable inside to touch the units each other.
4. Set the terminator setting switch. All the switches of the expansion unit installed at the last
position should be on.
5. Install the expansion cover.
