Panasonic DP-3000 User Manual

11

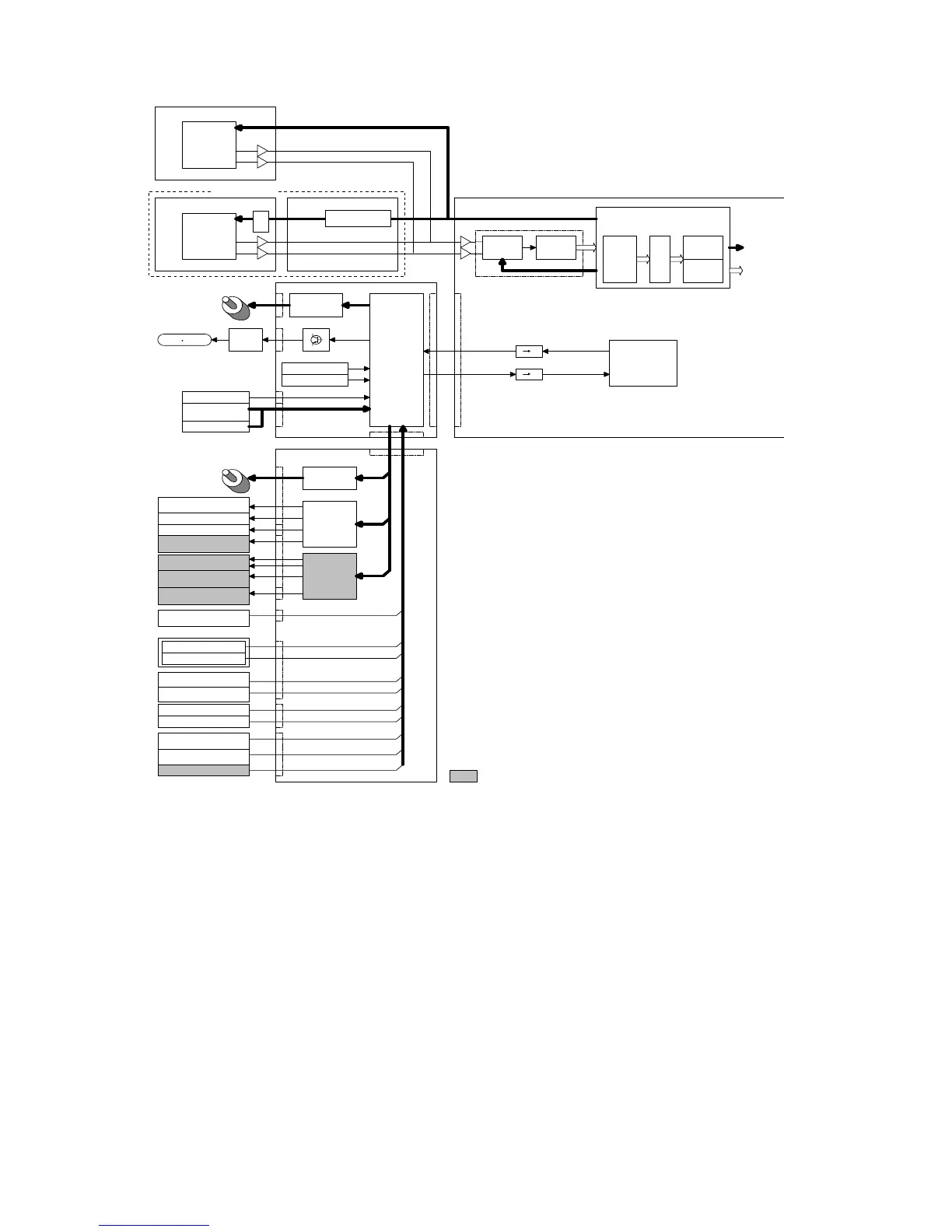

1.1.4. Scanning Circuit
1. Scanning LSI
MN86076 (IC51) is a Scanning LSI and generates Shading Correction, MTF Correction, Reduction/
Enlargement, and Gray Scale Error Diffusion. The Image Signal is converted to binary signal and
transported.
2. Scanning Mechanism Control CPU
M30620 is a 16 bit type of CPU that controls scanning mechanism. It controls TX Motor, Scanning
LED, Verification Stamp, Sensor Detection, and Solenoid Drive Control.
3. TX Motor Drive Circuit
TX Motor Drive Circuit is controlled by SLA7042M and SLA7044M (SCN PCB IC2, ADF PCB IC1).
SC (1983)
ADF (DZEP000473)
SCN (19114)
SNS (DZEP000474)
MN86076(IC51)
CCD (207) CONS (19158)
LVDS(IC5)
STEPPING
MOTOR
uPD3747
(IC3)
SLA7042M
(IC2)
STAMP SOLENOID
LED LAMP
M30620
(IC1)
ADF COVER SENSOR
B4 WIDTH SENSOR
A3 WIDTH SENSOR
(IC54)
(IC55)
CCD (207)
(For DP-2000/2500)
(For DP-3000)
uPD3747
(IC1)
SIZE SENSOR 1
SIZE SENSOR 3
SIZE SENSOR 1
SIZE SENSOR 3
OPEN SENSOR
ANGLE SENSOR
ADF
MOTOR
SLA7044M
(IC1)
TD62318
(IC5)
TD62318
(IC4)
RELEASE LEVER
PLATE SOLENOID
FEED 2 ROLLER
CLUTCH
ADF ROLLER CLUTCH
ORIGINAL STOPPER
SOLENOID
REVERSING 1 GUIDE
SOLENOID
INVERTING ROLLER
CLUTCH
ORIGINAL LENGTH
SENSOR2
ORIGINAL LENGTH
SENSOR1
CN8
CN9
CN6
CN7
CN2
CN103
CN3
CN21
CN22
CN25
CN26
CN24
CN28
READ POINT SENSOR
CN29
DUPLEX EJECT
SENSOR
REVERSING GUIDE
SENSOR
CN30
EJECT SENSOR
ORIGINAL DETECTION
SENSOR
CN27
CPU SH2
(IC1)
: ADF is not mounted
Inverter
Analog
Master
A/D
Converter
Analog Front End
Serial I/F
Shading
Correction
Reduction /
Enlargement
Binary
Gray Scale
Error
Diffusion
Binary Data
Gray Scale Data
(Copy,
Communication)
(PC Scanner)
(To IC28)
Scanning Data
Signal Output
5 3V
3 5V
LVDS(IC1)
