147

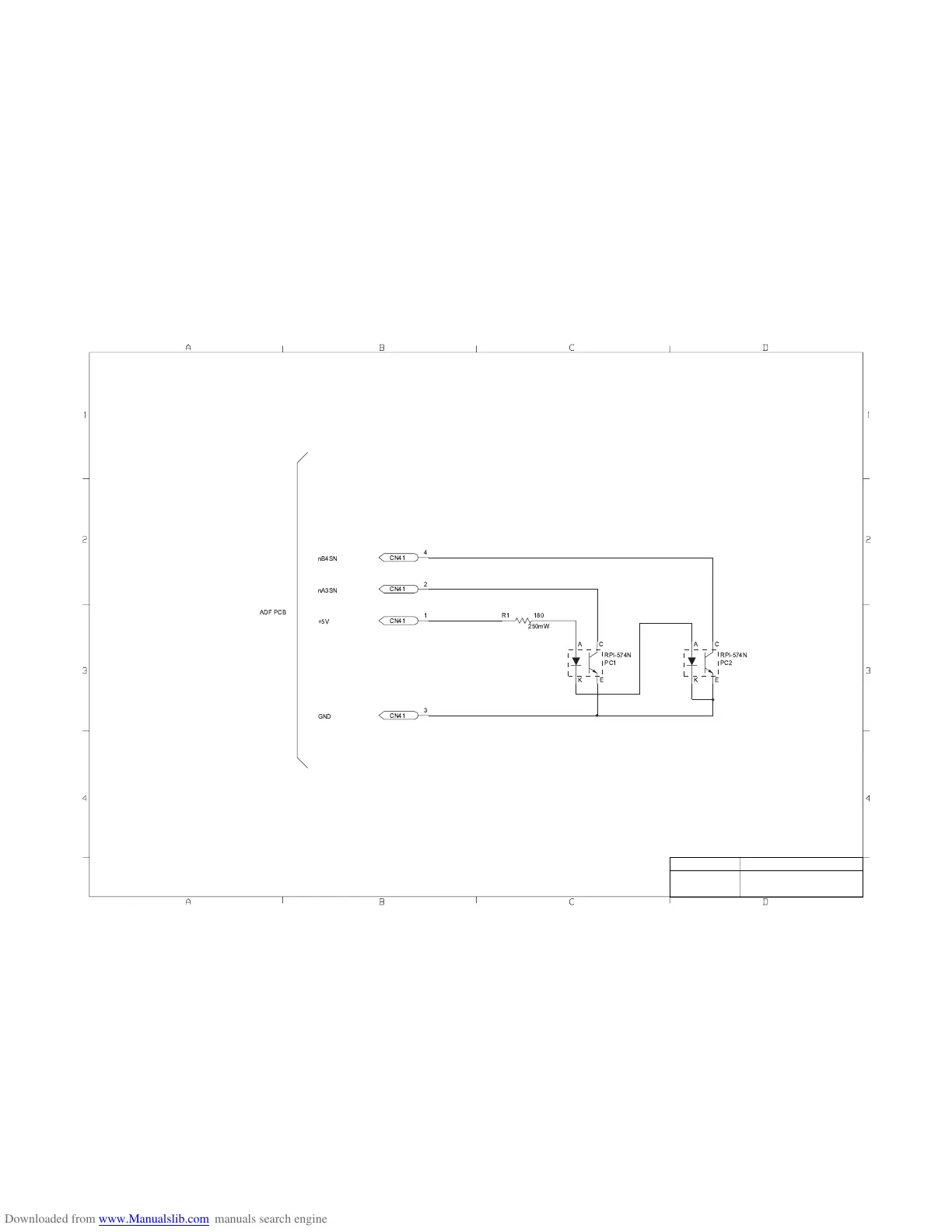

2.26. SNS PC Board
Drawing Name
SNS PC Board (1/1)
Model
DP-2000/2500
/3000
RPI-574N
PC1
EK
A
C
RPI-574N
PC2
EK
A
C
180
250mW
R1
CN41
1
CN41
2
CN41
3
CN41
4
nB4SN
nA3SN
GND
+5V
ADF PCB
