1.1.13. Line Control Board

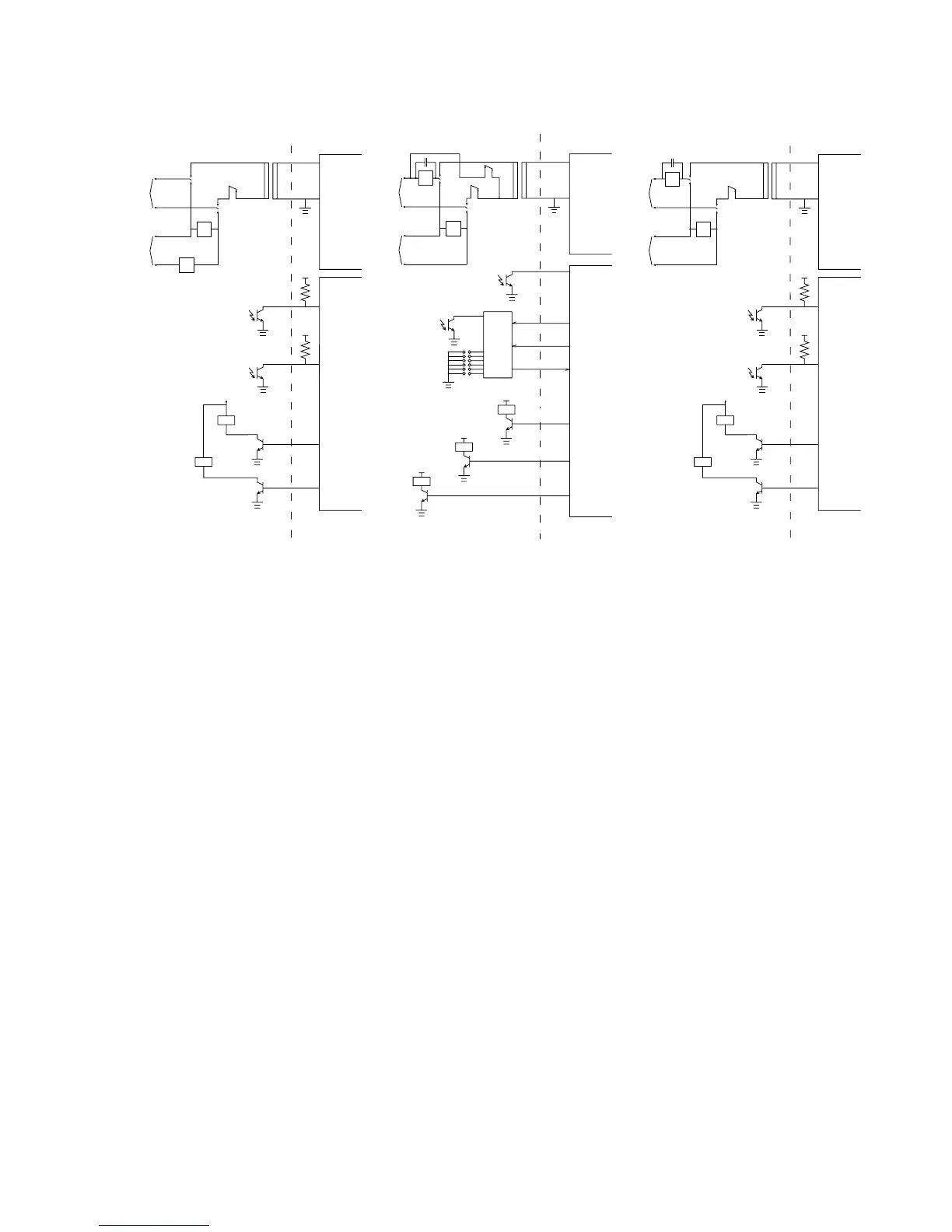

The following shows a block diagram of the Line Control Board.
The Ring Detector consists of a photocoupler, PC2 (PC1 for LCE), and its peripheral circuits. The ringing
signal is a half-wave rectifier in the Ring Detector, and transferred through the nCTON signal line to the
IC80 on the SC PC Board. The IC80 observes the signal to distinguish from signals caused by chattering.
The Off-Hook Detector (External Telephone) circuit consists of the photocoupler, PC1 (PC2 for LCE), and
its peripheral circuits. When PC1 detects loop current flow, it emits a Low active output signal (nHKOF) to
the IC80 which monitors it for a specified time. If the IC80 detects no change in the Low signal level, it deter-
mines that the External Telephone is Off-Hook.
