1.1.15. Laser Printer Motor Drive Circuit
1. System Description
It consists of 16 bit CPU M30620SFP (for DP-2000/2500) or M30805SGP (for DP-3000), FROM for
programming, peripheral I/O, and IPC Micro computer for Finisher I/F. The CPU controls mechanism of
Laser Printer, Fuser Lamp temperature, and Laser Unit.

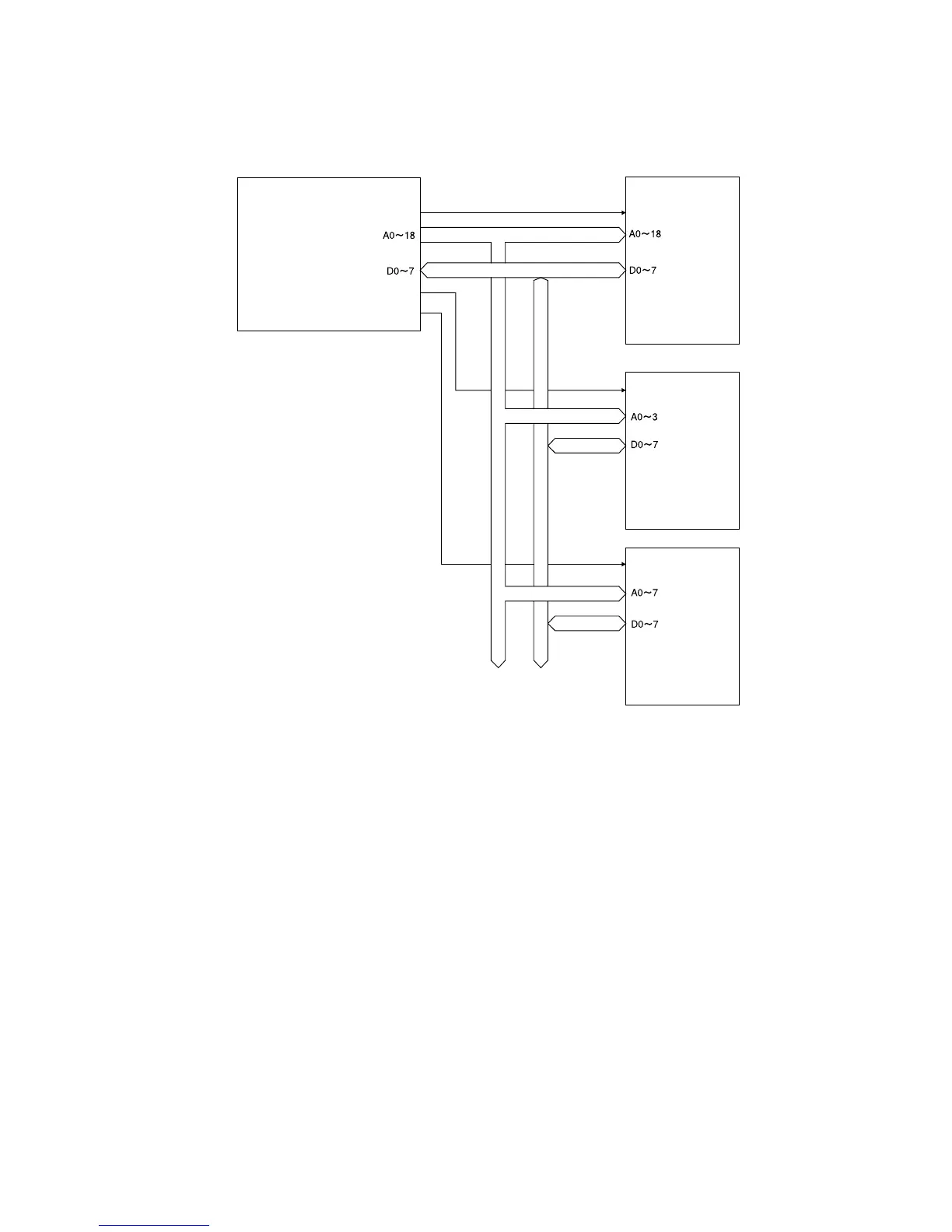

CPU
(M16C/62:DP-2000/2500)
(M16C/80:DP-3000)
F-ROM
(512KB)
nCS0
nCS
nCS1
nCS2
API
IPC
nCS
nCS
