18
VQT1H64
Before using

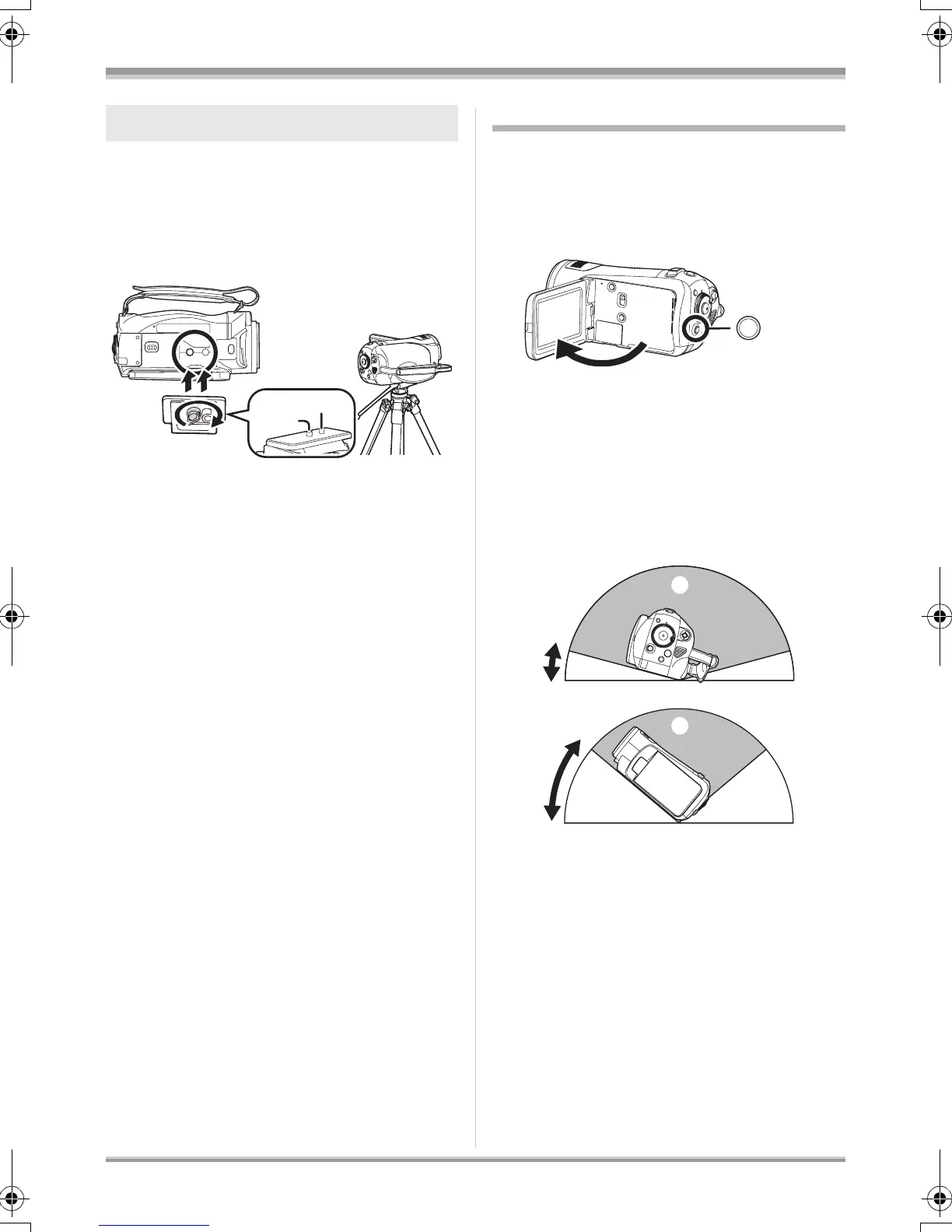

The tripod receptacle is a hole used to mount a
tripod for the unit. Use of Panasonic’s
VW-CT45E (optional) standard tripod is
recommended. (For details on mounting the
tripod, refer to the operating instructions for the
tripod.)
A Camera base
B Screw for mounting the unit
C Tripod pin
≥ You can perform operations easily using the
remote control when the tripod is used. (l 19)
≥ The SD card/battery cover cannot be opened
when the tripod is used. Insert an SD card and
the battery before attaching this unit to the
tripod. (l 24, 30)
Using the LCD monitor
You can record the image while viewing it on the
LCD monitor.
1 Press the LCD OPEN button and
then open the LCD monitor.
≥ It can open up to 90o.
≥ Place this unit level and then press the
LCD OPEN button. Depending on the angle of
this unit, the LCD monitor may not open
automatically. In this case, open it with your
hand.
Angles at which the LCD monitor will open
and not open automatically
A Angle at which it will not open
B Angle at which it will open
C Approx. 15o
D Approx. 40o
Tripod receptacle
A
C
B
LCD
OPEN
A
BB
A
BB
C
D
