Panasonic KX-TDA100D

Indication Colour Description
LINE 8
LINE 7
LINE 6
LINE 5
LINE 4
LINE 3
LINE 2
LINE 1
Green Line status indication (LINE 1 to LINE 8):
Refer to "LINE LED Pattern" below for details.
Note
LINE 5 to LINE 8 are for BRI8 card only.

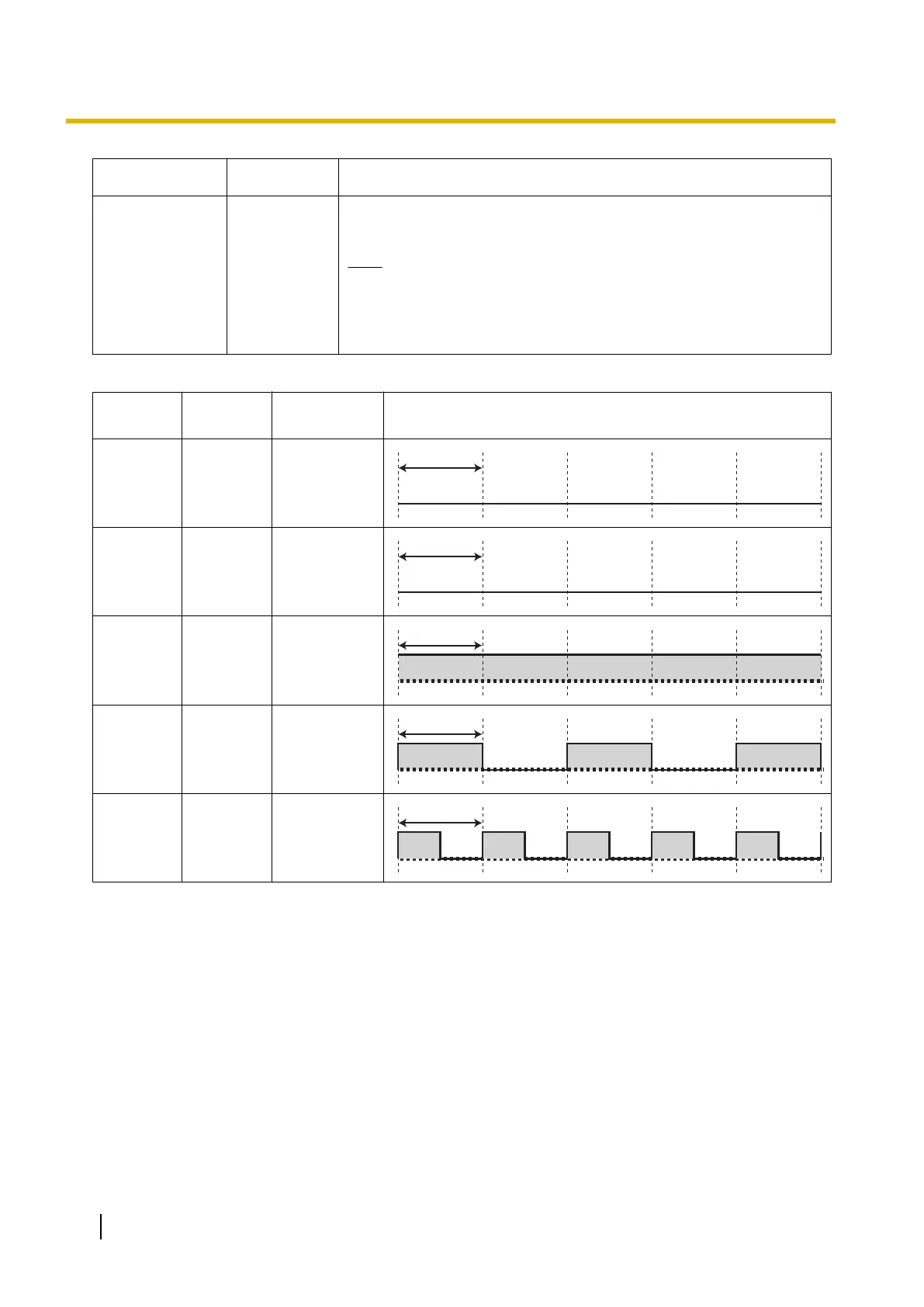

LINE LED Pattern
Layer 1 Layer 2
Master
Clock
LED Pattern
OFF OFF OFF
1 s
ON OFF OFF
1 s
ON ON OFF
1 s
ON OFF ON
1 s
ON ON ON
1 s
Layer 1: ON (Synchronous)
Layer 2: ON (Link established)/OFF (Link not established)
Master Clock: ON (Master)/OFF (Slave)
78 Installation Manual
2.4.9 BRI4 Card (KX-TDA0284) and BRI8 Card (KX-TDA0288)
