Panasonic PT-JX200GWU

Chapter 7 Appendix — Specications
148 - ENGLISH

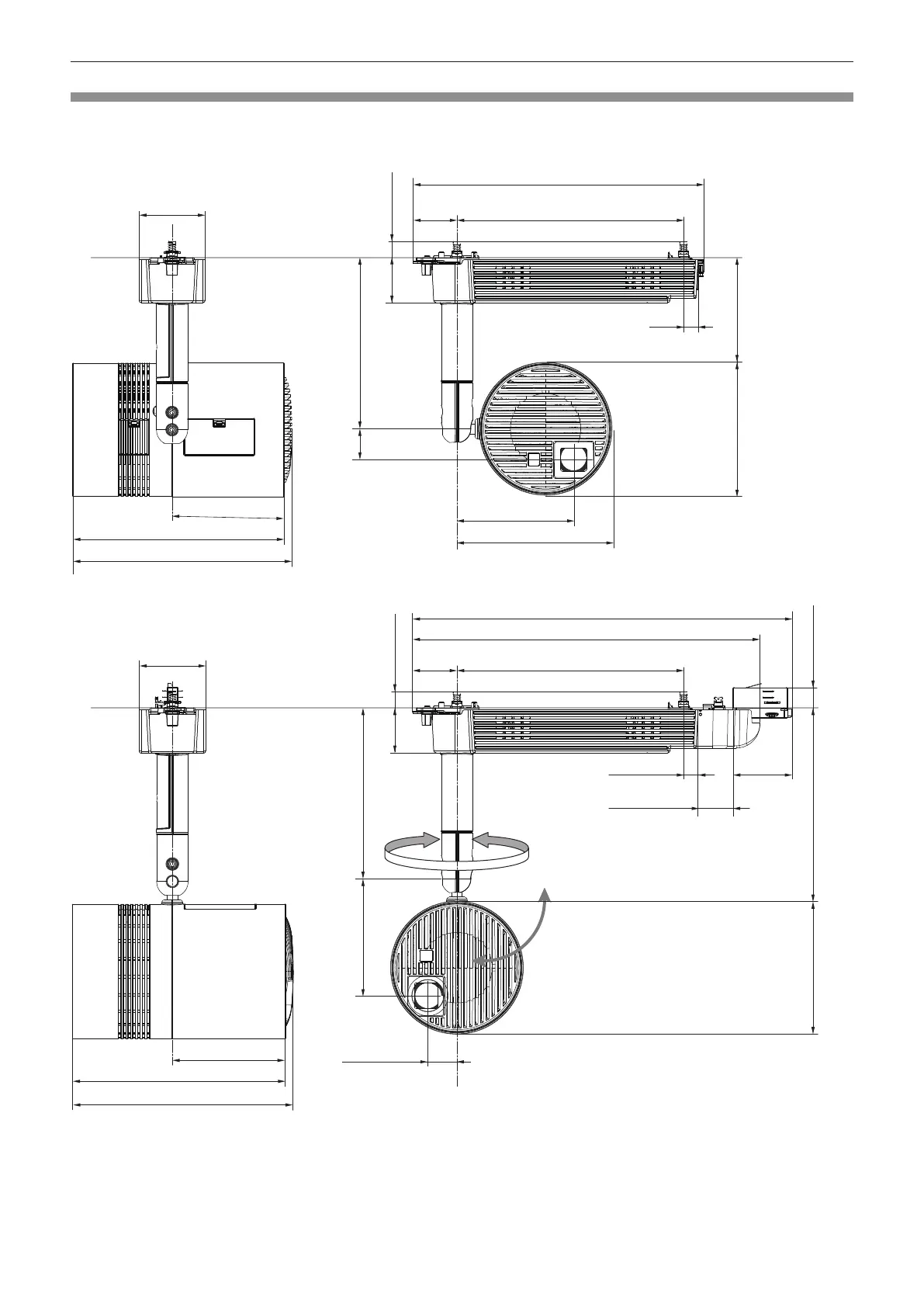

Dimensions
Unit: mm
290.0 (11-13/32")
198.5 (7-13/16")
149.2 (5-7/8")
56.0
(2-7/32")
84.0
(3-5/16")
84.0
(3-5/16")
142.5 (5-5/8")
268.9 (10-19/32")
278.8 (10-31/32")
142.5 (5-5/8")
268.9 (10-19/32")
278.8 (10-31/32")
18.7 (3/4")
372.4 (14-21/32")
57.4
(2-1/4")
218.8 (8-5/8")
37.1
(1-15/32")
218.8 (8-5/8")
149.2 (5-7/8")
133.8 (5-9/32")
247.4 (9-3/4")φ170.0 (6-11/16")
20.8 (13/16")
26.0 (1-1/32")
290.0 (11-13/32")
56.0
(2-7/32")
75.9 (3")
30.0 (1-3/16") -
50.0 (1-31/32")
18.5 (23/32")
37.1 (1-15/32")
443.6 (17-15/32")
471.0 (18-17/32") - 491.0 (19-11/32")
57.4
(2-1/4") 20.8 (13/16")
360°
φ170.0 (6-11/16")
r Excluding the adapter
r Including the adapter
Ball joint movable range:
Approximately 90°
* Actual dimensions may differ depending on the product.
