Chapter 4 Settings — [SETUP] menu
72 - ENGLISH

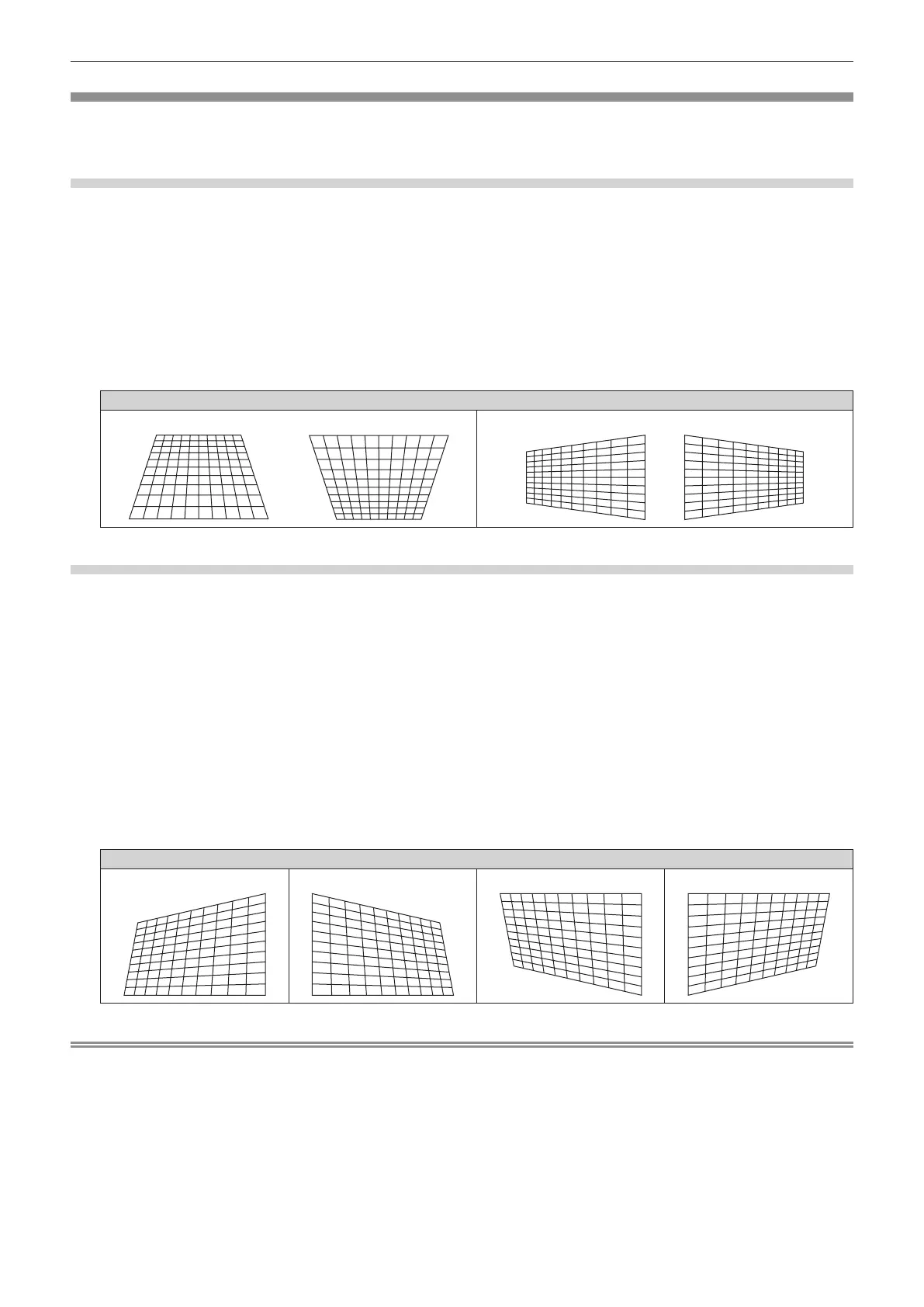

[KEYSTONE]
Correct keystone distortion that occurs when the projector main unit (projection lens surface) does not directly
face the projection surface.
Setting [HV CORRECTION]
1) Press as to select [KEYSTONE].
2) Press the <ENTER> button.
3) Press as to select [HV CORRECTION].
4) Press the <ENTER> button.
f The [HV CORRECTION] individual adjustment screen is displayed.
5) Press asqw to adjust.
[HV CORRECTION]
[VERTICAL] [HORIZONTAL]
Setting [CORNER CORRECTION]
1) Press as to select [KEYSTONE].
2) Press the <ENTER> button.
3) Press as to select [CORNER CORRECTION].
4) Press the <ENTER> button.
f The [CORNER CORRECTION] screen is displayed.
5) Press as to select the item to adjust, and press the <ENTER> button.
f The [CORNER CORRECTION] individual adjustment screen ([UPPER LEFT], [UPPER RIGHT], [LOWER
LEFT], or [LOWER RIGHT]) is displayed.
6) Press asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT]
Note
f Either one of [HV CORRECTION] or [CORNER CORRECTION] is enabled. When adjusting [HV CORRECTION] or [CORNER
CORRECTION] after the other item has been adjusted, the previous setting value will be reset.
f Pressing the <ENTER> button while the [CORNER CORRECTION] individual adjustment screen is displayed will display the individual
adjustment screen for the next corner.
f The display position of the [CORNER CORRECTION] individual adjustment screen ([UPPER LEFT], [UPPER RIGHT], [LOWER LEFT], or
[LOWER RIGHT]) changes depending on the setting of [PROJECTION METHOD] and [VERTICAL FLIP] to ensure a proper view of the
characters in the projected image.
f Correcting up to ±40° for the tilt in the vertical and horizontal directions (maximum value when adjusting only [VERTICAL] or
[HORIZONTAL]) are available for [KEYSTONE] adjustment. However, the image quality will degrade and it will get harder to focus with more
correction. Install the projector so that the correction will be as small as possible.
f Screen size will also change when [KEYSTONE] is used to perform various adjustments.
f Aspect ratio of the image size may shift depending on the amount of correction or lens zoom value.
