Panasonic PT-JX200GWU

Chapter 2 Getting Started — Before the installation
ENGLISH - 29
ABC
ABC
ABC
ABC
ABC
ABC
ABC
Attention
f When setting up the projector, please pay attention to the cable between the main body and the pole.

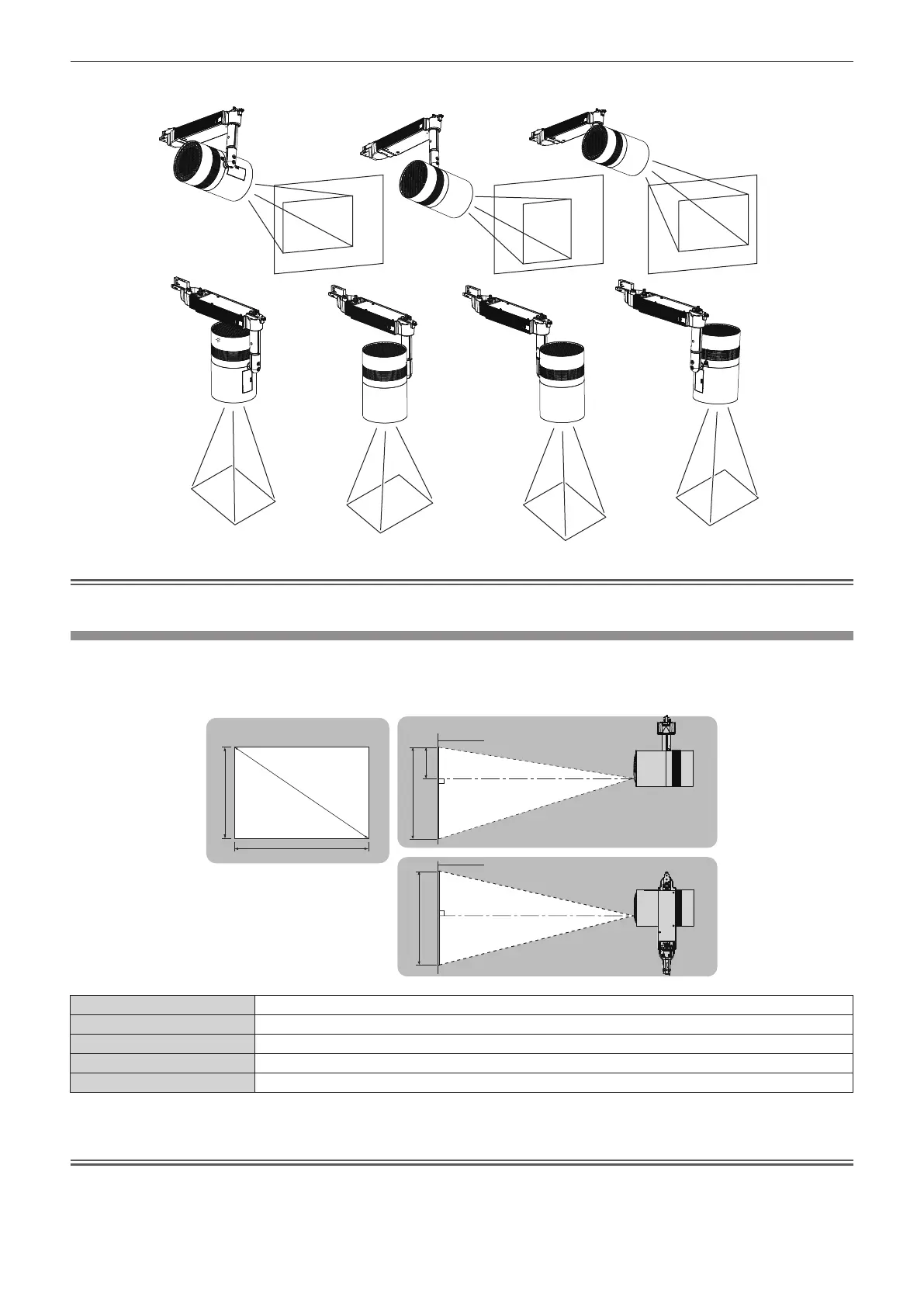

Projection dimensions
Determine the position to install the track system and the projector referencing following illustrations and
projection distance dimensions. The size and position of the projected image can be adjusted according to the
area and position of the projection surface.
SD
L (LW/LT)
L (LW/LT)
SW
SH
H
SH
SW
Projected image
Projection surface
Projection surface
L (LW/LT)
*1
Projection distance (distance from the projection lens surface to the projection surface) (m)
SH Image height (m)
SW Image width (m)
SD Image diagonal size (m)
H Distance from the lens center to the image upper end (m)
*1 LW: Minimum projection distance
LT: Maximum projection distance
Attention
f Before setting up, read “Precautions for use” (x page 16).
f Do not use the projector and the high-power laser equipment in the same room. The DLP chip can be damaged if a laser beam hits the lens
surface.
