Chapter 1 Preparation — About your projector
24 - ENGLISH
20 Ball joint stopper
To free the ball joint movable part, remove the stopper.
(x page 38)
21 Connecting terminals cover (x page 24)
The connecting terminals are inside.
22 Pole
23 Shaft holder
24 Ball joint movable part
25 Shaft
26 Ball joint

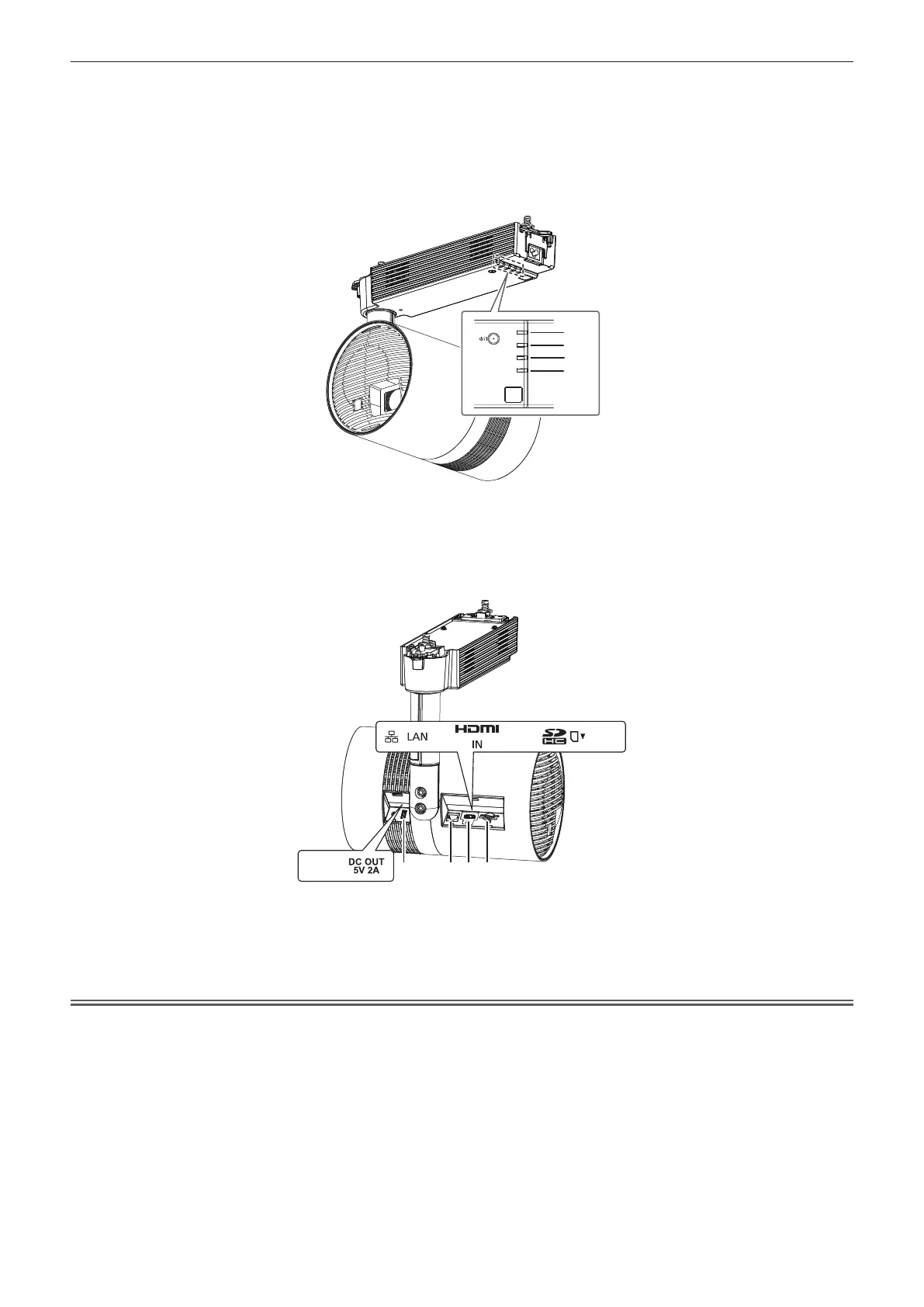

r Indicators
ON
(
G
)
/
STANDBY
(
R
)
LIGHT
TEMP
SD
1
2
3
4
1 Power indicator <ON (G)/STANDBY (R)>
Indicates the status of the power. (x page 46)
2 Light source indicator <LIGHT>
Indicates the status of the light source. (x page 134)
3 Temperature indicator <TEMP>
Indicates the internal temperature status. (x page 134)
4 SD card indicator <SD>
Blinks in green when accessing the SD card.
r Connecting terminals and <DC OUT> terminal
21 3 4
1 <DC OUT> terminal
This is the USB terminal only used for power supply. (DC 5 V,
Maximum 2 A)
2 <LAN> terminal
This is the terminal to connect to the network. (x page 43)
3 <HDMI IN> terminal
This is the terminal to input HDMI signal. (x page 43)
4 SD card slot
Supports SD memory card and SDHC memory card.
(x page 53)
Attention
f The LAN cable connecting to the projector directly should be wired indoors only.
f Store small parts such as SD card in an appropriate manner, and keep them away from small children.
