Panasonic TH-37PHD8GK - 7 Disassembly TH-37 PHD8; Removal of the; Removal of the HA-Board and the HB-Board; Removal of the Slot Block

7 Disassembly TH-37PHD8
· To disassemble P.C.B. , wait for 1 minute after power was
off for discharge from electrolysis capacitors.
·
and marks indicate screw positions.

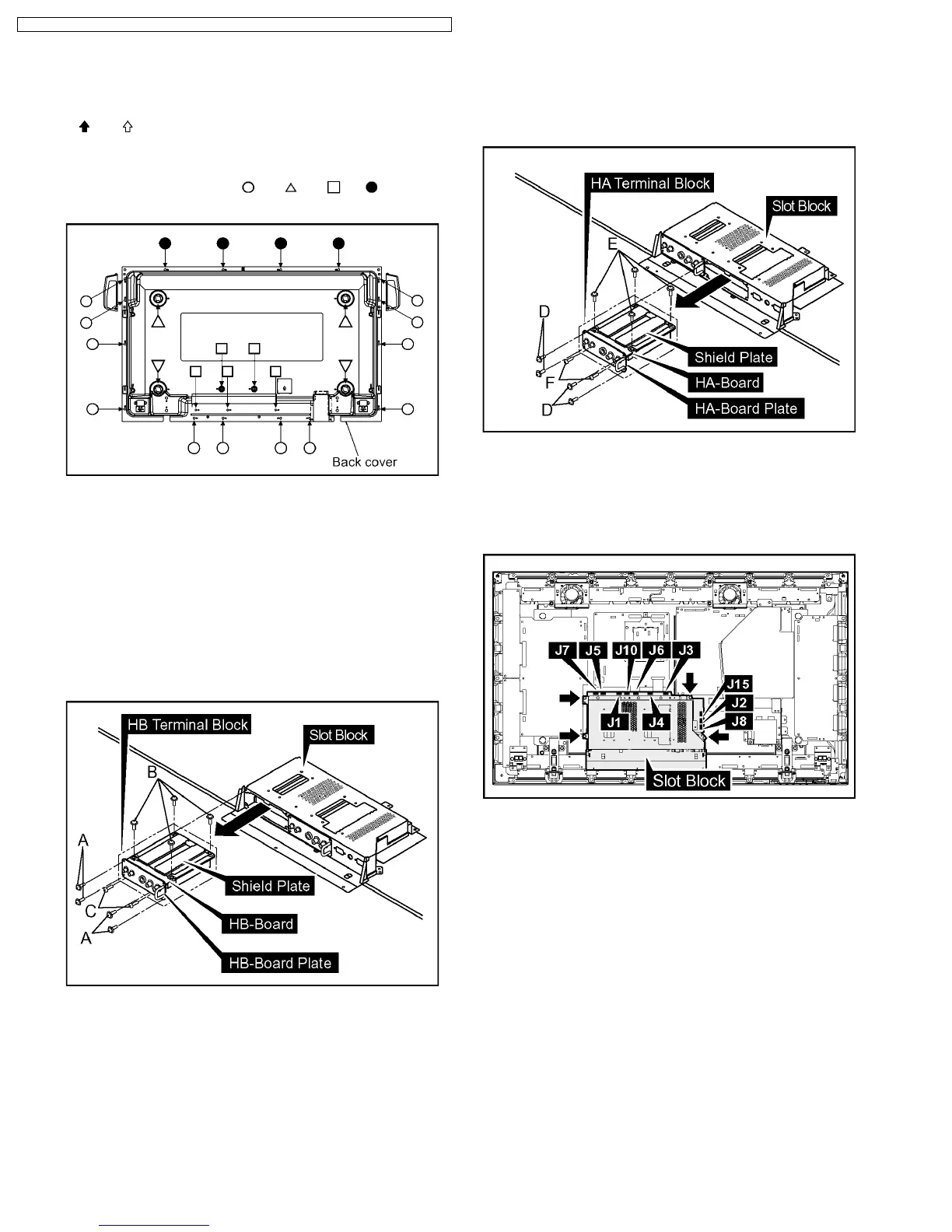

7.1. Removal of the Back Cover
1. Remove the screws (×12 ,×4 ,×5 ,×4 ) and then
remove the Back Cover.
7.2. Removal of the HA-Board and
the HB-Board
7.2.1. TH-37PHD8UK
· Removal of the HB-Board
1. Remove the 4 screws(A) and then remove the HB Termimal
Block .
2. Remove the 4 screws(B).
3. Remove the 2 screws(C) and then remove the HB-Board.
· Removal of the HA-Board
1. Remove the 4 screws(D) and then remove the HA Terminal
Block.
2. Remove the 4 screws(E).
3. Remove the 2 screws(F) and then remove the HA-Board.
7.3. Removal of the Slot Block
1. Disconnect the couplers (J1, J2, J3, J4, J5, J6, J7, J8, J10,
J15).
2. Remove the 4 screws and then remove the Slot Block.
