Panasonic TH-37PHD8GK - Removal of the Escutcheon; Removal of the V1-Board and the V2-Board

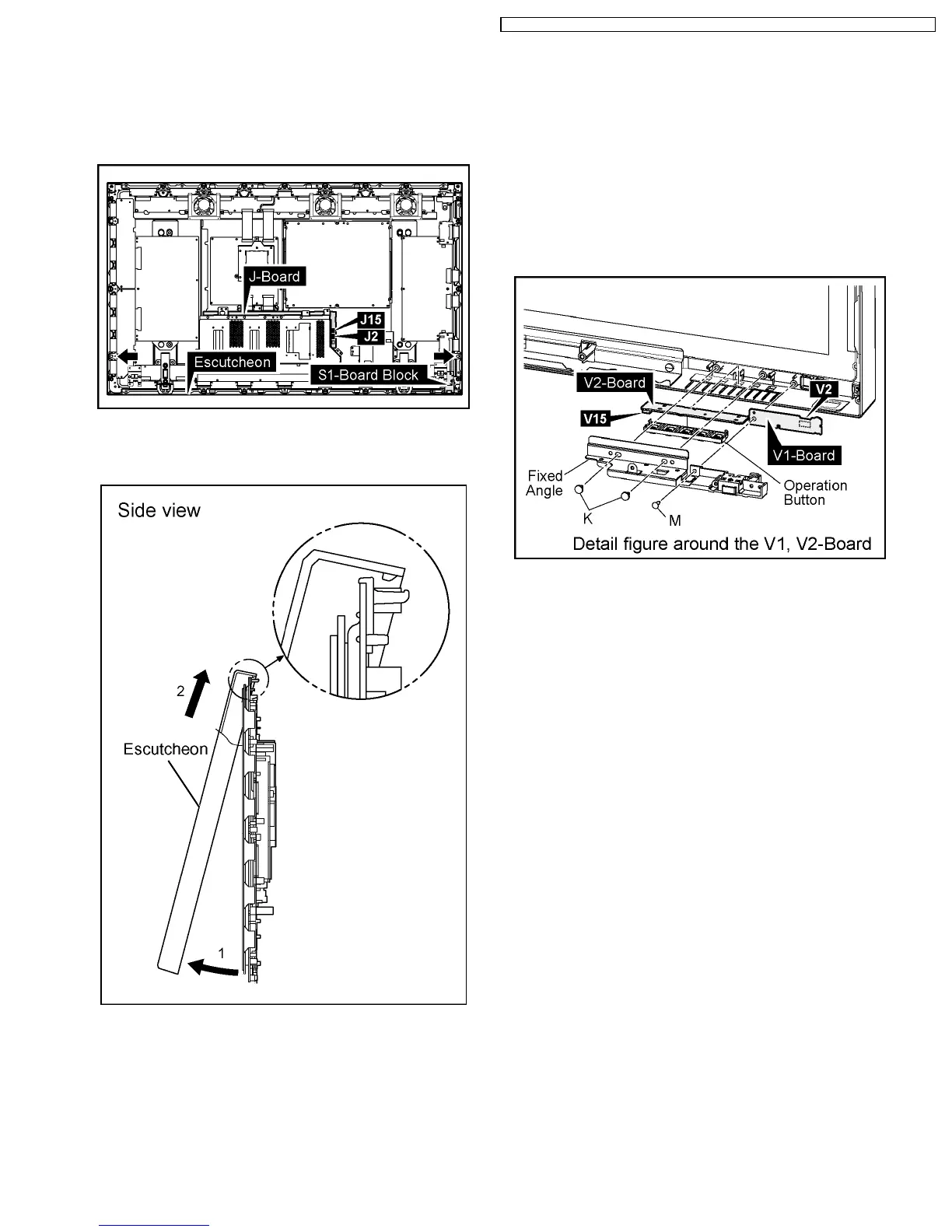

8.17. Removal of the Escutcheon
1. Remove the S1-Board Block.
(Reference to Removal of the S1-Board)
2. Disconnect the couplers(J2, J15).
3. Remove the 2 screws of the Escutcheon.
4. Pull the bottom of the Escutcheon in the direction of the
arrow1 and then lift up the Escutcheon to remove in the
direction of the arrow2.
8.18. Removal of the V1-Board and
the V2-Board
1. Operate from procedure 1 to procedure 3 of 8.17.
(Reference to Removal of the Escutcheon)
2. Remove the 2 screws(K) and then remove the Fixed Angle.
3. Remove the 1 screw(M).
4. Remove the operation button from the V2-Board.
5. Disconnect the coupler(V15) and then remove the V2-
Board.
6. Disconnect the coupler(V2) and then remove the V1-Board.
29
TH-37PHD8GK / TH-37PHD8GS / TH-37PHD8UK / TH-42PHD8GK / TH-42PHD8GS / TH-42PHD8UK
