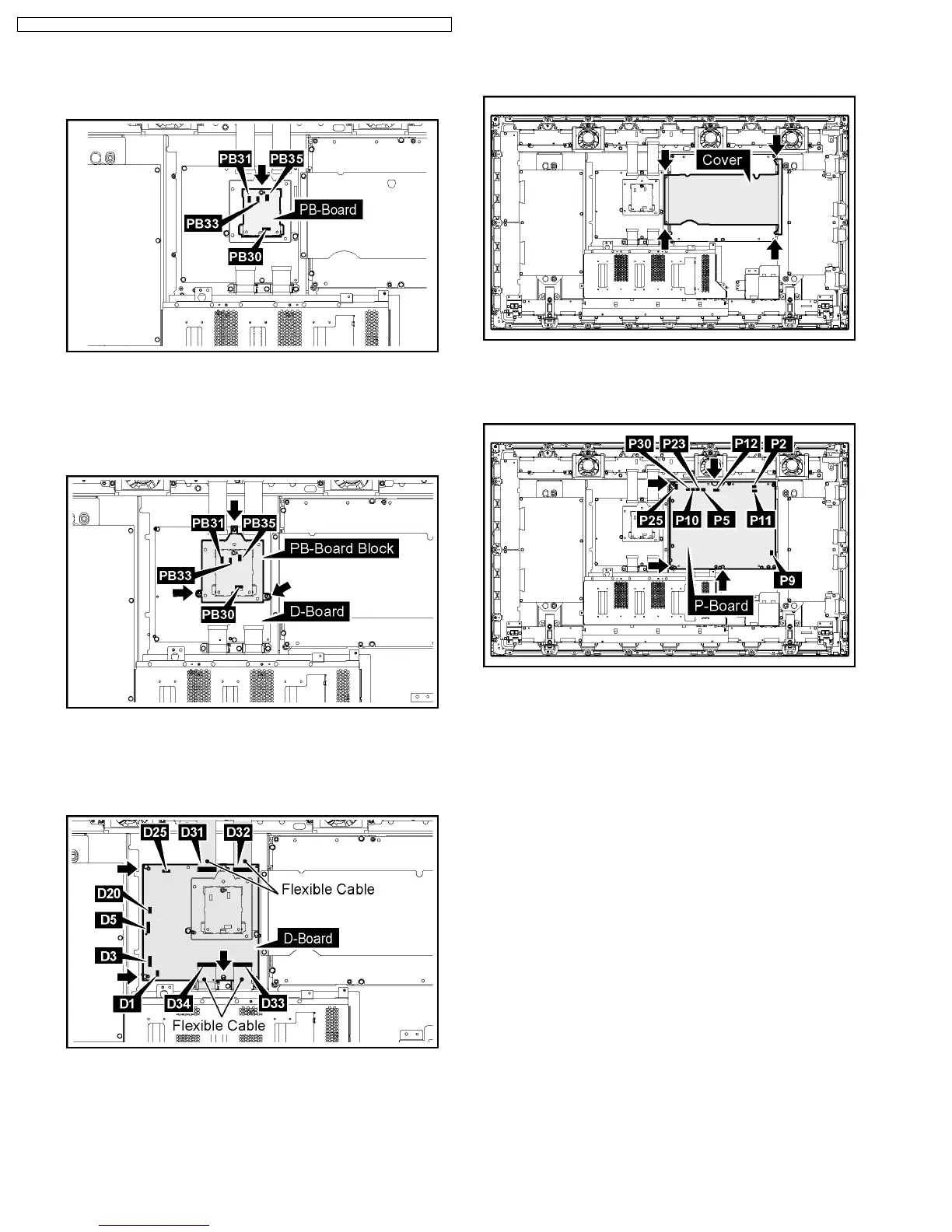

8.6. Removal of the PB-Board
1. Disconnect the couplers(PB30, PB31, PB33, PB35)
2. Remove the 1 screw and then remove the PB-Board.
8.7. Removal of the D-Board
1. Disconnect the couplers(PB30, PB31, PB33, PB35).
2. Remove the 3 screws and then remove the PB-Board
Block.
3. Disconnect the couplers(D1, D3, D5, D20, D25).
4. Remove the Flexible Cable from the couplers (D31, D32,
D33, D34).
5. Remove the 3 screws and then remove the D-Board.
8.8. Removal of the P-Board
1. Remove the 4 screws and then remove the Cover.
2. Disconnect the couplers(P2, P5, P9, P10, P11, P12, P23,
P25, P30).
3. Remove the 4 screws and then remove the P-Board.
