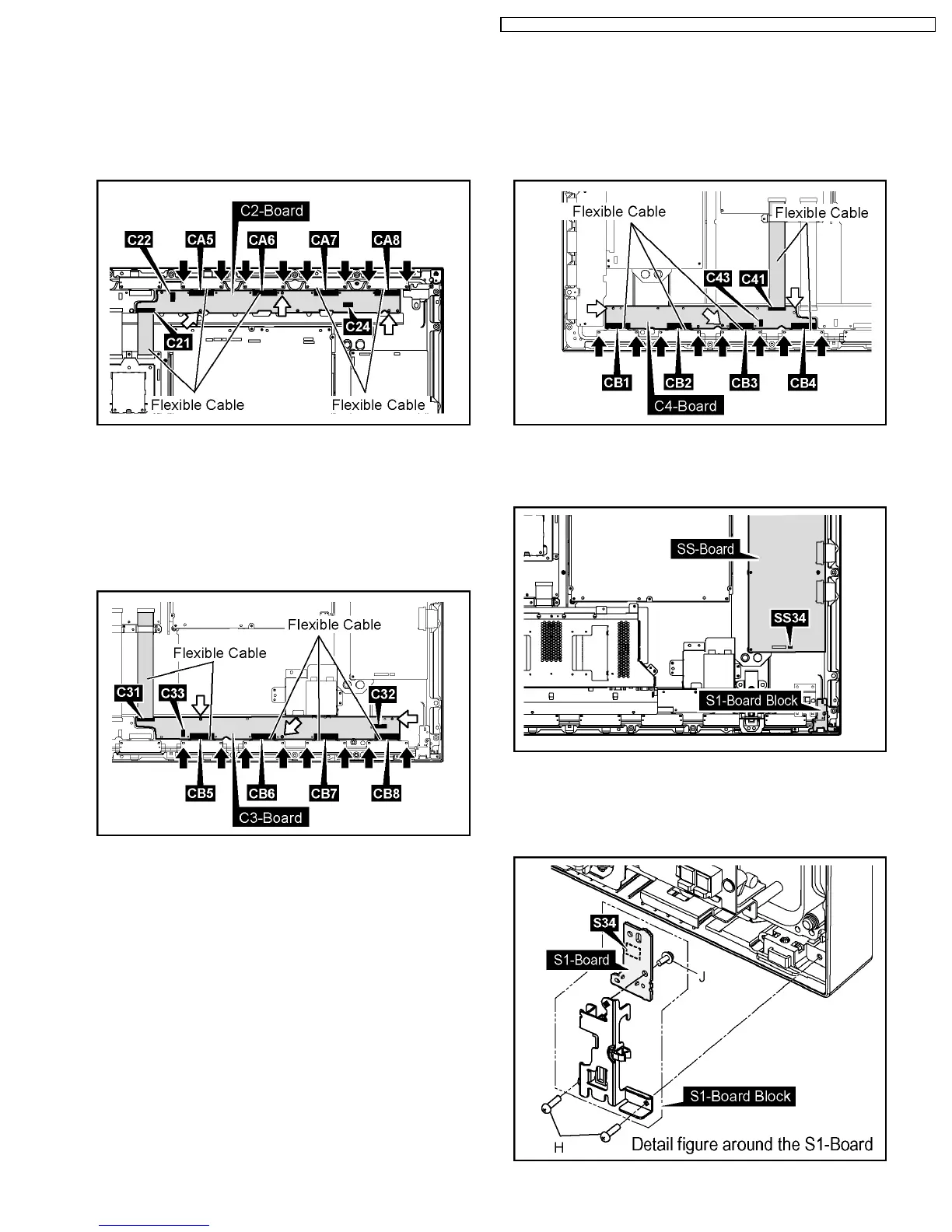

7.13.2. Removal of the C2-Board
1. Remove the Flexible Cable from the coupler(C21).
2. Disconnect the couplers(C22, C24).
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CA5, CA6, CA7, CA8).
4. Remove the 3 screws and then remove the C2-Board.
7.13.3. Removal of the C3-Board
1. Remove the Flexible Cable from the coupler(C31).
2. Disconnect the couplers(C32, C33).
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CB5, CB6, CB7, CB8).
4. Remove the 3 screws and then remove the C3-Board.
7.13.4. Removal of the C4-Board
1. Remove the Flexible Cable from the coupler(C41).
2. Disconnect the coupler(C43).
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CB1, CB2, CB3, CB4).
4. Remove the 3 screws and then remove the C4-Board.
7.14. Removal of the S1-Board
1. Disconnect the coupler(SS34).
2. Remove the 2 screws(H) and then remove the S1-Board
Block.
3. Disconnect the coupler(S34).
4. Remove the 1 screw(J) and then remove the S1-Board.
