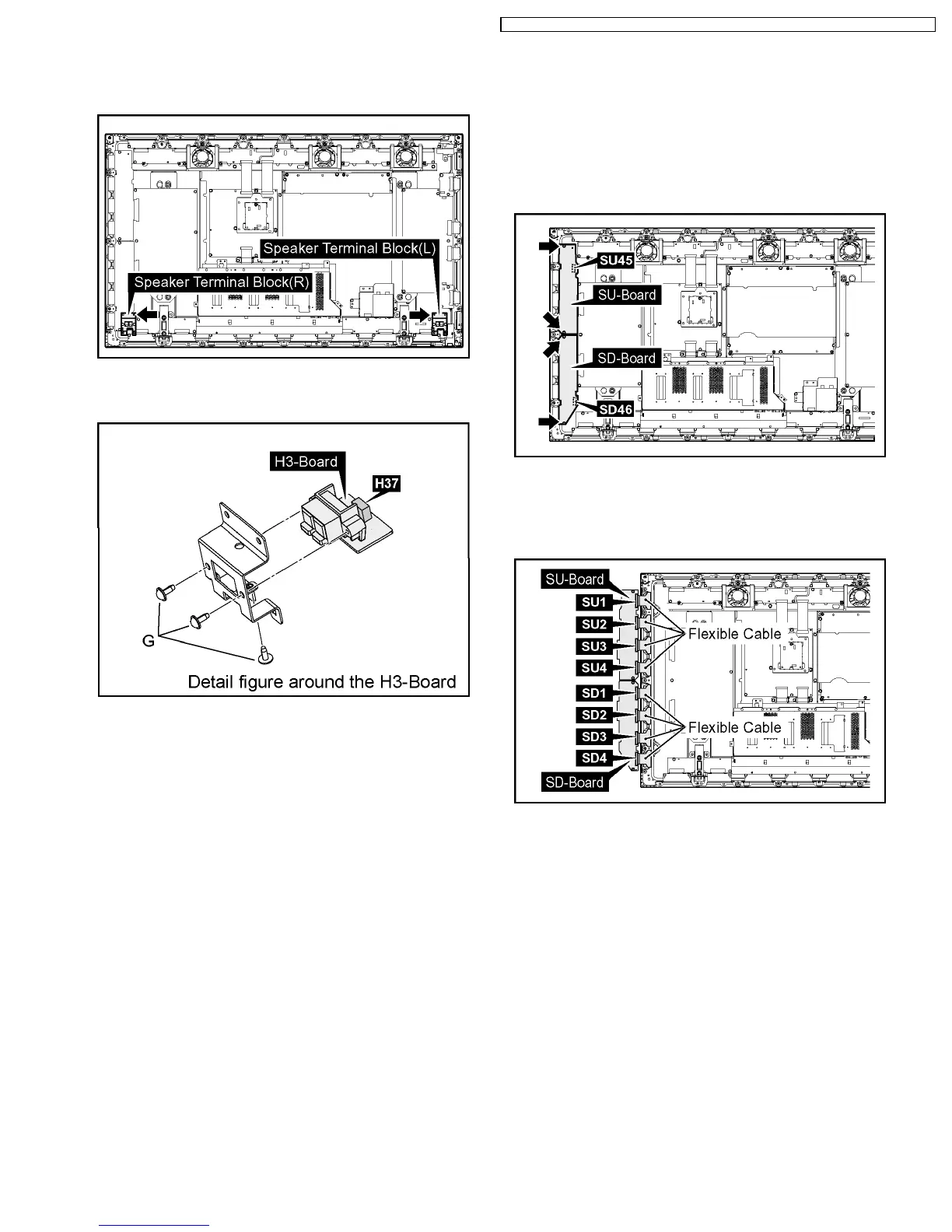

8.9. Removal of the H3-Board(L, R)
1. Remove the each 1 screw and then remove the Speaker
Terminal Block(L, R).
2. Disconnect the coupler(H37).
3. Remove the 3 screws(G) and then remove the H3-Board.
8.10. Removal of the SU-Board and
the SD-Board
1. Remove the Speaker Terminal Block(R).
(Reference to Removal of the H3-Board(L, R))
2. Remove the each 2 screws.
3. Slide the SU-Board and the SD-Board to the left.
4. Disconnect the couplers(SU45, SD46).
5. Remove the Flexible Cable from the couplers(SU1, SU2,
SU3, SU4) and then remove the SU-Board.
6. Remove the Flexible Cable from the couplers(SD1, SD2,
SD3, SD4) and then remove the SD-Board.
