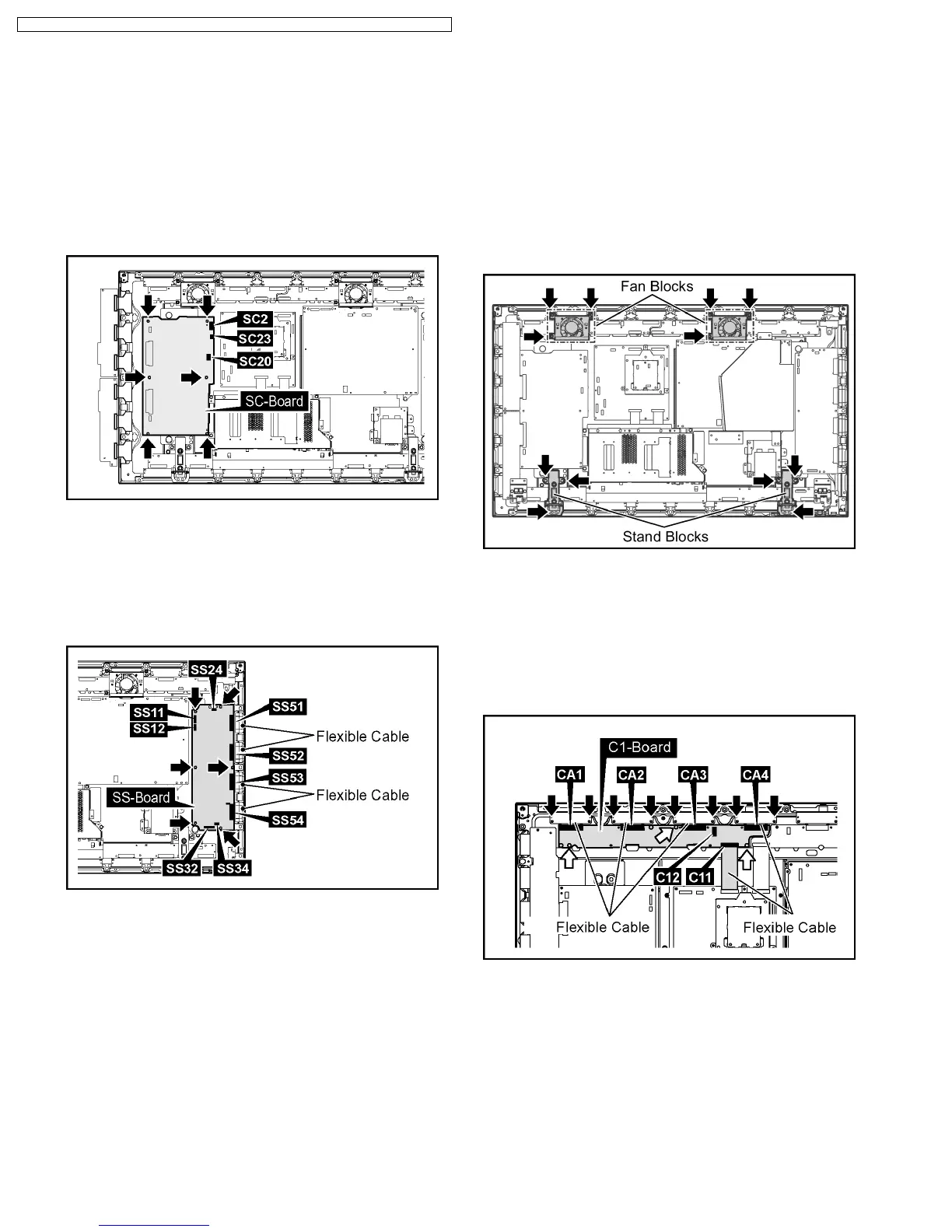

7.11. Removal of the SC-Board
1. Remove the Speaker Terminal Block(R).
(Reference to Removal of the H3-Board(L, R))
2. Remove the each 2 screws.
3. Disconnect the couplers(SU45, SD46).
4. Slide the SU-Board and the SD-Board to the left.
(Reference to Removal of the SU-Board and the SD-Board)
5. Disconnect the couplers(SC2, SC20, SC23).
6. Remove the 6 screws and then remove the SC-Board.
7.12. Removal of the SS-Board
1. Disconnect the couplers(SS11, SS12, SS24, SS32, SS34).
2. Remove the Flexible Cable from the couplers(SS51, SS52,
SS53, SS54)
3. Remove the 6 screws and then remove the SS-Board.
7.13. Removal of the C1, C2, C3 and
the C4-Board
1. Remove the Slot Block.
(Reference to Removal of the Slot Block)
2. Remove the Speaker Terminal Block(L, R).
(Reference to Removal of the H3-Board(L, R))
3. Remove the each 3 screws and then remove the Fan
Blocks.
4. Remove the each 3 screws and then remove the Stand
Blocks.
7.13.1. Removal of the C1-Board
1. Remove the Flexible Cable from the coupler(C11) .
2. Disconnect the coupler(C12) .
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CA1, CA2, CA3, CA4).
4. Remove the each 3 screws and then remove the C1-Board.
