Panasonic TH-37PHD8GK - Removal of the Slot Block; Removal of the J-Board; Removal of the HX-Board

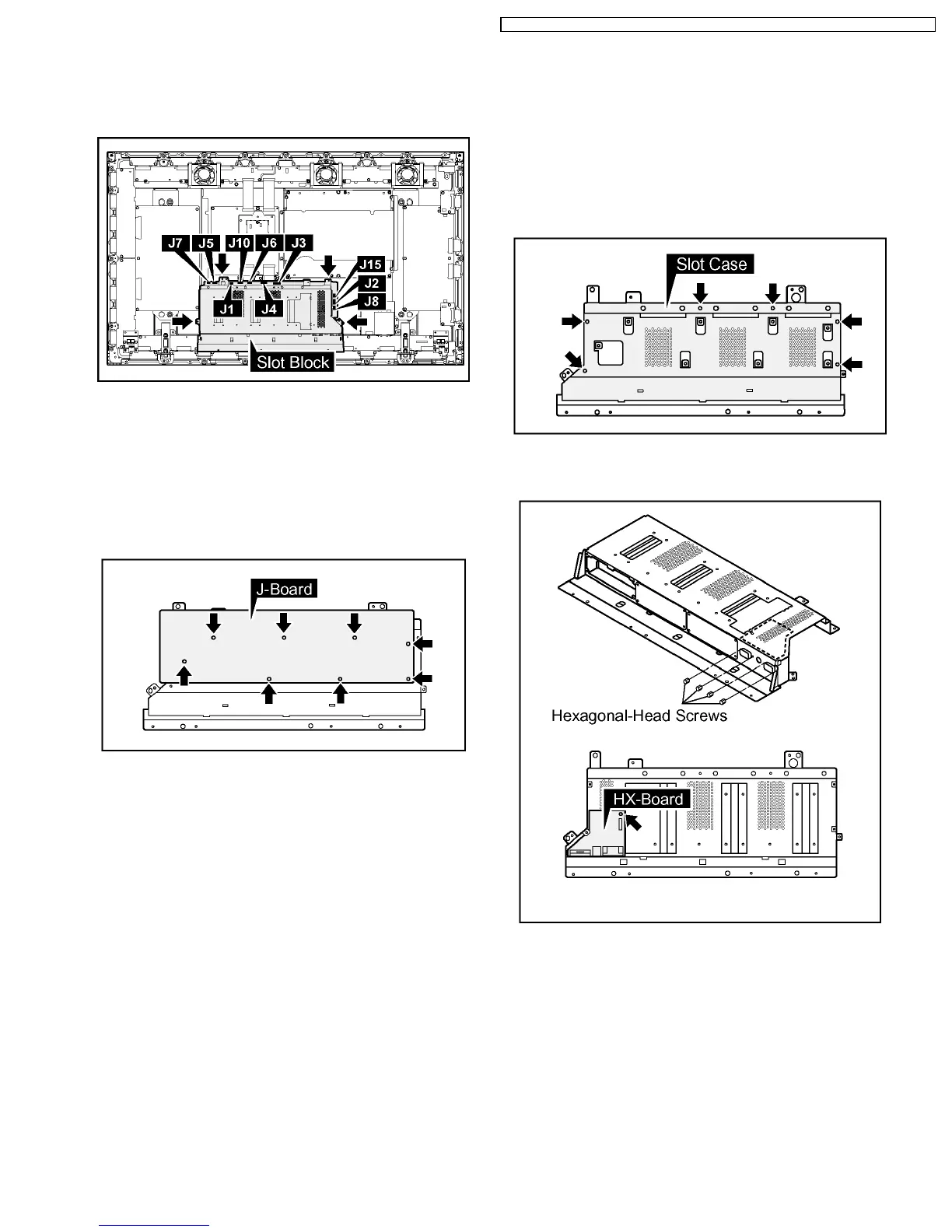

8.3. Removal of the Slot Block
1. Disconnect the couplers (J1, J2, J3, J4, J5, J6, J7, J8, J10,
J15).
2. Remove the 4 screws and then remove the Slot Block.
8.4. Removal of the J-Board
1. Remove the HA Terminal Block and the HB Terminal Block.
(Reference to Removal of the HA-Board and the HB-Board)
2. Remove the Slot Block.
(Reference to Removal of the Slot Block)
3. Remove the 8 screws and then remove the J-Board.
8.5. Removal of the HX-Board
1. Remove the HA Terminal Block and the HB Terminal Block.
(Reference to Removal of the HA-Board and the HB-Board)
2. Remove the Slot Block.
(Reference to Removal of the Slot Block)
3. Remove the J-Board.
(Reference to Removal of the J-Board)
4. Remove the 6 screws and then remove the Slot Case.
5. Remove the 4 Hexagonal-Head screws and the 1 screw
and then remove the HX-Board.
23
TH-37PHD8GK / TH-37PHD8GS / TH-37PHD8UK / TH-42PHD8GK / TH-42PHD8GS / TH-42PHD8UK
