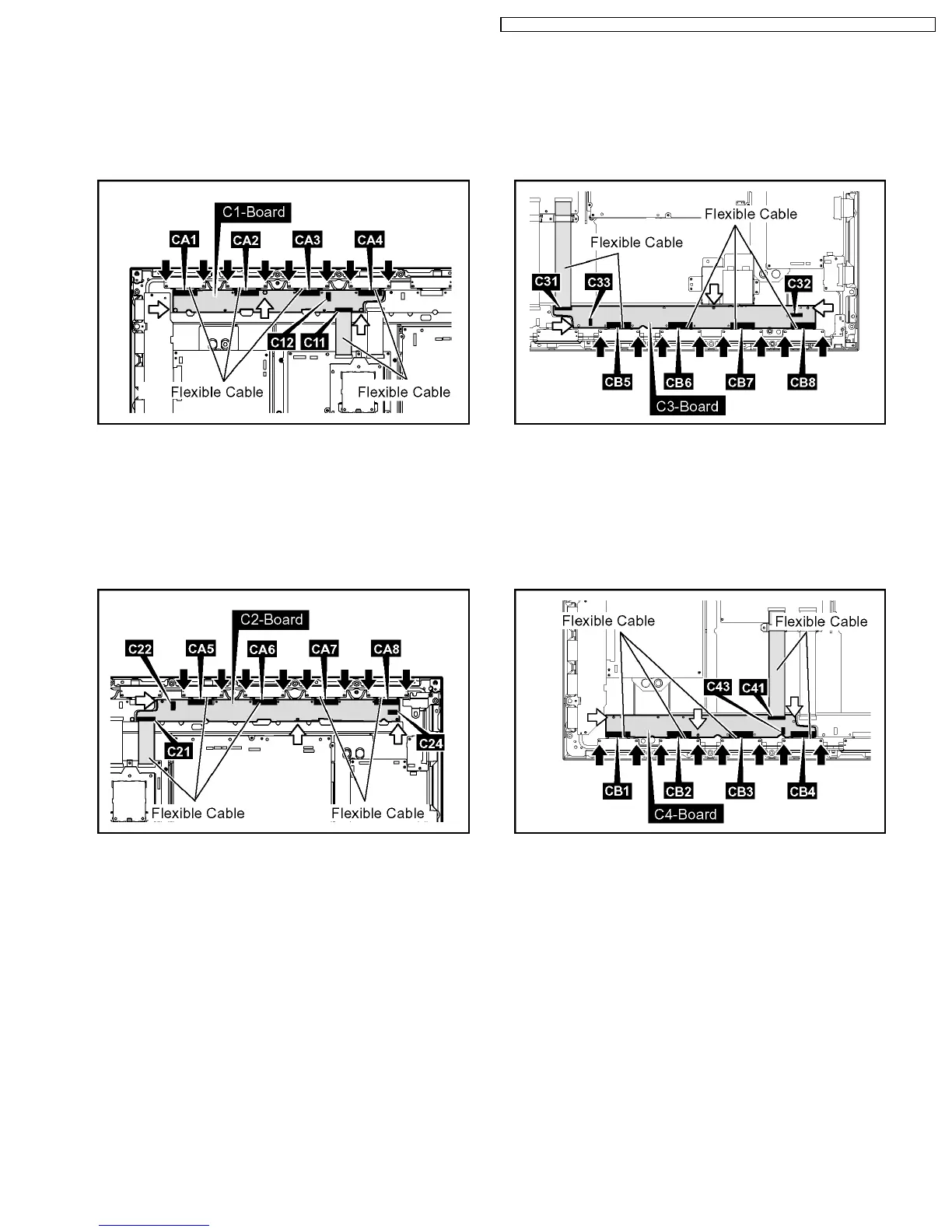

8.14.1. Removal of the C1-Board
1. Remove the Flexible Cable from the coupler(C11) .
2. Disconnect the coupler(C12) .
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CA1, CA2, CA3, CA4).
4. Remove the each 3 screws and then remove the C1-Board.
8.14.2. Removal of the C2-Board
1. Remove the Flexible Cable from the coupler(C21).
2. Disconnect the couplers(C22, C24).
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CA5, CA6, CA7, CA8, C31).
4. Remove the 3 screws and then remove the C2-Board.
8.14.3. Removal of the C3-Board
1. Remove the Flexible Cable from the coupler(C31).
2. Disconnect the couplers(C32, C33).
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CB5, CB6, CB7, CB8, C31).
4. Remove the 3 screws and then remove the C3-Board.
8.14.4. Removal of the C4-Board
1. Remove the Flexible Cable from the coupler(C41).
2. Disconnect the coupler(C43).
3. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CB1, CB2, CB3, CB4, C41).
4. Remove the 3 screws and then remove the C4-Board.
