TH-37PHD8GK/GS/UK

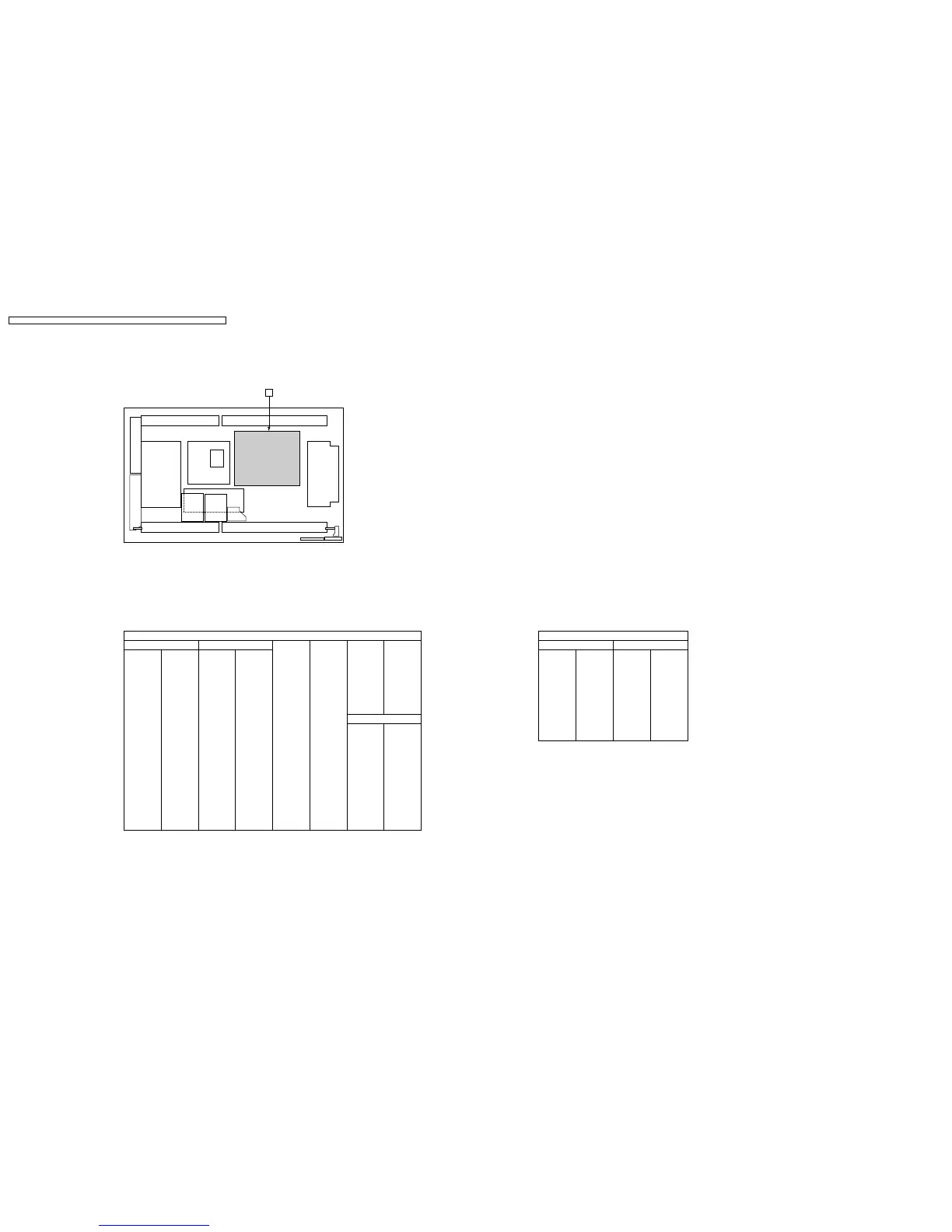

P-BOARD PARTS LOCATION
TH-37PHD8GK/GS/UK
P-BOARD PARTS LOCATION
P
Parts Location
P-BOARD (COMPONENT SIDE)
Parts Location
P-BOARD (FOIL SIDE)
TRANSISTOR
Q401 F-4
Q403 G-4
Q404 C-2
Q406 C-2
Q407 C-1
Q408 C-3
Q409 C-3
Q412 C-3
Q413 C-3
Q414 G-4
Q415 H-4
Q417 G-3
Q418 F-3
Q420 D-1
Q421 F-3
Q422 D-1
Q423 H-4
Q424 H-4
Q430 G-3
Q431 E-3
Q432 G-3
Q433 G-4
Q434 H-4
Q435 H-4
Q436 H-4
Q438 G-4
Q439 E-2
Q440 E-2
Q441 G-4
Q501 H-5
Q502 H-5
Q503 H-5
Q505 D-5
Q506 B-5
Q507 B-5
Q508 F-5
Q509 E-5
Q510 E-5
Q511 F-4
Q512 F-5
Q516 E-5
Q517 D-4
Q518 F-4
Q519 F-5
Q520 D-4
Q525 C-5
Q527 D-5
Q530 C-5
Q535 H-5
Q536 G-5
Q537 F-5
Q538 G-6
Q541 E-5
Q542 E-5
Q544 H-5
Q550 G-5
Q551 G-5
Q552 H-5
TP1 B-3
TP2 B-3
TP3 B-2
TP4 B-2
TP5 C-2
TP6 C-1
TP7 C-1
TP8 B-1
Q553 E-5
Q554 E-5
Q557 G-5
Q558 F-5
Q559 G-5
Q560 F-5
Q561 G-5
Q562 F-5
Q564 F-5
Q565 H-5
Q567 F-5
IC401 G-4
IC402 F-3
IC403 F-4
IC404 F-4
IC406 D-1
IC407 G-4
IC408 G-4
IC409 G-5
IC411 F-3
IC412 G-4
IC501 H-5
IC502 H-5
IC503 F-5
IC504 G-5
IC505 C-5
IC506 C-5
IC507 H-5
IC509 C-5
IC512 D-6
IC520 E-5
IC
TP
IC406 F-1
IC503 D-5
IC504 C-5
IC509 G-5
IC512 F-6
IC
Q404 G-1
Q406 G-2
Q412 G-3
Q413 G-3
Q430 B-3
Q431 D-3
Q432 C-3
Q434 B-4
Q436 B-4
Q505 F-5
Q507 G-5
Q518 D-4
Q519 D-5
Q527 F-5
TRANSISTOR
TH-37PHD8GK / TH-37PHD8GS / TH-37PHD8UK / TH-42PHD8GK / TH-42PHD8GS / TH-42PHD8UK
