Panasonic TH-65PF9UK - Removal of the P-Board; Removal of the SU-Board and the SD-Board

5. Disconnect the coupler(D25).
6. Remove the flexible cables from the couplers (D31, D32,
D33, D34, D35, D36).
7. Remove the 4 screws and then remove the D-Board.

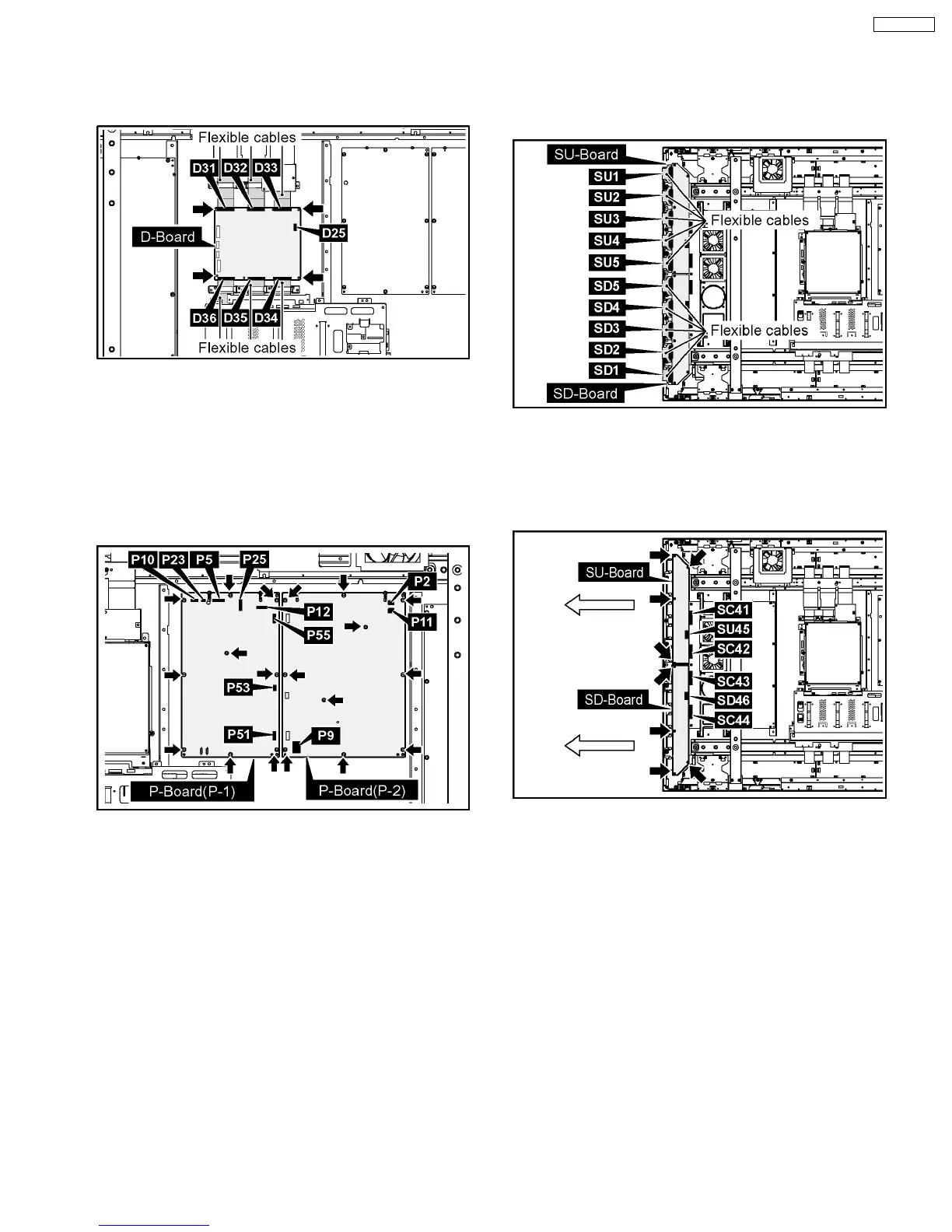

6.9. Removal of the P-Board
Please exchange fuse (F1601,F1602) at the same time
when you exchange P-Board.
The fuse is not bundled to P-Board for the repair.
1. Disconnect the couplers (P2, P5, P9, P10, P11, P12, P23,
P25, P51, P53, P55).
2. Remove the 19 screws and then remove the P-Board.
6.10. Removal of the SU-Board and
the SD-Board
1. Remove the flexible cables from the couplers (SU1, SU2,
SU3, SU4, SU5, SD1, SD2, SD3, SD4, SD5).
2. Disconnect the couplers (SU45, SD46).
3. Remove the each 4 screws.
4. Slide the SU-Board and the SD-Board to the left, remove
the SU-Board and the SD-Board from the couplers (SC41,
SC42, SC43, SC44).
Note:
The handling of a connector connecting with SC45-
SU45 and SC46-SD46 must note enough.
(DISCONNECTION and TRANSFORMATION,etc.)
11
TH-65PF9UK
