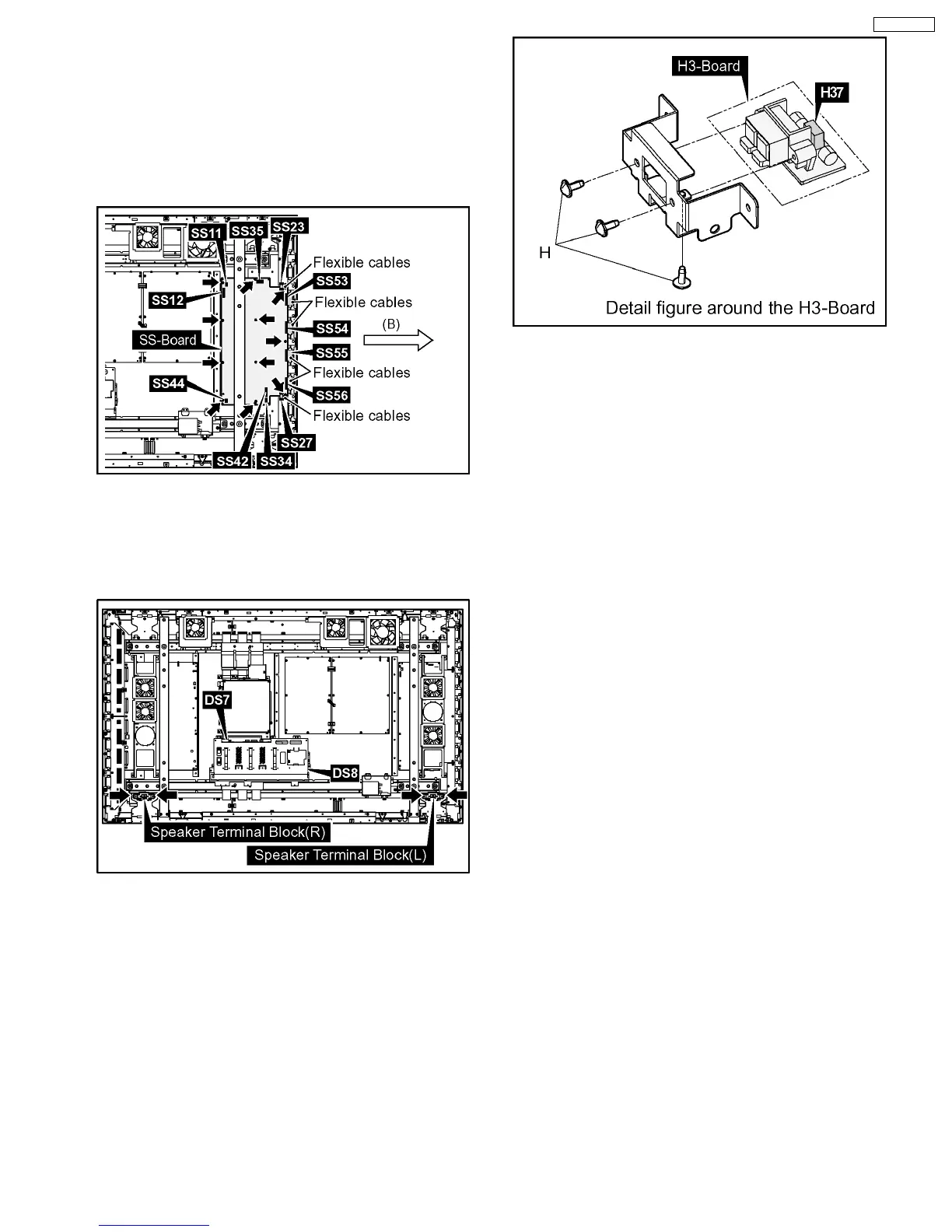

5. Remove the 11 screws of the SS-Board and slide the SS-
Board in the direction of the arrow (B) and then remove the
SS-Board.
Note:
Remove the SS-Board not to damage the flexible cables
of the Plasma Panel and parts on the SS-Board.
6.14. Removal of the H3-Board
(L), (R)
1. Remove the each 2 screws and then remove the Speaker
Terminal Blocks (L), (R).
2. Disconnect the coupler (H37).
3. Remove the 3 screws (H) and then remove the H3-Board.
