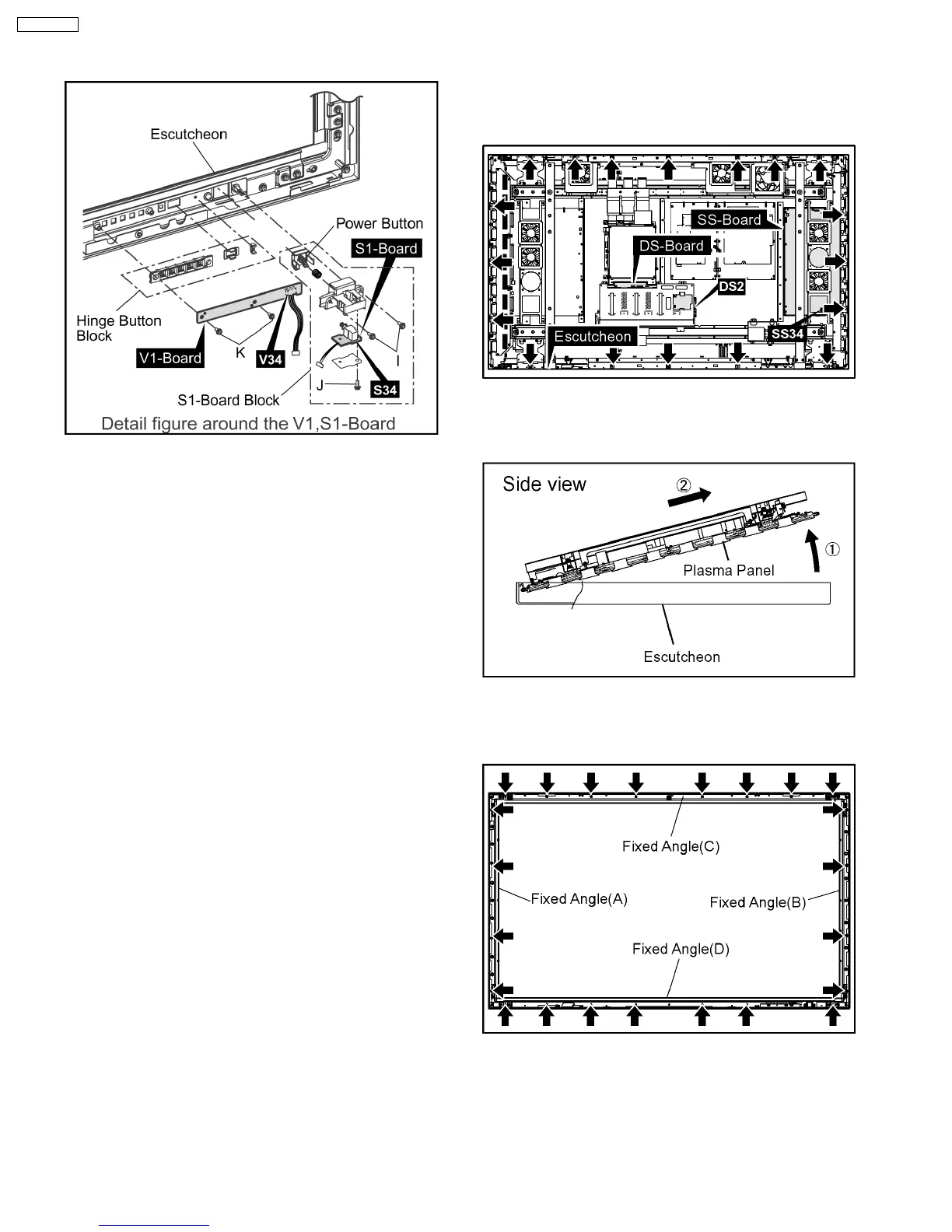

10. Remove the Hinge Button Block from the Escutcheon.
6.18. Removal of the Escutcheon
and the Front Glass
1. Disconnect the couplers (DS2, SS34).
2. Remove the 18 screws.
3. Lift up the bottom of the Plasma Panel in the direction of the
arrow1 and pull the Plasma Panel in the direction of the
arrow2 and then remove the Plasma Panel.
4. Remove the each 23 screws and remove the fixed Angles
(A), (B), (C), (D).
5. Remove the Front Glass.
