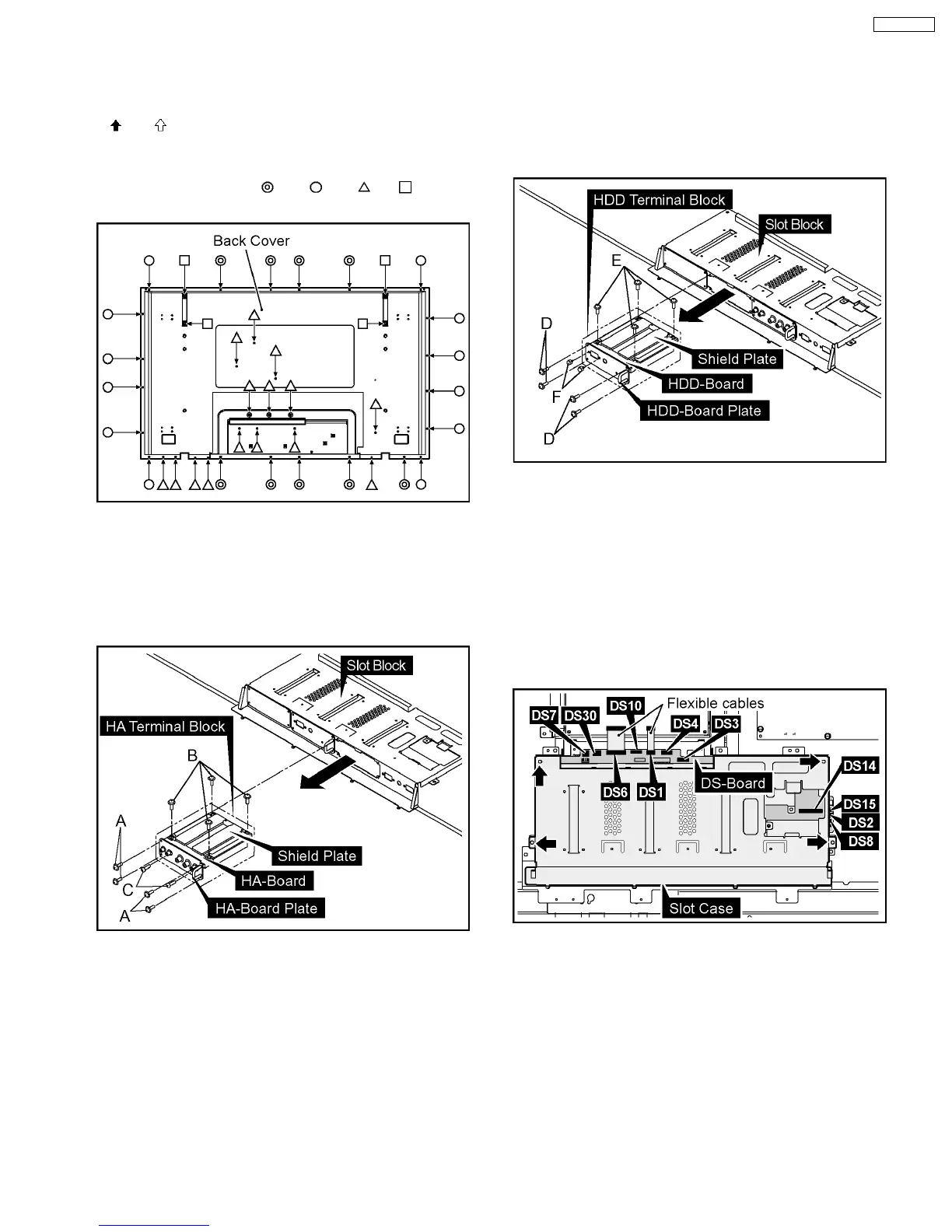

6 Disassembly
· To disassemble P.C.B., wait for 1 minute after power was
off for discharge from electrolysis capacitors.
·
and marks indicate screw positions.
6.1. Removal of the Back Cover
1. Remove the screws (×9 , ×12 , ×15 ,×4 ) and then
remove the Back Cover.
6.2. Removal of the HA-Board
1. Remove the 4 screws (A) and then remove the HA Terminal
Block.
2. Remove the 4 screws (B).
3. Remove the 2 screws (C) and then remove the HA-Board.
6.3. Removal of the HDD-Board
1. Remove the 4 screws (D) and then remove the HDD
Terminal Block.
2. Remove the 4 screws (E).
3. Remove the 2 Hexagonal-Head screws (F) and then
remove the HDD-Board.
6.4. Removal of the DS-Board
1. Remove the HA Terminal Block and the HDD Terminal
Block.
(Reference to Removal of the HA-Board and the HDD-
Board)
2. Remove the flexible cables from the couplers (DS1, DS6).
3. Disconnect the couplers (DS2, DS3, DS4, DS7, DS8,
DS10, DS14, DS15, DS30).
4. Remove the 4 screws and then remove the Slot Case.
