Panasonic TH-65PF9UK - Power Led Blinking Timing Chart

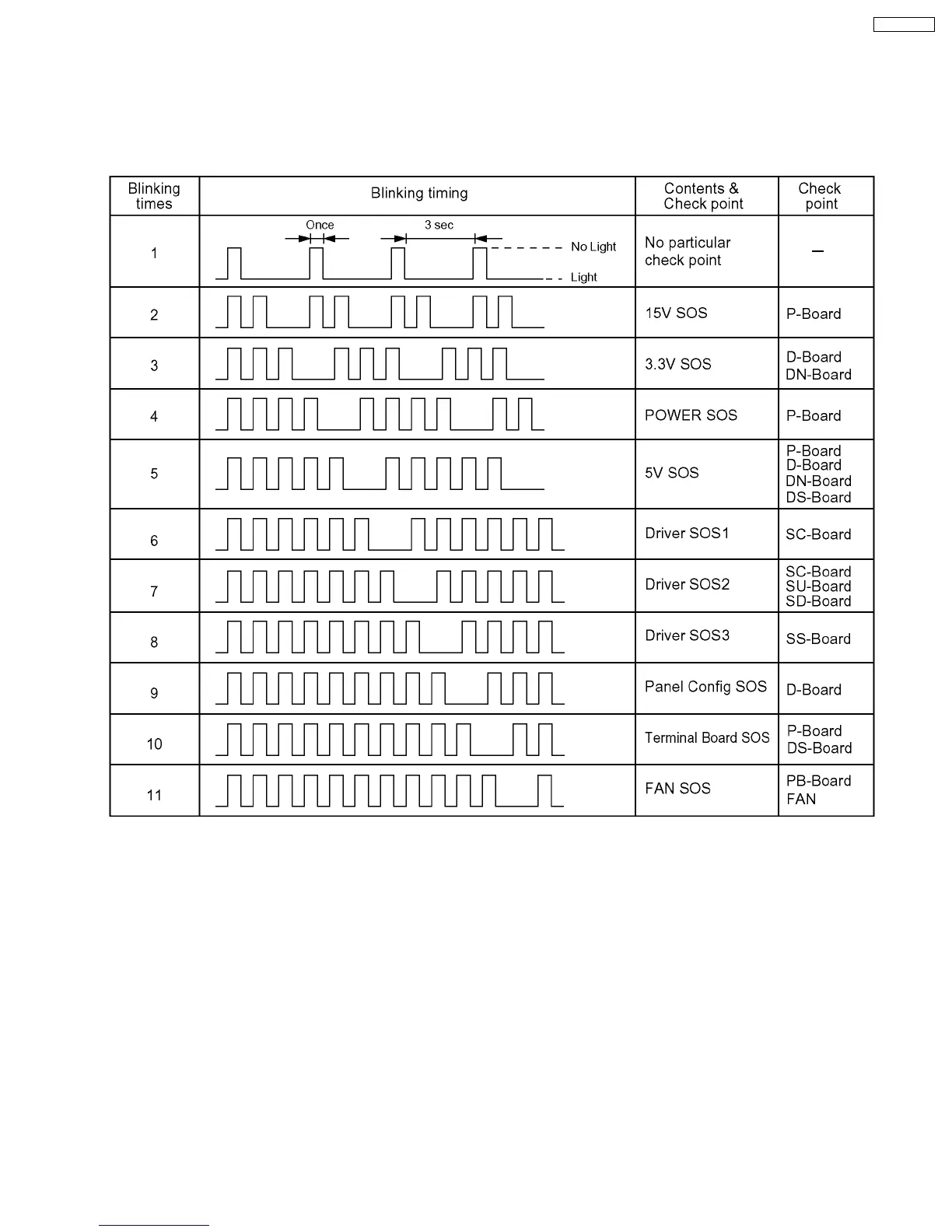

11.1.2. Power LED Blinking timing chart
1. Subject
Information of LED Blinking timing chart.
2. Contents
When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
3. Remarks
Above Fan function is operated during the fans are installed.
39
TH-65PF9UK
