Panasonic TH-65PF9UK - 5 Service Hint

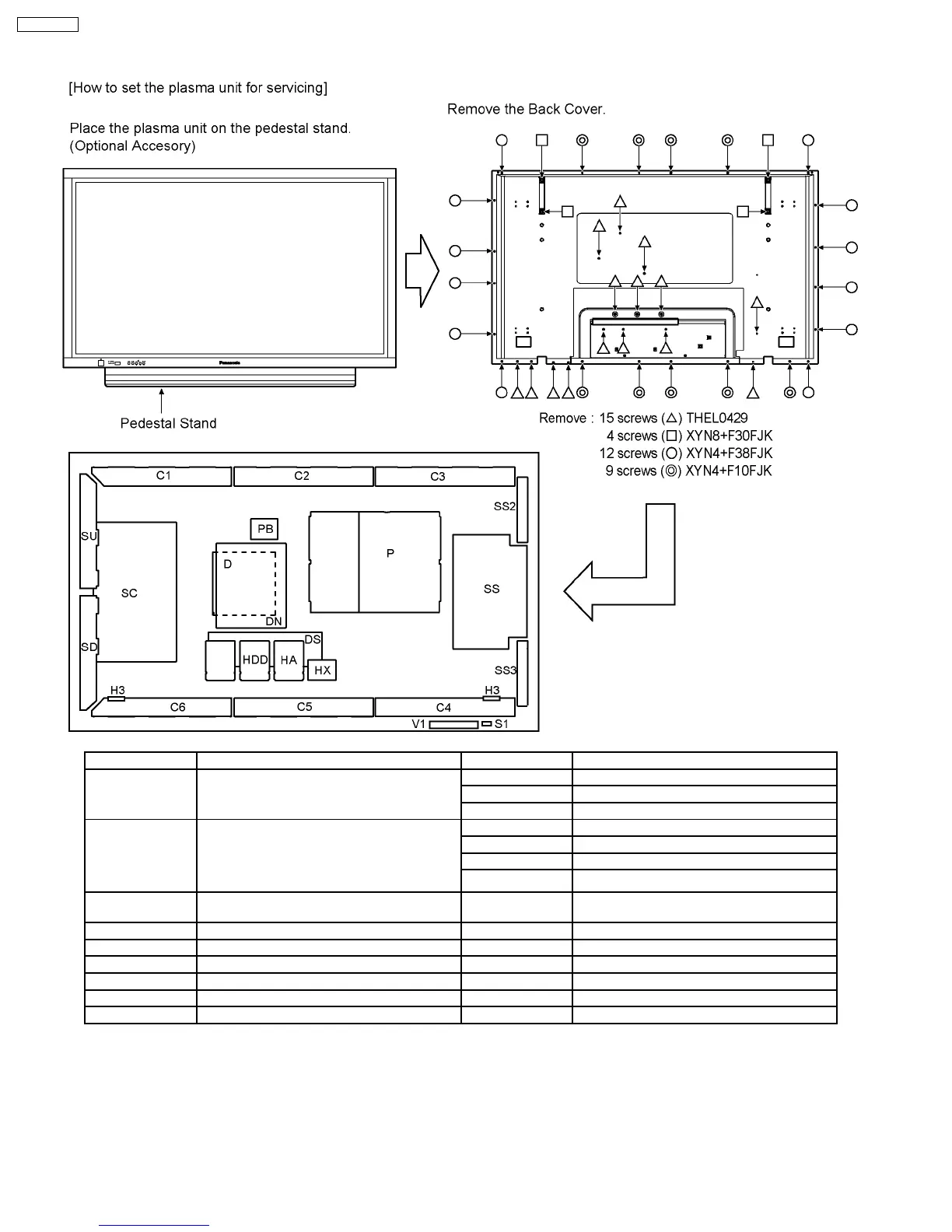

5 Service Hint
Board Name Function Board Name Function
D Digital Signal Processor,
Format Converter,
Plasma AI Processor
C4 Data Drive (Lower Left)
C5 Data Drive (Lower Center)
C6 Data Drive (Lower Right)
DS Slot Interface (Audio / Video / Sync Input
Switch),
SYNC Processor, Audio Processor,
Speaker Out Amplifier,
DC-DC Converter
H3 Speaker Terminal
S1 Power Switch
SS2 Sustain Out (Upper)
SS3 Sustain Out (Lower)
SS Sustain Drive V1 LED (Stand-By / Power On) & Remote
Receiver, Key Scan
SC Scan Drive PB Fan Control
SU Scan Out (Upper) P Line Filter, Power Supply
SD Scan Out (Lower) HX PC / RS-232C
C1 Data Drive (Upper Right) HA BNC Component Video
C2 Data Drive (Upper Center) DN Dital Signal Processor, Micon
C3 Data Drive (Upper Left) HDD DVI-D Terminal
Note:
Extension cable kit for Slot Board is supplied as service fixtures and tools.
(Part No. TZSC07040)
8
TH-65PF9UK
