Panasonic TH-65PF9UK - Removal of the C1, C2, C3, C4, C5 and the C6-Board

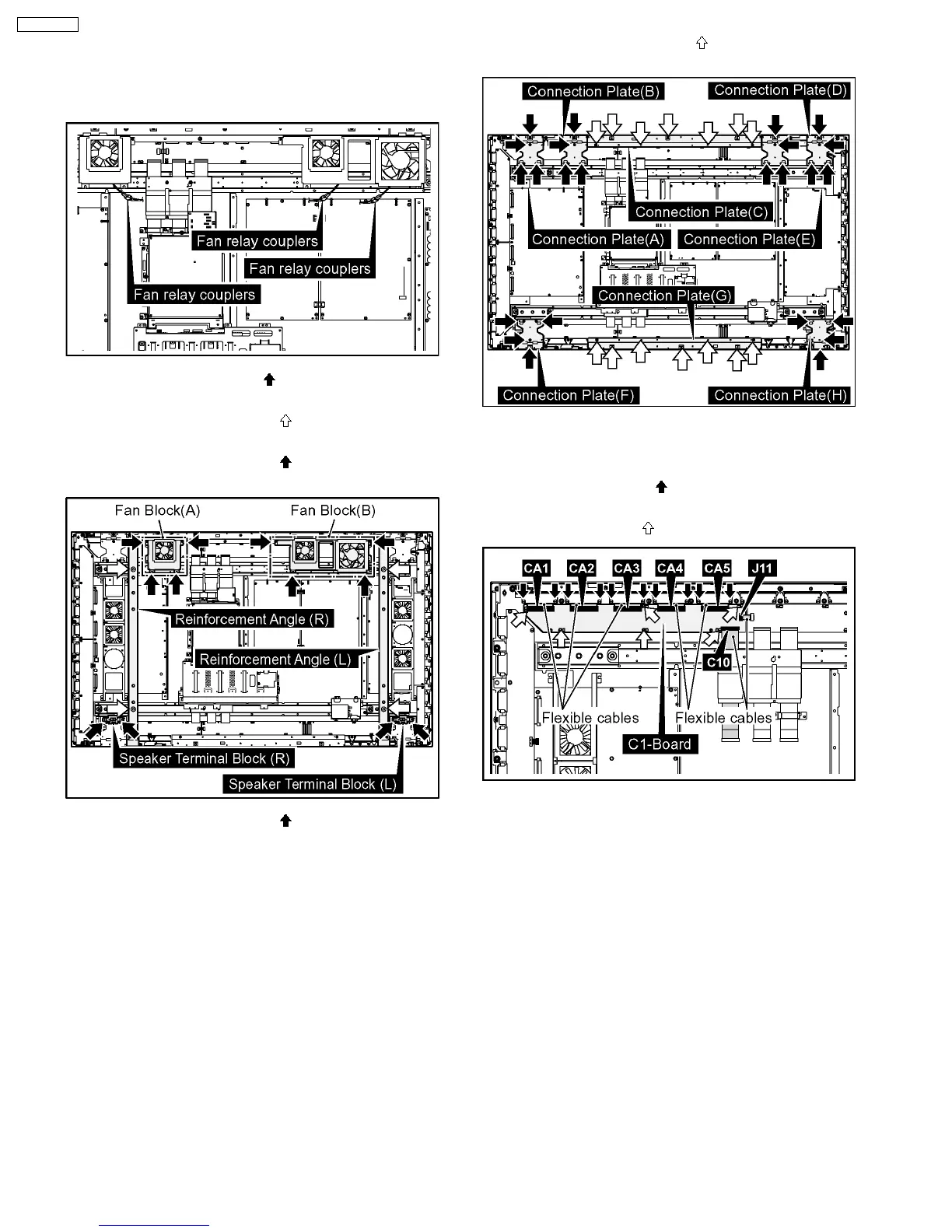

6.15. Removal of the C1, C2, C3, C4,
C5 and the C6-Board
1. Disconnect the 3 fan relay couplers.
2. Remove the each 4 screws ( ) and then remove the Fan
Blocks (A), (B).
3. Remove the each 2 screws (
) and then remove the
Speaker Terminal Blocks (L), (R).
4. Remove the each 2 screws (
) and then remove the
Reinforcement Angles (L), (R).
5. Remove the each 4 screws ( ) and then remove the
Connection Plates (A), (B), (D), (E), (F), (H).
6. Remove the each 7 screws (
) and then remove the
Connection Plates (C), (G).
6.15.1. Removal of the C1-Board
1. Remove the flexible cables from the couplers (C10, C11).
2. Remove the 10 screws (
) and then remove the flexible
cables from the couplers (CA1, CA2, CA3, CA4, CA5).
3. Remove the 6 screws (
) and then remove the C1-Board.
14
TH-65PF9UK
