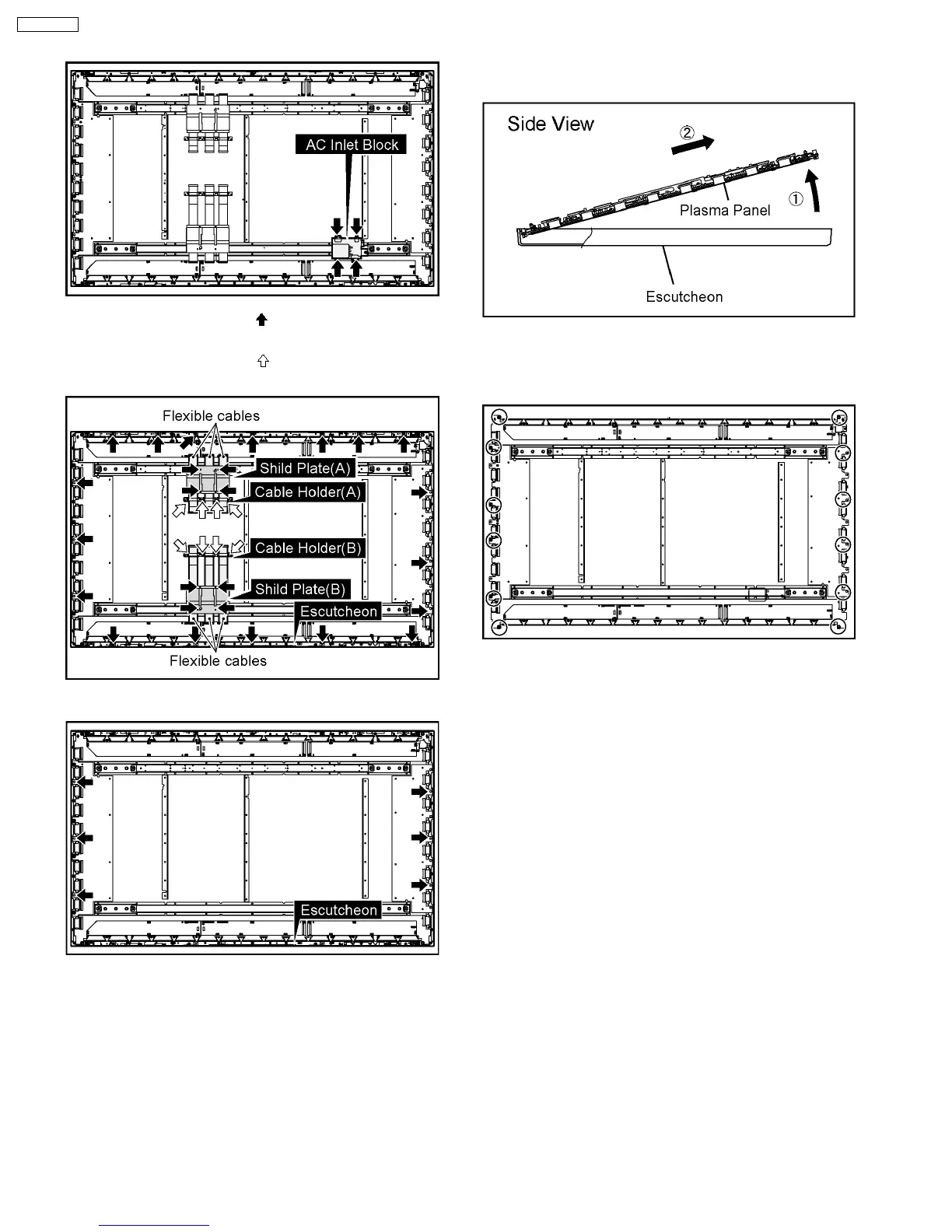

30. Remove the 4 screws and then remove the AC Inlet Block.
31. Remove the each 4 screws ( ) and then remove the Shield
Plates (A, B).
32. Remove the each 4 screws (
) and then remove the Cable
Holders (A, B) and the flexible cables.
33. Remove the 6 screws of the Escutcheon.
34. Lift up the bottom of the Plasma Panel in the direction of the
arrow1 and pull the Plasma Panel in the direction of the
arrow2 and then remove the Plasma Panel.
35. Remove the 12 Spacers and Spacer Rings from the Plasma
Panel.
36. Remove the Plasma Panel.
Caution
· Please confirm the installation place of Spacer and
Spacer Ring when you exchange the Plasma Panel,
and install Spacer and Spacer Ring in an original
installation place after exchanging the Plasma
Panel.
