Chapter 12
DA7 Users’ Guide
12
-
12
12
D-I/O
[SLOT3]
Mode
In mode, [SLOT 3] is similar to [SLOT 1] and [SLOT 2].
Mode
The insertion mode allows you to send a signal to an external device
(using either the ADAT, TDIF, AES or AD/DA cards). You would then
route this signal to any outboard device, and return it to the DA7 via
SLOT 3 (using either the ADAT, TDIF, AES or AD/DA cards). You can
return to aux returns 1 through 6, buses 1 through 8, or MASTER L/R.
See Chapter 17, Options for more details.

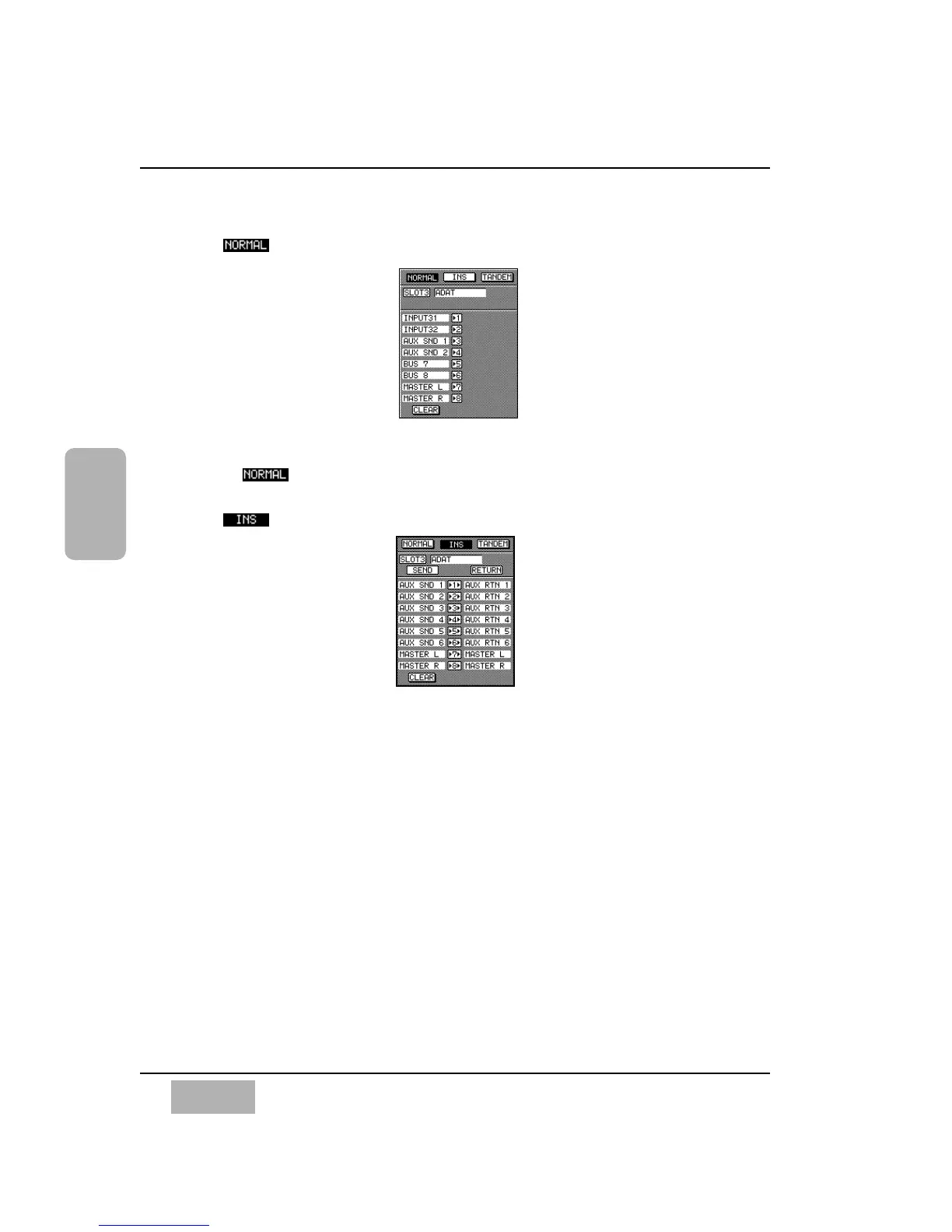

SLOT 3 in INS Mode
SLOT 3 in NORMAL Mode
