3-2 Module B, Onboard Signal Processing
Each of the 32 input channels, the 8 buses and the MASTER L/R output of
the DA7 has the option of inserting a 4-band Parametric Equalizer with
various filter types. There is also a Dynamics Processor on these same
channels that offers you a choice of GATE + COMPRESSOR or
EXPANDER. There is also a 0 to 300 ms Delay Processor for each of the 32
input channels. AUX 1-6 Returns have a 2 band Parametric Equalizer.

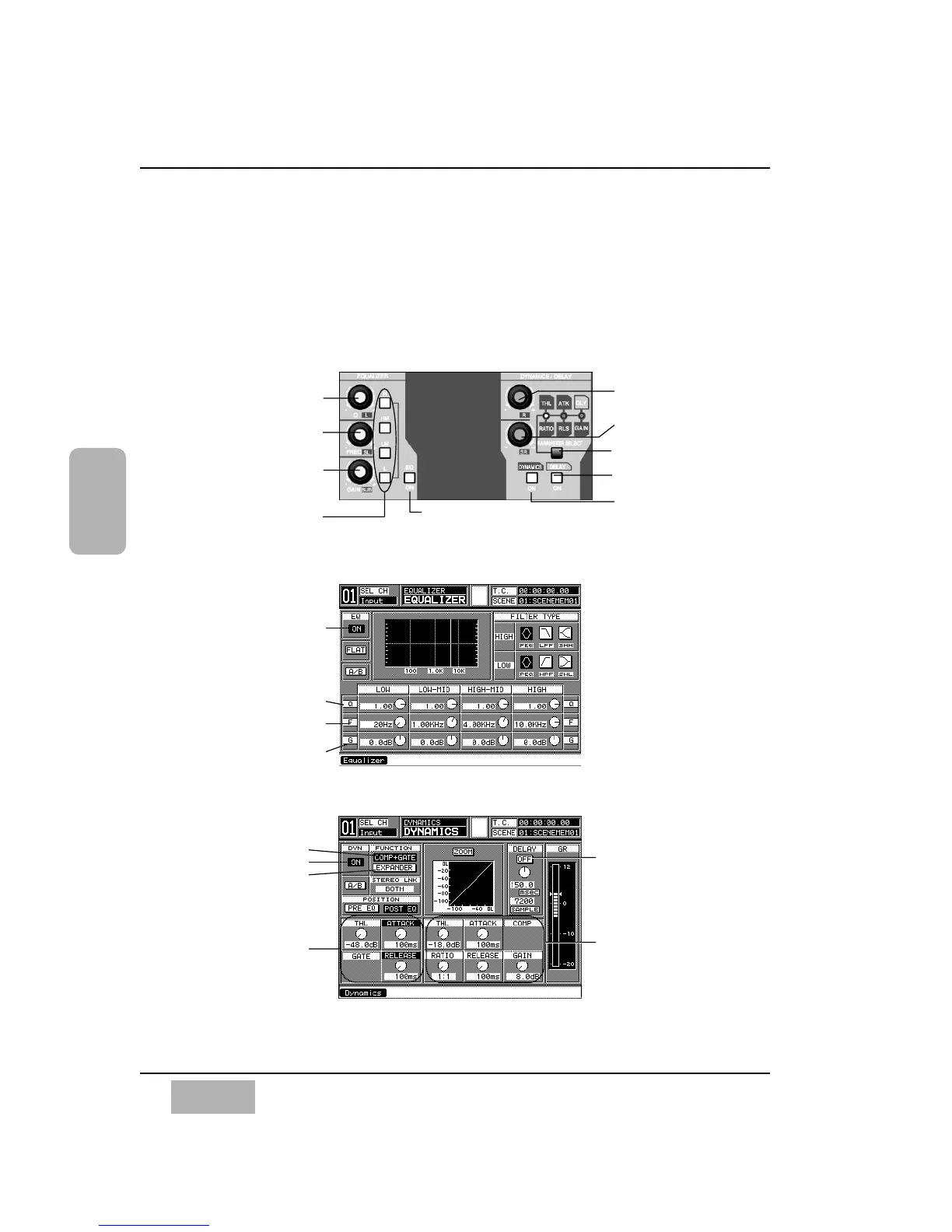

THL/ATK/DLY knob
RATIO/RLS/GAIN knob
Parameter select button
DELAY ON LED button
DYNAMICS ON LED button
Q factor knob
FREQ(frequency)
knob
GAIN knob
Frequency band
LED buttons
EQ ON button
Q factor adjustment soft knobs
F (frequency) adjustment soft
knobs
G (gain) adjustment soft knobs
COMP+GATE button
DYNAMICS ON/OFF button
EXPANDER button
GATE area
_
has controls
for threshold, attack and
release.
COMPRESSION area
_
has
controls for threshold, ratio,
attack, release, and gain.
EQ ON/OFF LED button
Equalizer Window
Dynamics Window
DELAY ON/OFF button
Top Panel Sections
