Chapter 5
DA7 Users’ Guide
5
-
17
5
Channels,
Library, & Meters
5-4 METER Group Windows
[INPUT 1-32] Meter Window
Pressing the button on the Top Panel displays the last window
used from the [METER] group, ([INPUT 1-32], [BUS/AUX], or [SLOT]).
Repeated presses of the button will display the windows in this
order.
This window shows the meters for the 32 input channels and allows for level
adjustments.
[INPUT 1-16], [INPUT 17-32] Areas
These areas show the signal input levels of all 32 channels simultaneously.
[PK Lvl] Area
This data field, below the individual channel level meters, displays a numeric
peak value when [PEAK HOLD] is .
[RESPONSE] Area
Select meter response of either or . See Glossary for additional
information.
[POSITION] Area
Cursor to the button, and press the ENTER button to meter the point
immediately after analog-to-digital conversion before processing an input
signal. Cursor to the button, and press the ENTER button to meter
the point immediately before the channel ON LED button. Cursor to the
button, and press the ENTER button to meter the point after the
Channel Fader.
ON
METER
METER

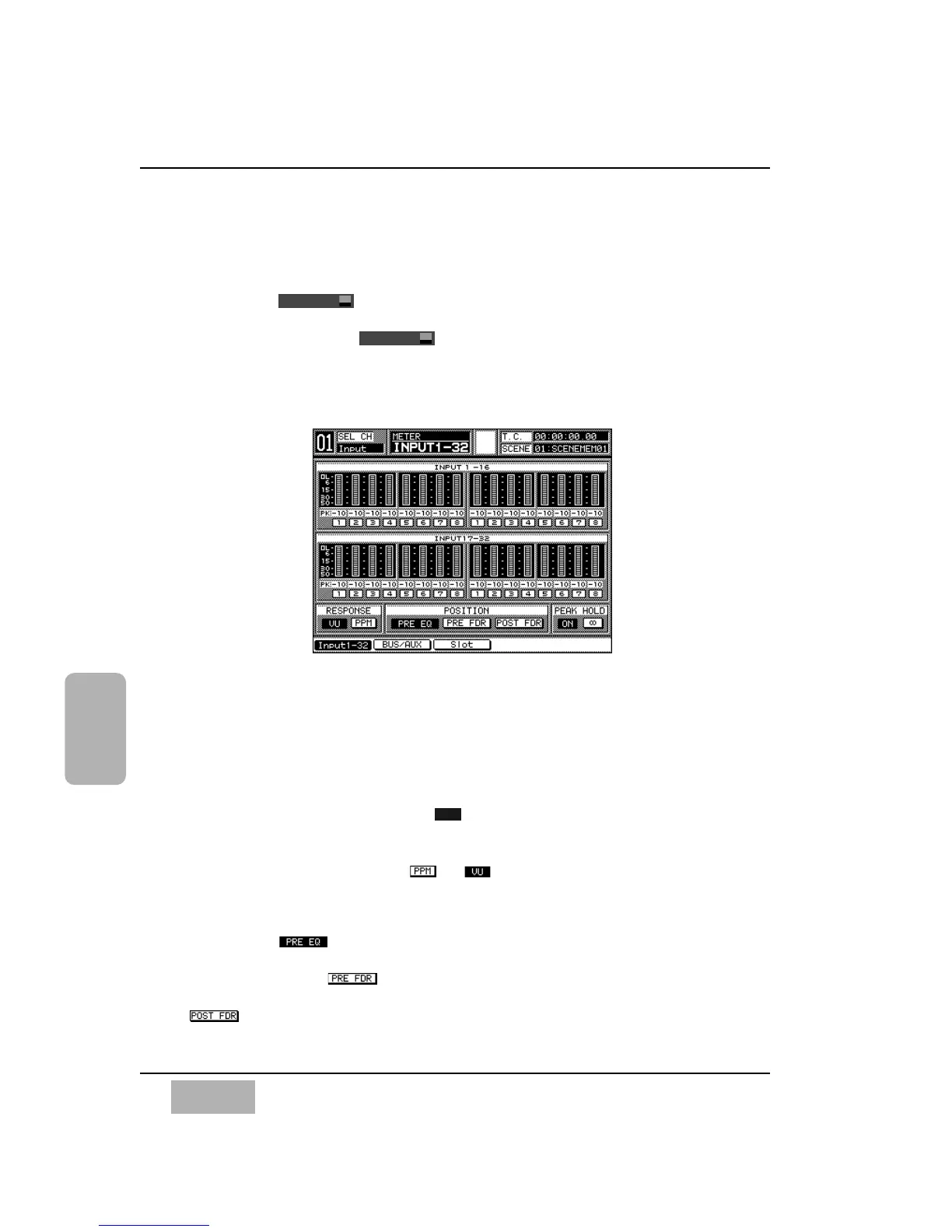

INPUT 1-32 Meter Window
